AIR CONDITIONING UNIT (for Hatchback): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

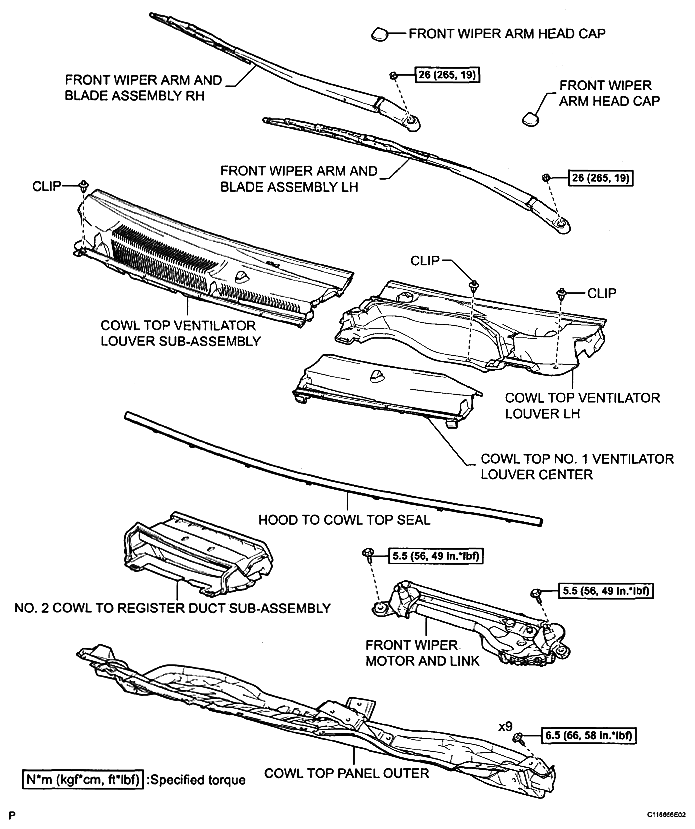

Fig 1: Air Conditioning Unit Replacement Components With Torque Specifications (1 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

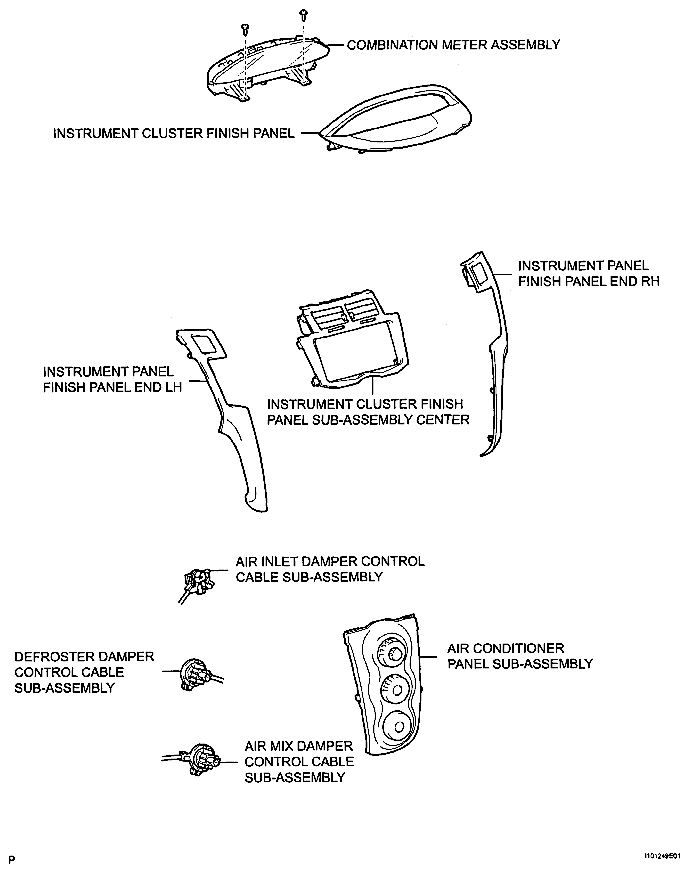

Fig 2: Identifying Air Conditioning Unit Components (2 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Air Conditioning Unit Components (3 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Blower Unit (For Hatchback) Replacement Components With Torque Specifications (4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

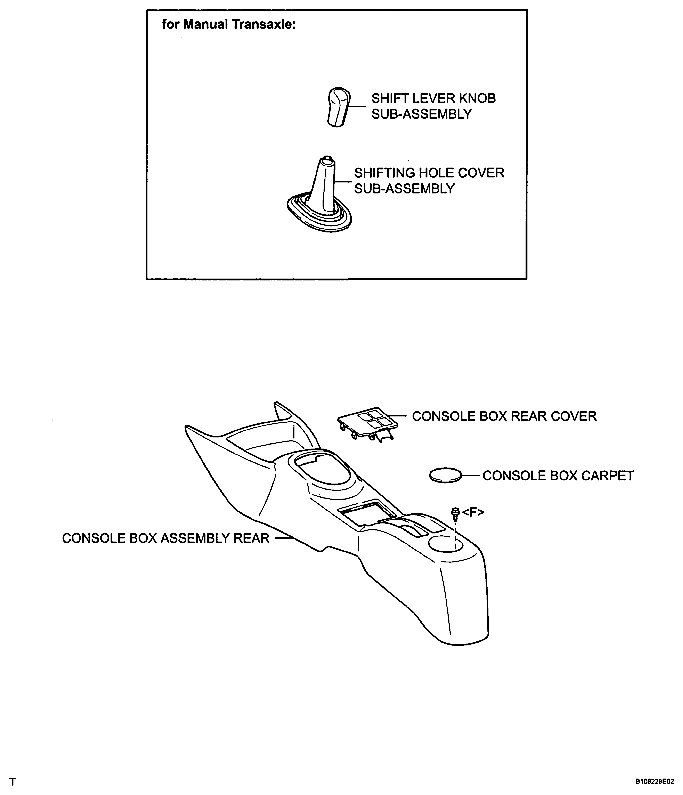

Fig 5: Identifying Air Conditioning Unit Components (5 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying Air Conditioning Unit Components (6 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Identifying Air Conditioning Unit Components (7 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Blower Unit (For Hatchback) Replacement Components With Torque Specifications (8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Blower Unit (For Hatchback) Replacement Components With Torque Specifications (9 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

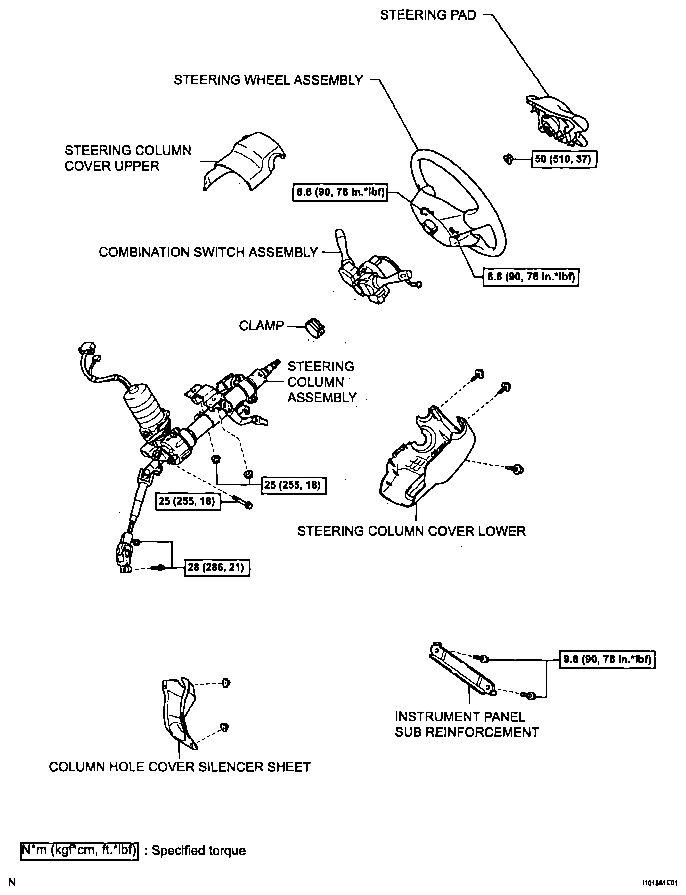

Fig 10: Blower Unit (For Hatchback) Replacement Components With Torque Specifications (10 Of 13)

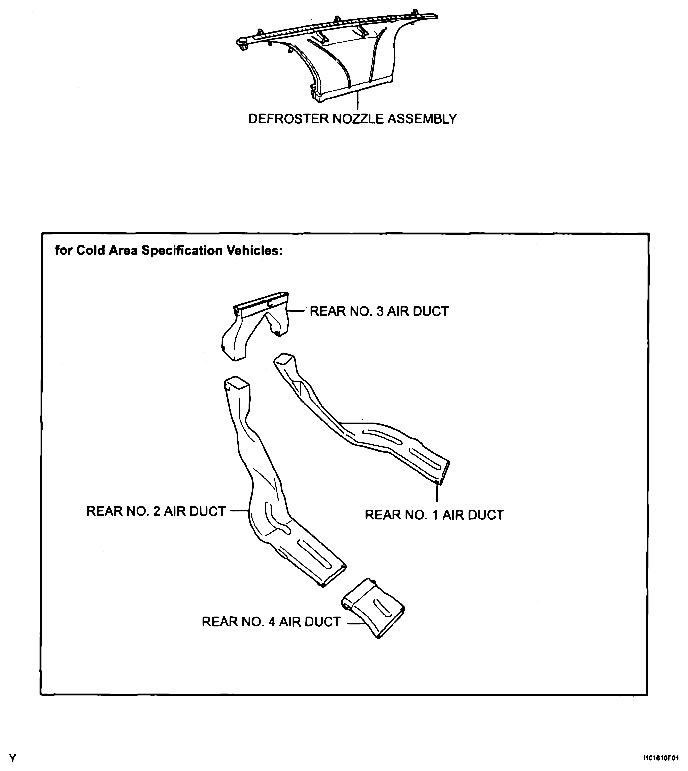

Fig 11: Identifying Air Conditioning Unit Components (11 Of 14)

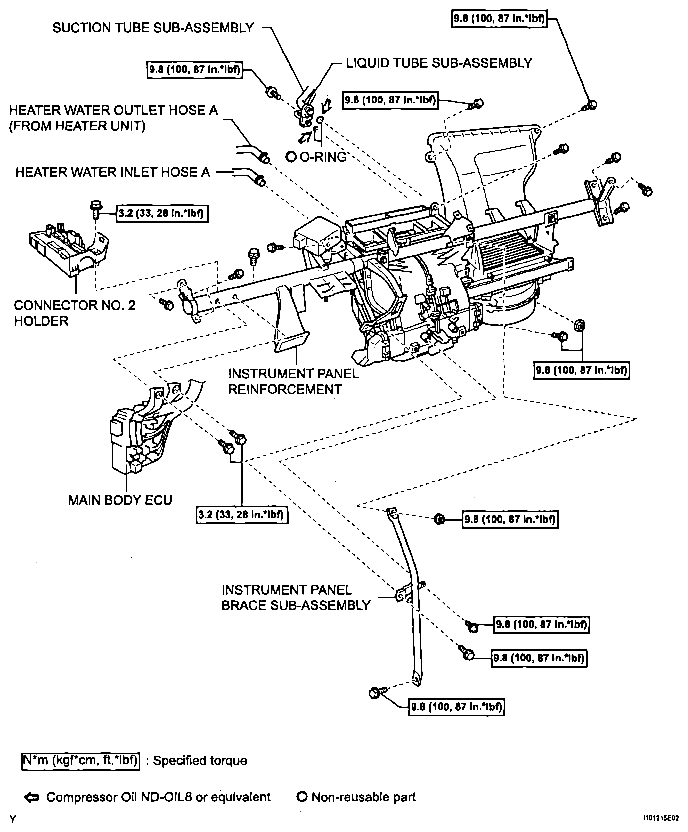

Fig 12: Blower Unit (For Hatchback) Replacement Components With Torque Specifications (11 Of 13)

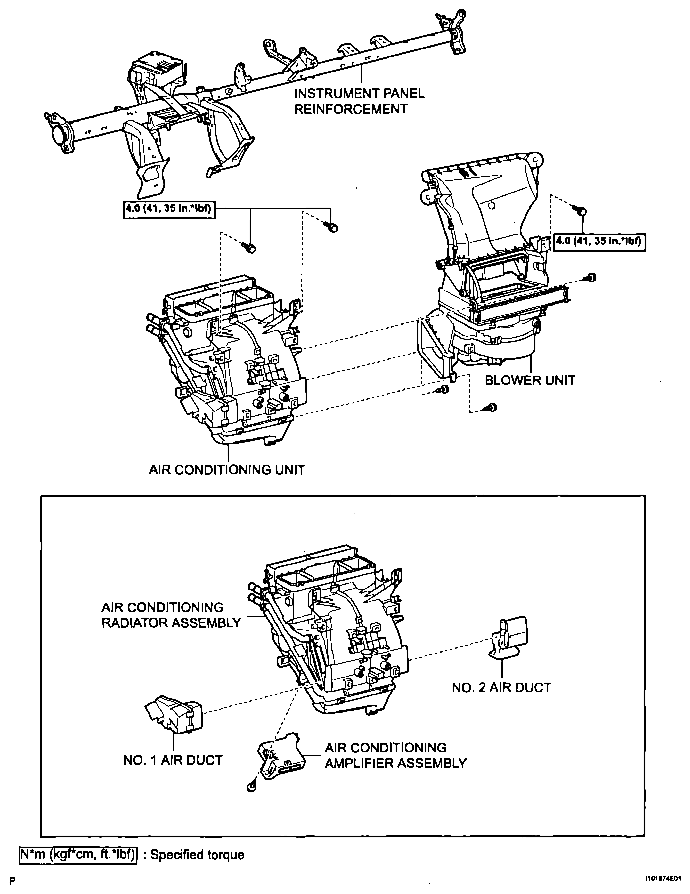

Fig 13: Air Conditioning Unit Replacement Components With Torque Specifications (13 Of 14)

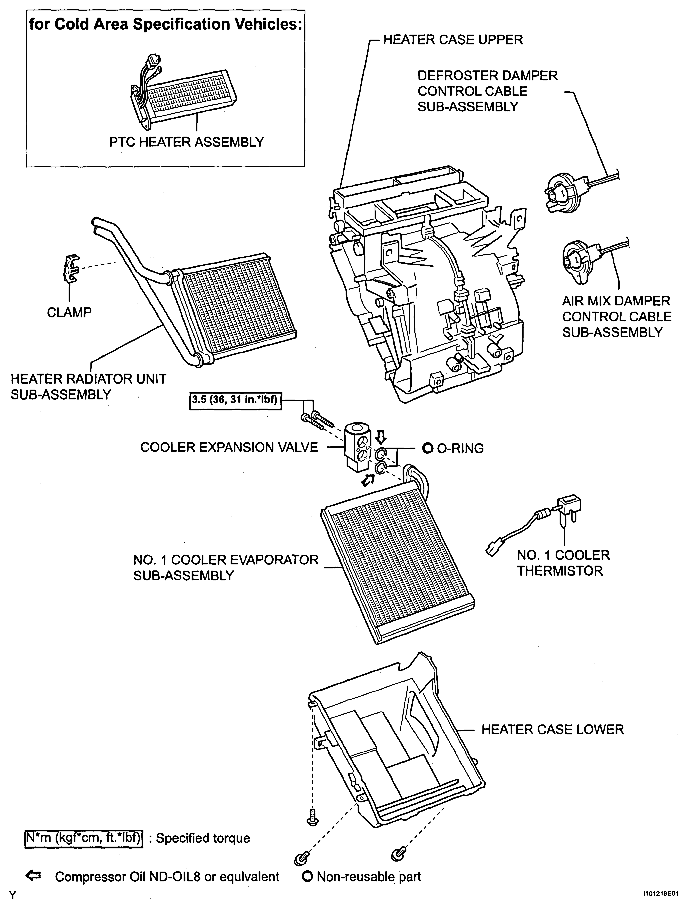

Fig 14: Air Conditioning Unit Replacement Components With Torque Specifications (14 Of 14)
