AIR CONDITIONING PANEL ASSEMBLY (for Hatchback): Removal

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE INSTRUMENT PANEL FINISH PANEL END LH  (See REMOVAL )
  3. REMOVE INSTRUMENT PANEL FINISH PANEL END RH  (See REMOVAL )
  4. REMOVE INSTRUMENT CLUSTER FINISH PANEL  (See REMOVAL )
  5. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER
    1. Disengage the 2 claws and 4 clips and remove the instrument cluster finish panel center.
      NOTE:
      • Grip the rib portion of the instrument cluster finish panel center by hand to remove it.
      • To avoid breakage of the instrument cluster finish panel center when removing it, do not apply excessive force to the register or pull out the rink or panel portions.

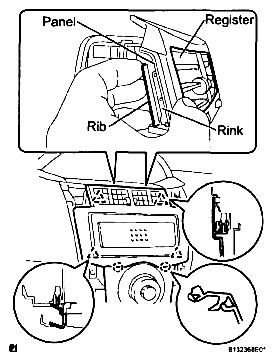

        Fig 1: Removing Instrument Cluster Finish Panel Center
        G04829904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE AIR CONDITIONING PANEL ASSEMBLY
    1. Disengage the 3 clips and 2 claws and remove the air conditioning panel.
      Fig 2: Removing Air Conditioning Panel
      G04829905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 3 connectors and the clamp.
      Fig 3: Disconnecting Connectors And Clamp
      G04829906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. DISCONNECT AIR MIX DAMPER CONTROL CABLE SUB-ASSEMBLY
    1. Disconnect the air mix control cable from the clamp.
    2. Disengage the 2 claws and disconnect the air mix damper control cable.
      Fig 4: Disconnecting Air Mix Damper Control Cable
      G04829907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. DISCONNECT DEFROSTER DAMPER CONTROL CABLE SUB-ASSEMBLY
    1. Disengage the 2 claws and disconnect the defroster damper control cable.
      Fig 5: Disconnecting Defroster Damper Control Cable
      G04829908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. DISCONNECT AIR INLET DAMPER CONTROL CABLE SUB-ASSEMBLY
    1. Disengage the 2 claws and disconnect the air inlet damper control cable.
      Fig 6: Disconnecting Air Inlet Damper Control Cable
      G04829909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
