ROOF HEADLINING (for Hatchback 3 Door): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

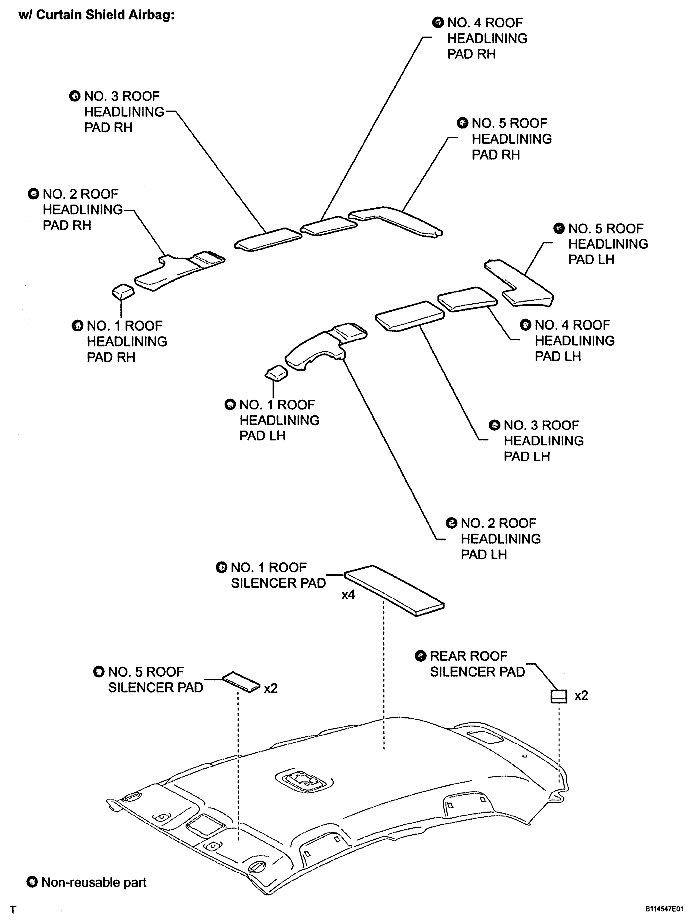

Fig 1: Identifying Roof Headlining Components - Hatchback 3 Door (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

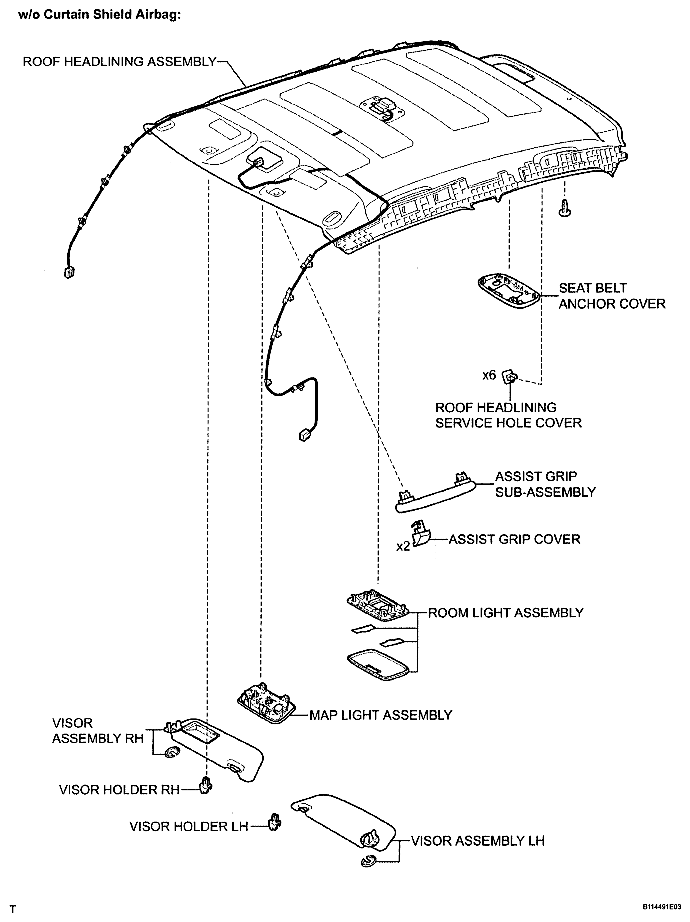

Fig 2: Roof Headlining Replacement Components - Hatchback 3 Door (2 Of 12) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

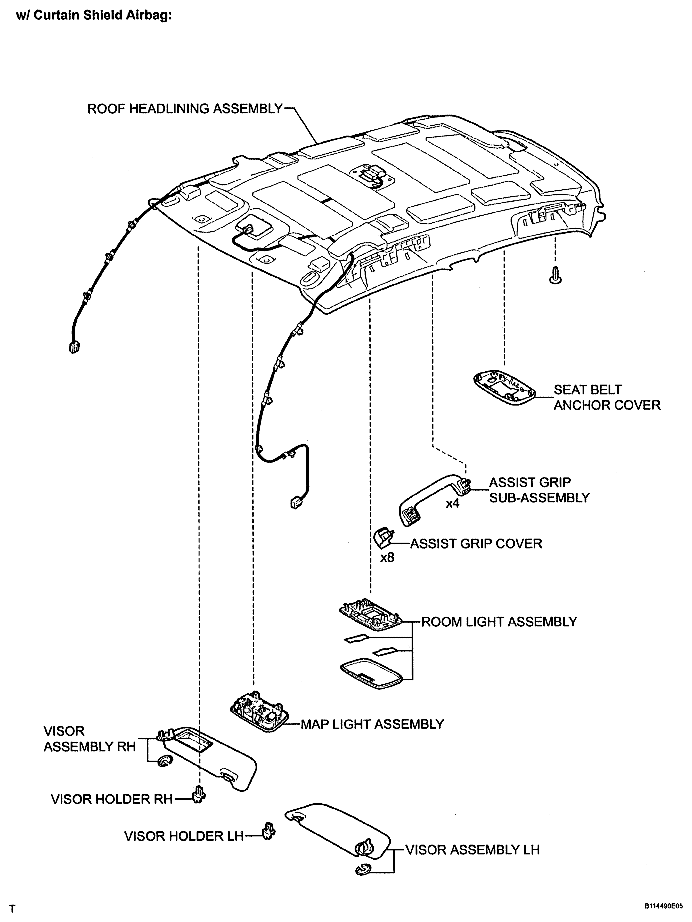

Fig 3: Identifying Roof Headlining Components - Hatchback 3 Door (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

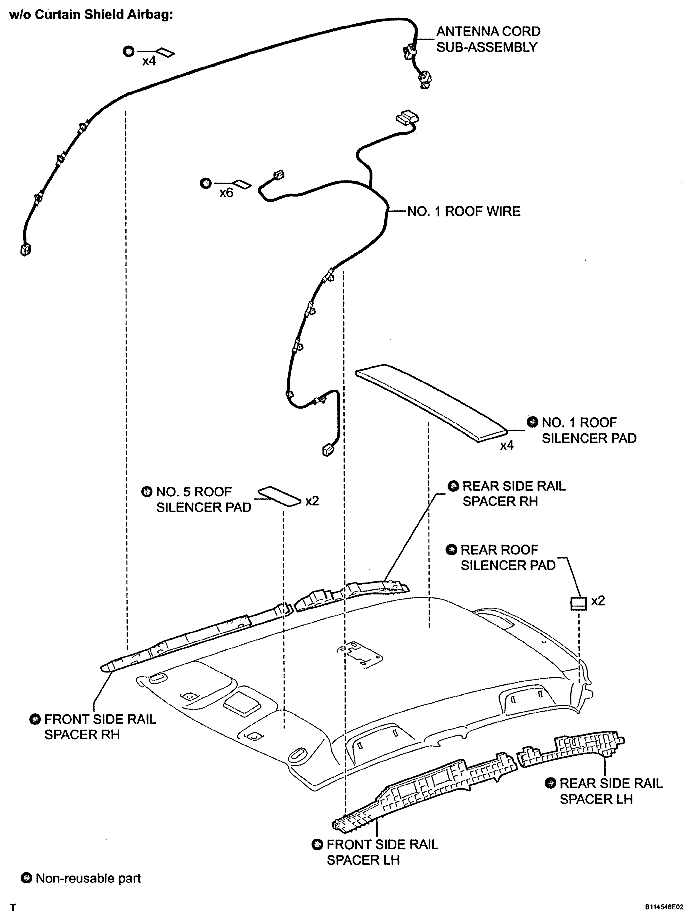

Fig 4: Identifying Roof Headlining Components - Hatchback 3 Door (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

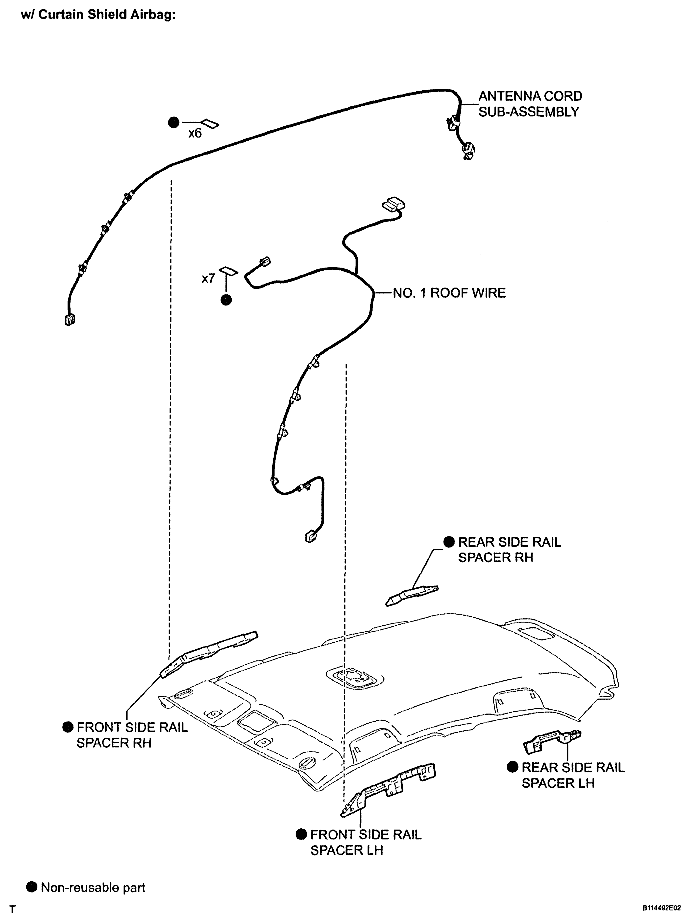

Fig 5: Roof Headlining Replacement Components - Hatchback 3 Door (5 Of 12) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

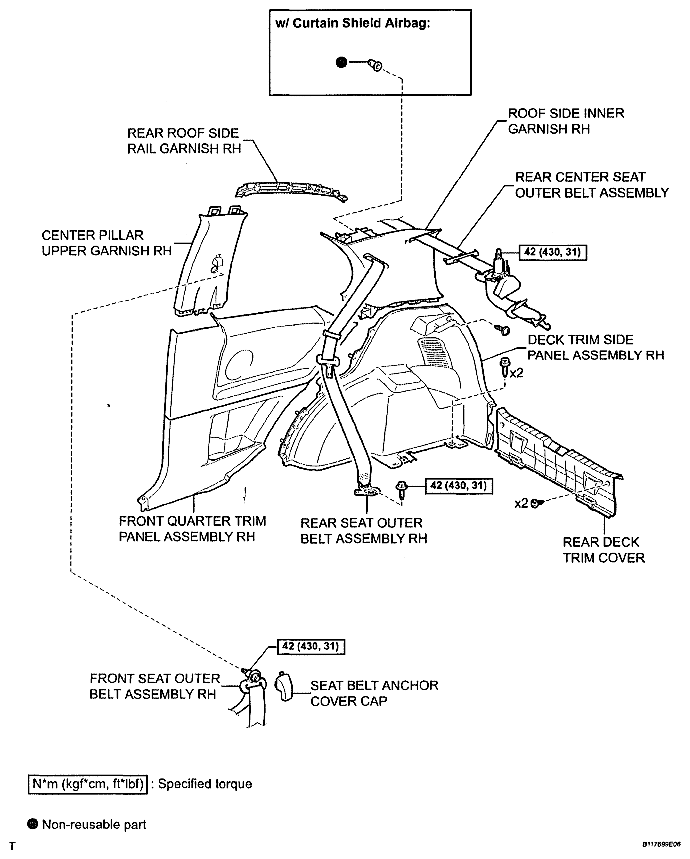

Fig 6: Roof Headlining Replacement Components - Hatchback 3 Door (6 Of 12) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Roof Headlining Replacement Components - Hatchback 3 Door (7 Of 12) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Identifying Roof Headlining Components - Hatchback 3 Door (8 Of 12)

Fig 9: Identifying Roof Headlining Components - Hatchback 3 Door (9 Of 12)

Fig 10: Identifying Roof Headlining Components - Hatchback 3 Door (10 Of 12)

Fig 11: Identifying Roof Headlining Components - Hatchback 3 Door (11 Of 12)

Fig 12: Identifying Roof Headlining Components - Hatchback 3 Door (12 Of 12)
