REAR PACKAGE TRAY SPEAKER (for Sedan): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

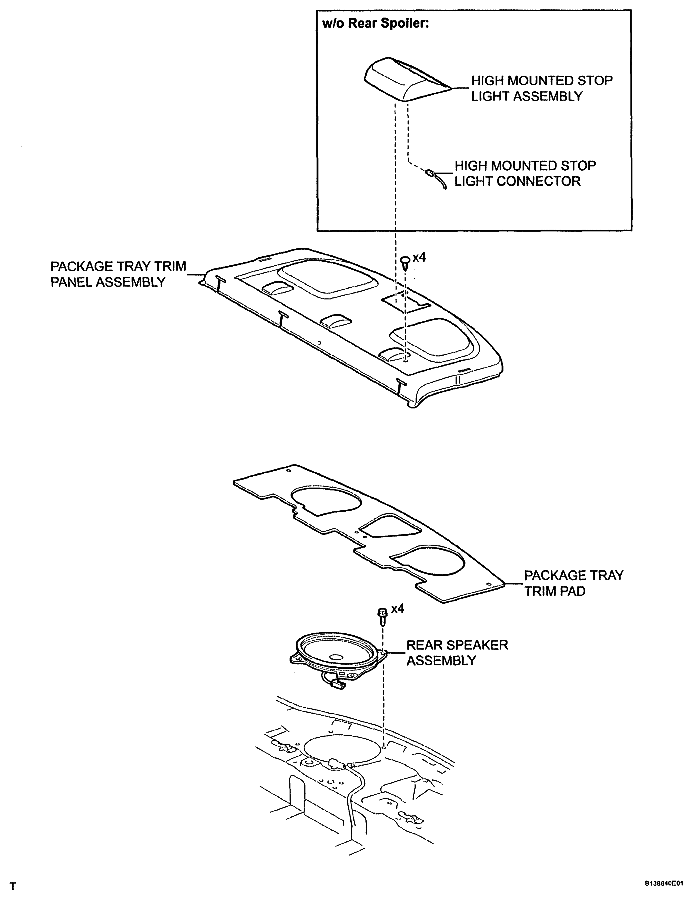

Fig 1: Rear Speaker Replacement Components With Torque Specifications - For Sedan (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Rear Speaker Replacement Components With Torque Specifications - For Sedan (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Rear Speaker Components - For Sedan (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Rear Speaker Components - For Sedan (4 Of 5)

Fig 5: Identifying Rear Speaker Components - For Sedan (5 Of 5)
