QUARTER TRIM SPEAKER (for Hatchback 3 Door): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

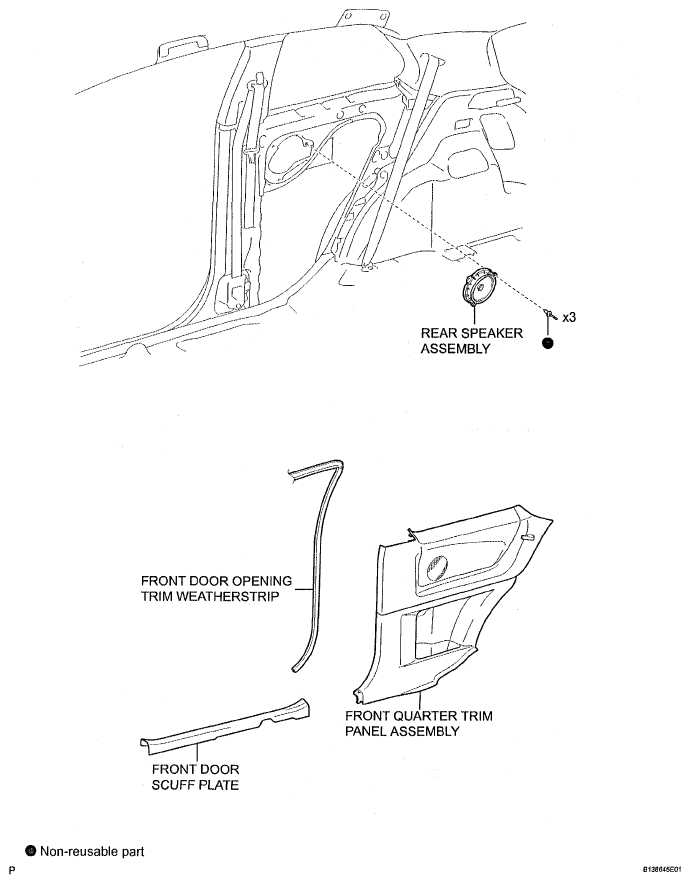

Fig 1: Identifying Rear Speaker Components - For Hatchback 3 Door (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Rear Speaker Replacement Components With Torque Specifications - For Hatchback 3 Door (2 Of 3)

Fig 3: Identifying Rear Speaker Components - For Hatchback 3 Door (3 Of 3)
