FRONT DOOR SPEAKER (for Sedan): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Front No 1 Speaker Components - For Sedan (1 Of 2)
G04833646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

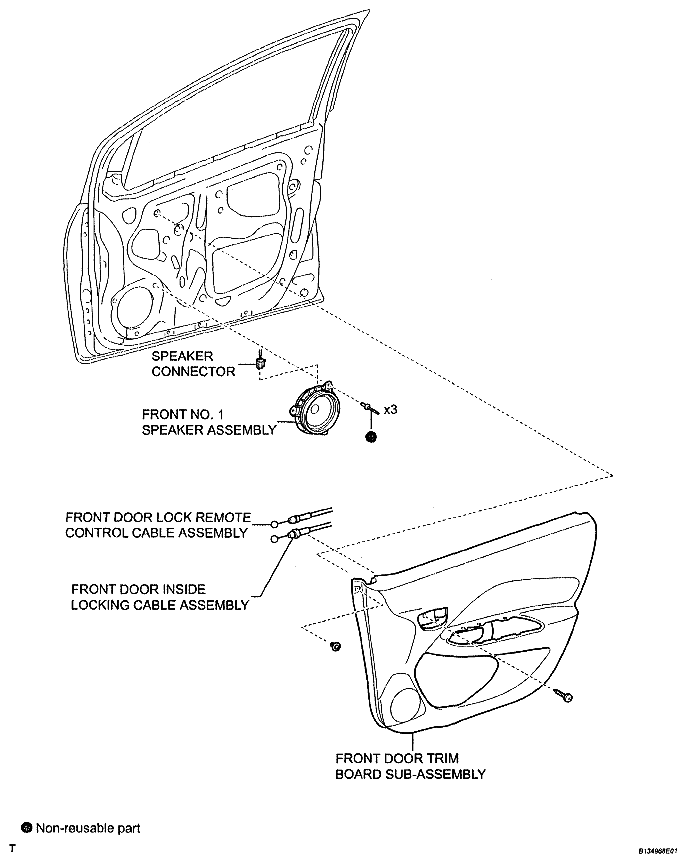

Fig 2: Identifying Front No 1 Speaker Components - For Sedan (2 Of 2)
G04833647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
