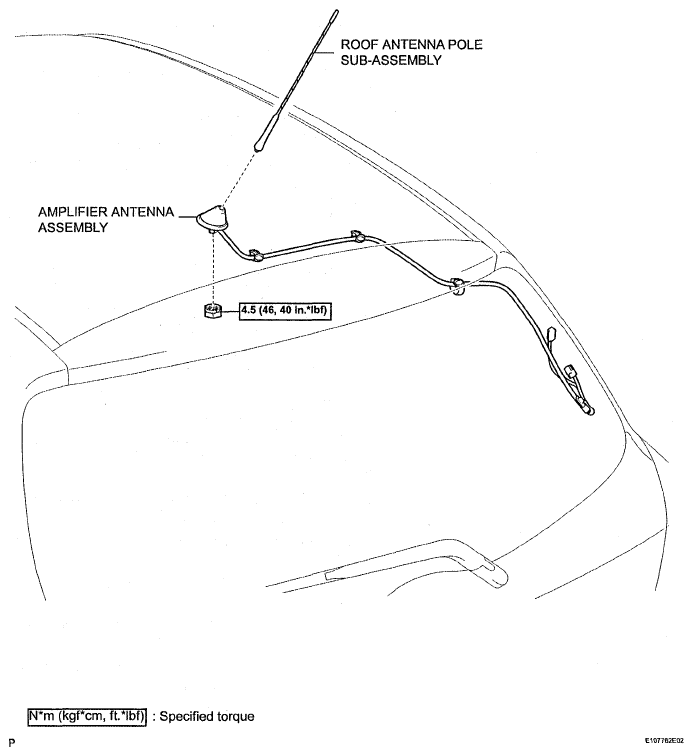

AMPLIFIER ANTENNA (for Hatchback 3 Door): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Roof Headlining Components - Hatchback 3 Door (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Roof Headlining Replacement Components With Torque Specifications - Hatchback 3 Door (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

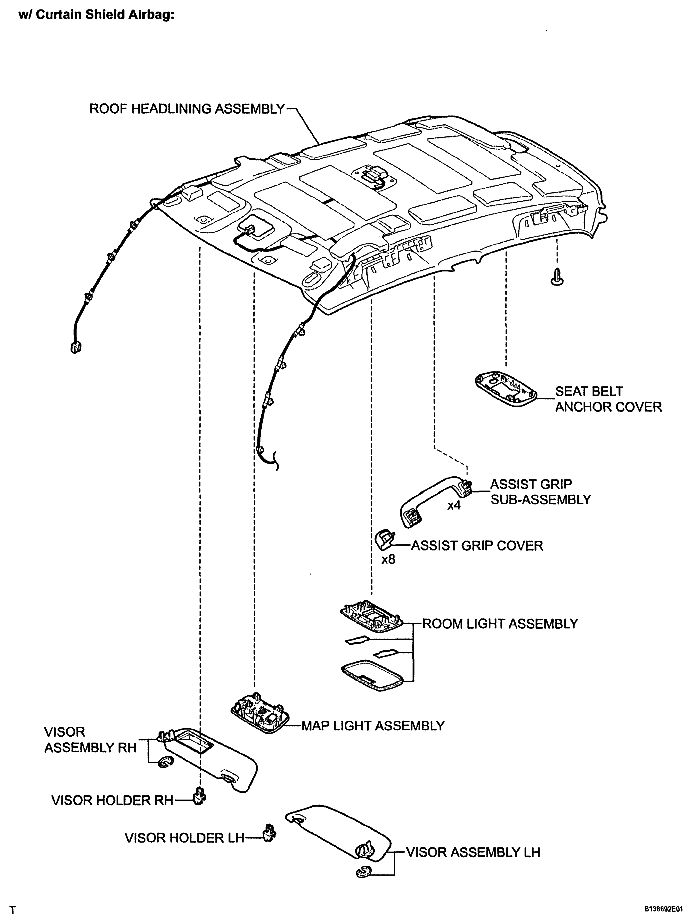

Fig 3: Identifying Roof Headlining Components - Hatchback 3 Door (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

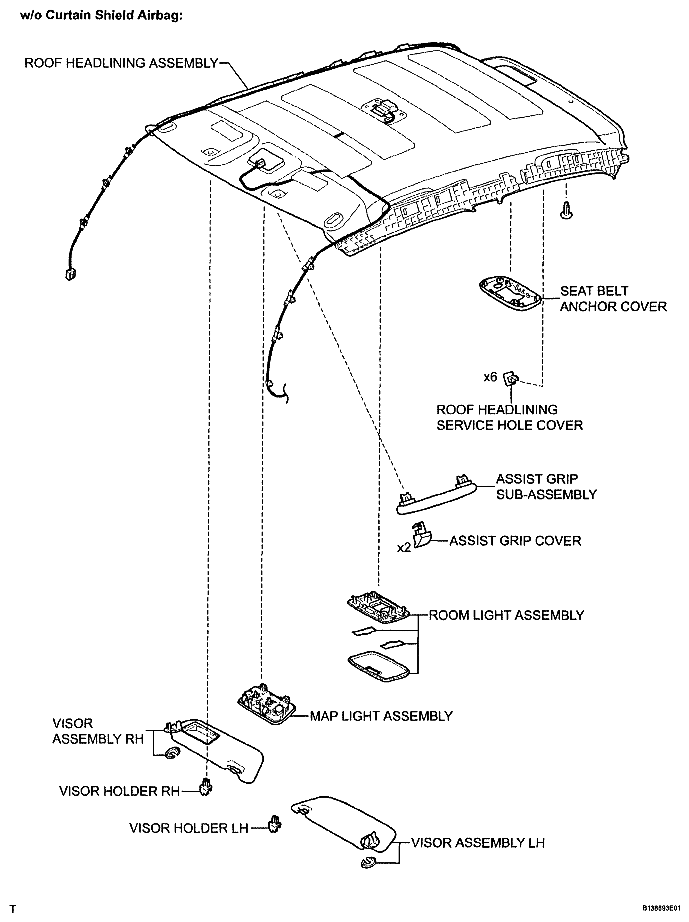

Fig 4: Identifying Roof Headlining Components - Hatchback 3 Door (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

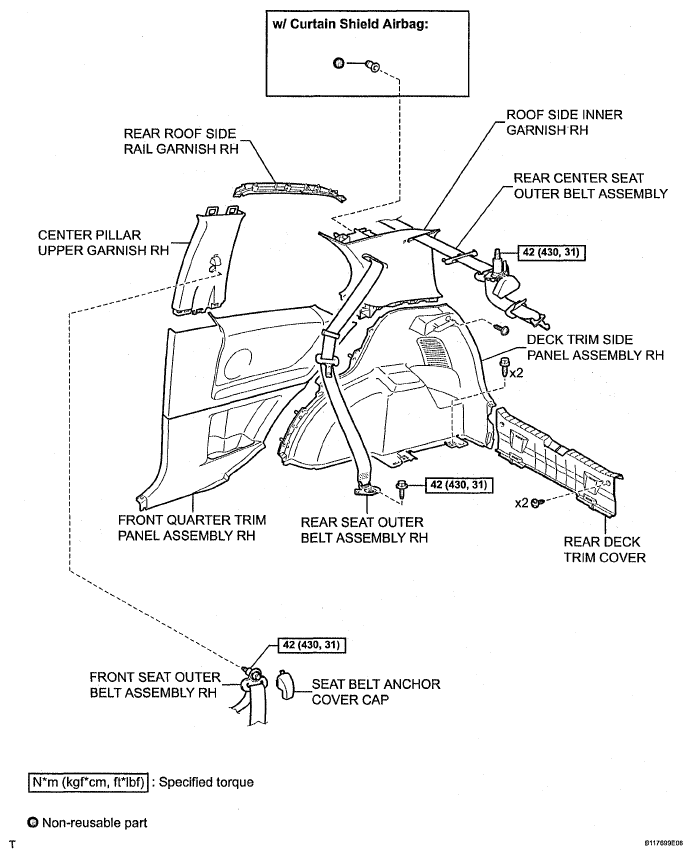

Fig 5: Roof Headlining Replacement Components With Torque Specifications - Hatchback 3 Door (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

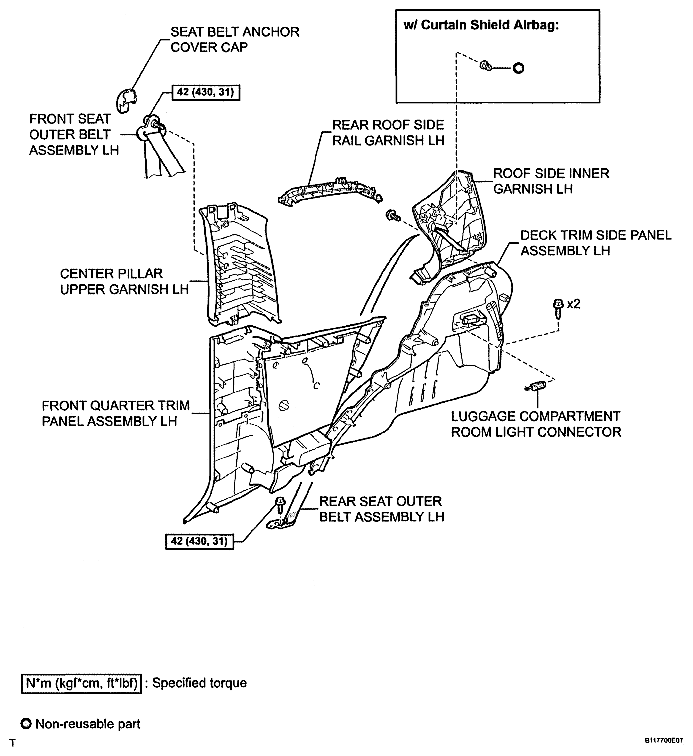

Fig 6: Roof Headlining Replacement Components With Torque Specifications - Hatchback 3 Door (6 Of 12)

Fig 7: Identifying Roof Headlining Components - Hatchback 3 Door (7 Of 9)

Fig 8: Identifying Roof Headlining Components - Hatchback 3 Door (8 Of 9)

Fig 9: Roof Headlining Replacement Components With Torque Specifications - Hatchback 3 Door (9 Of 9)
