STEERING COLUMN ASSEMBLY (for Hatchback): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

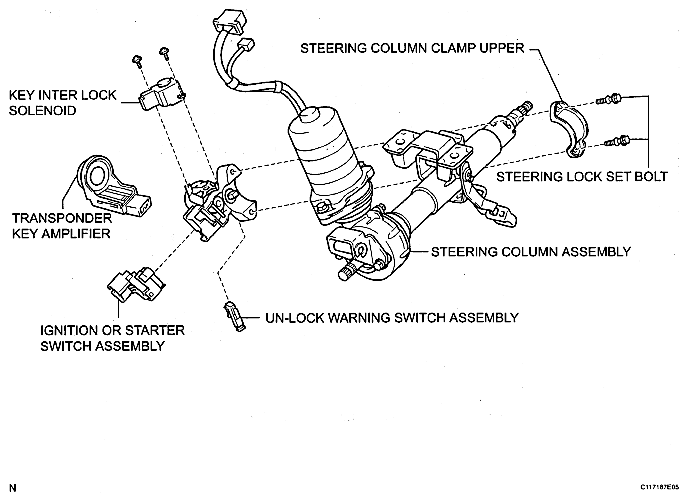

Fig 1: Identifying Steering Column Assembly Components - Hatchback (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

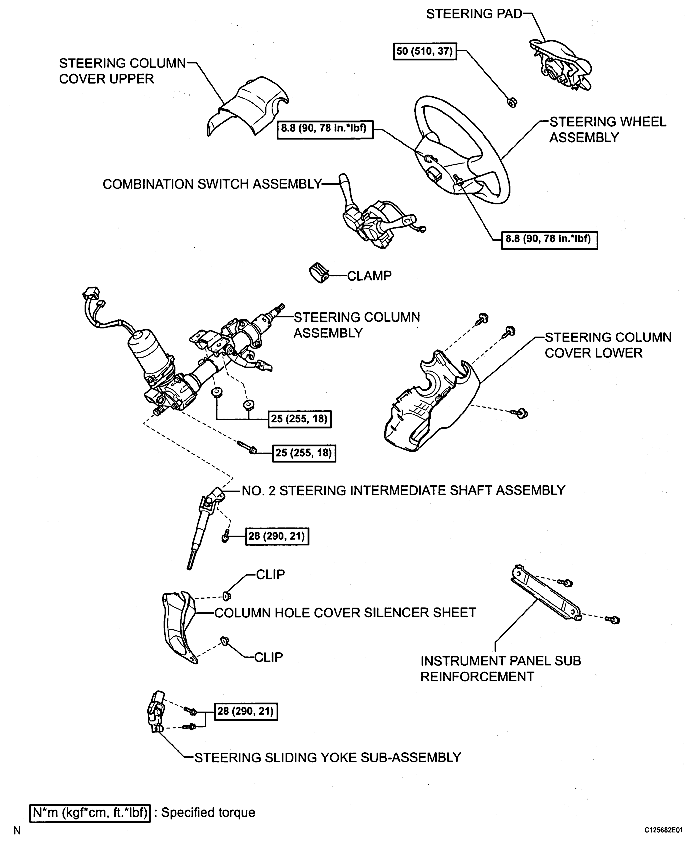

Fig 2: Steering Column Assembly Replacement Components With Torque Specifications - Hatchback (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

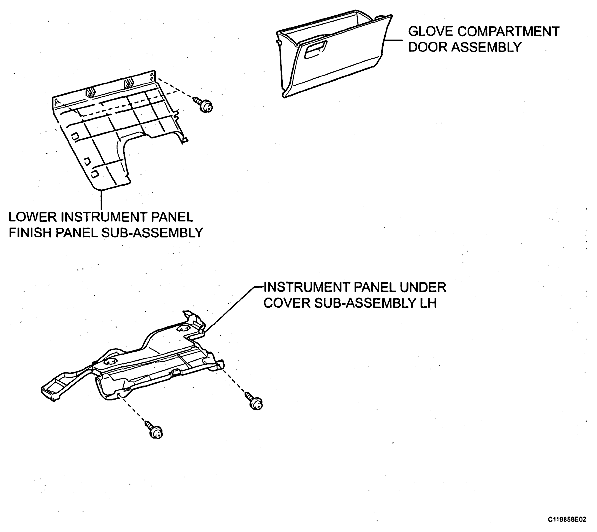

Fig 3: Identifying Steering Column Assembly Components - Hatchback (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

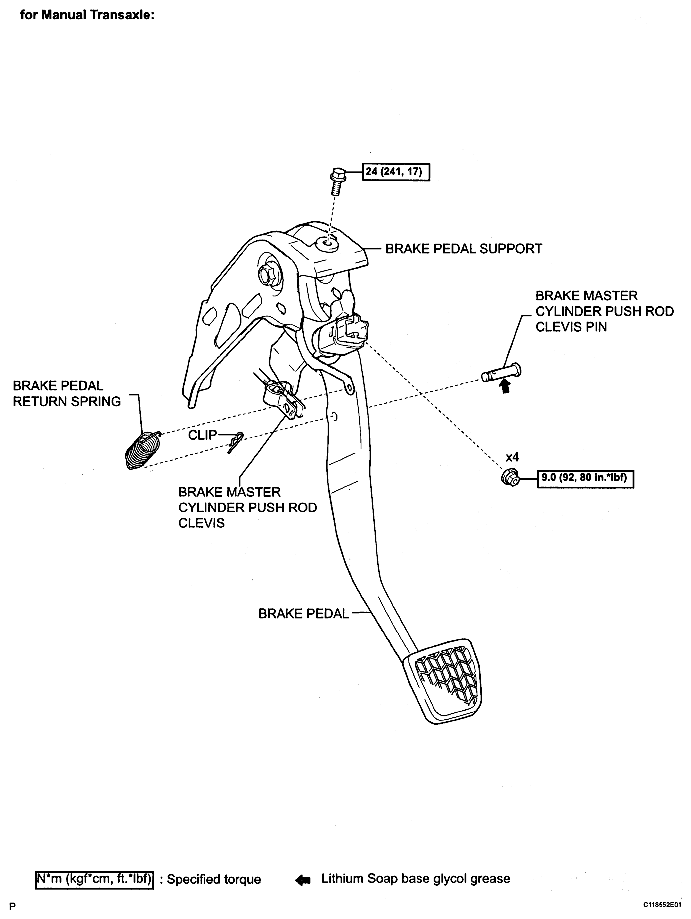

Fig 4: Steering Column Assembly Replacement Components With Torque Specifications - Hatchback (For Manual Transaxle) (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Steering Column Assembly Replacement Components With Torque Specifications - Hatchback (For Automatic Transaxle) (5 Of 7)

Fig 6: Steering Column Assembly Replacement Components With Torque Specifications - Hatchback (6 Of 7)

Fig 7: Identifying Steering Column Assembly Components - Hatchback (7 Of 7)
