Seat Position Sensor: Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

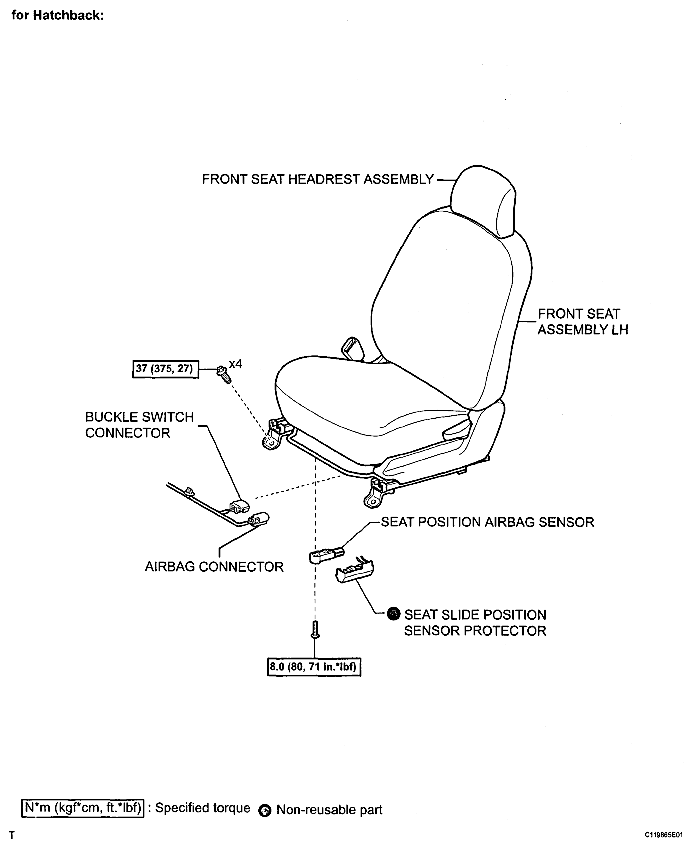

Fig 1: Seat Position Sensor Replacement Components With Torque Specifications (1 Of 2)
G04830507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

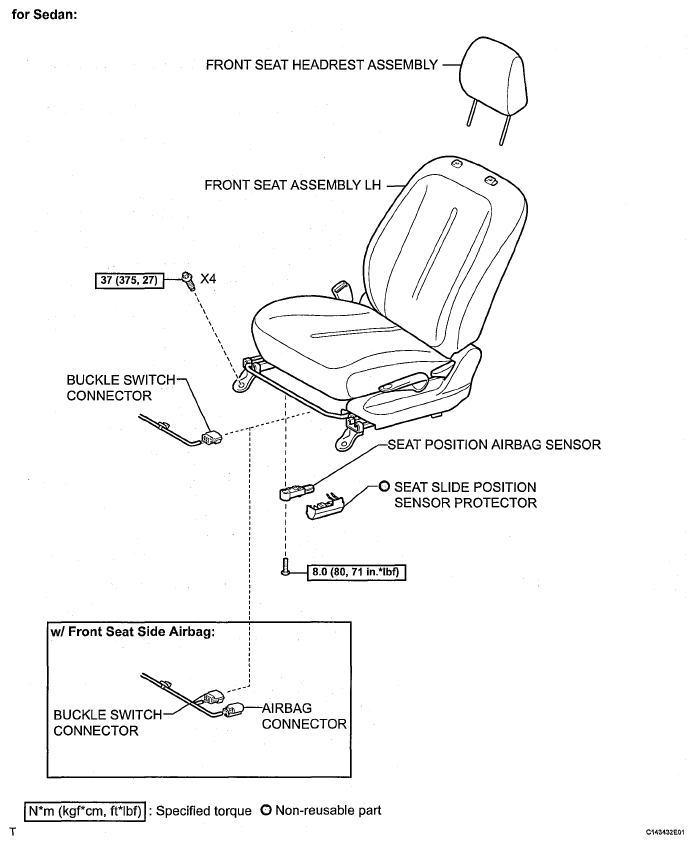

Fig 2: Seat Position Sensor Replacement Components With Torque Specifications (2 Of 2)
G04830508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
