REAR AIRBAG SENSOR (for 5 Door): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Rear Airbag Sensor (For 5 Door) Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Rear Airbag Sensor (For 3 Door) Replacement Components With Torque Specifications (2 Of 3)

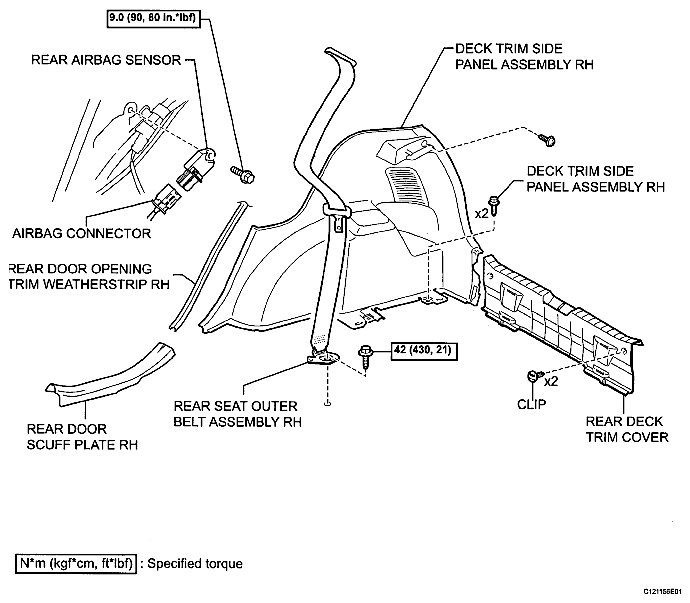

Fig 3: Rear Airbag Sensor (For 5 Door) Replacement Components With Torque Specifications (3 Of 3)
