Occupant Classification Ecu: Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

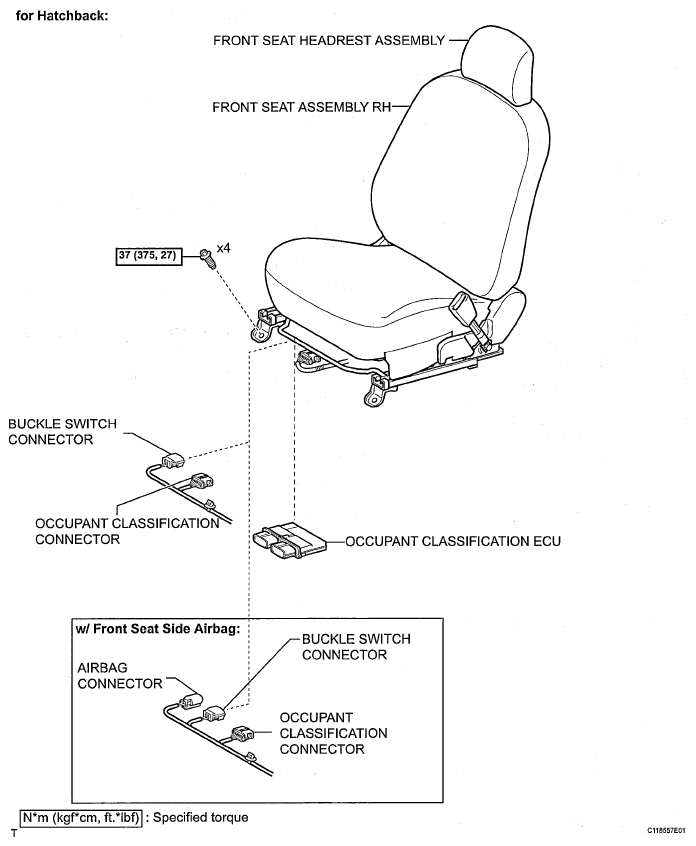

Fig 1: Occupant Classification ECU Replacement Components With Torque Specifications (1 Of 2)
G04830512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

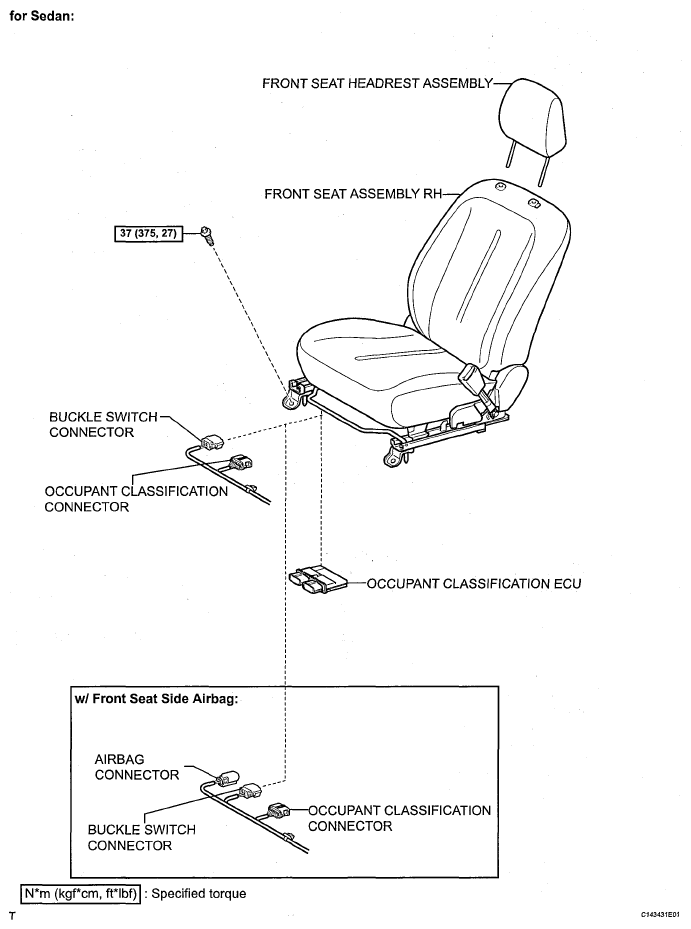

Fig 2: Occupant Classification ECU Replacement Components With Torque Specifications (2 Of 2)
G04830513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
