FRONT PASSENGER AIRBAG ASSEMBLY (for Sedan): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

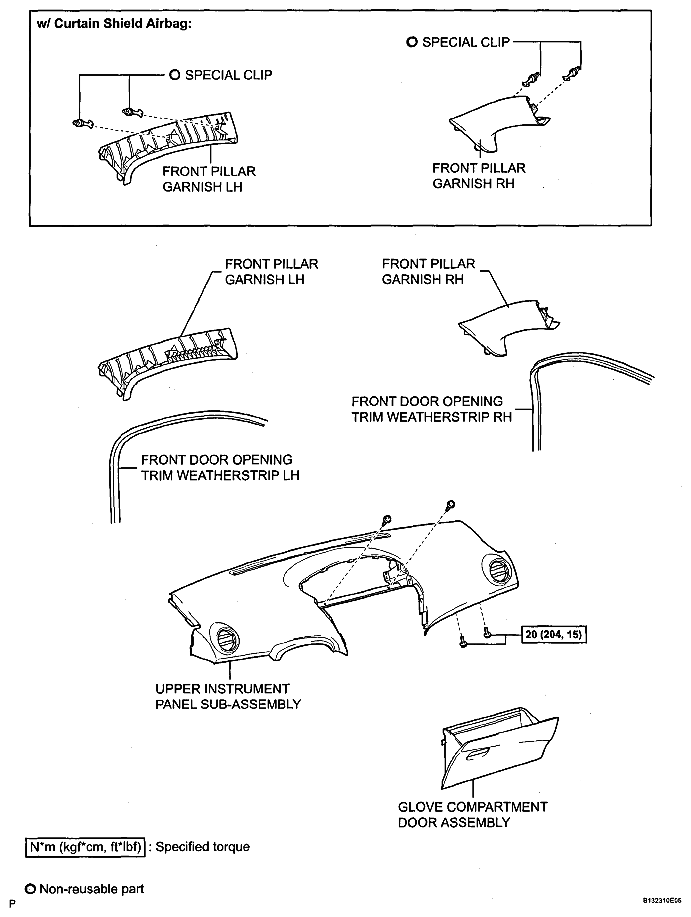

Fig 1: Identifying Front Passenger Airbag Assembly Components Location (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Front Passenger Airbag Assembly Replacement Components With Torque Specifications (2 Of 3)

Fig 3: Identifying Front Passenger Airbag Assembly Components Location (3 Of 3)
