FRONT PASSENGER AIRBAG ASSEMBLY (for Hatchback): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Front Passenger Airbag Assembly Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Front Passenger Airbag Assembly Replacement Components With Torque Specifications (2 Of 3)

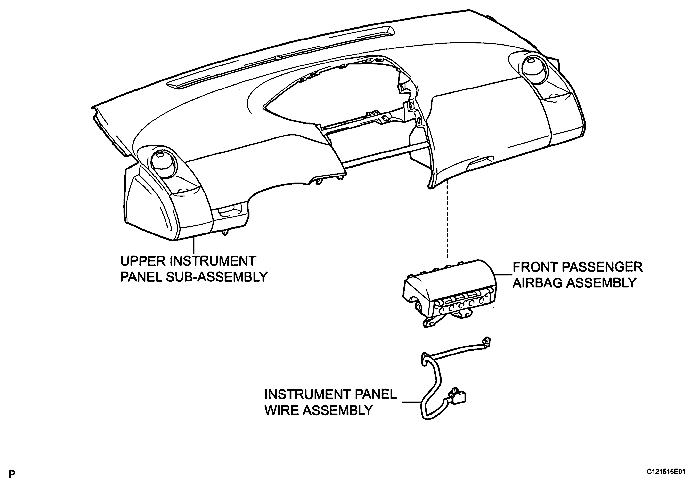

Fig 3: Identifying Front Passenger Airbag Assembly Components (3 Of 3)
