CURTAIN SHIELD AIRBAG ASSEMBLY (for Sedan): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

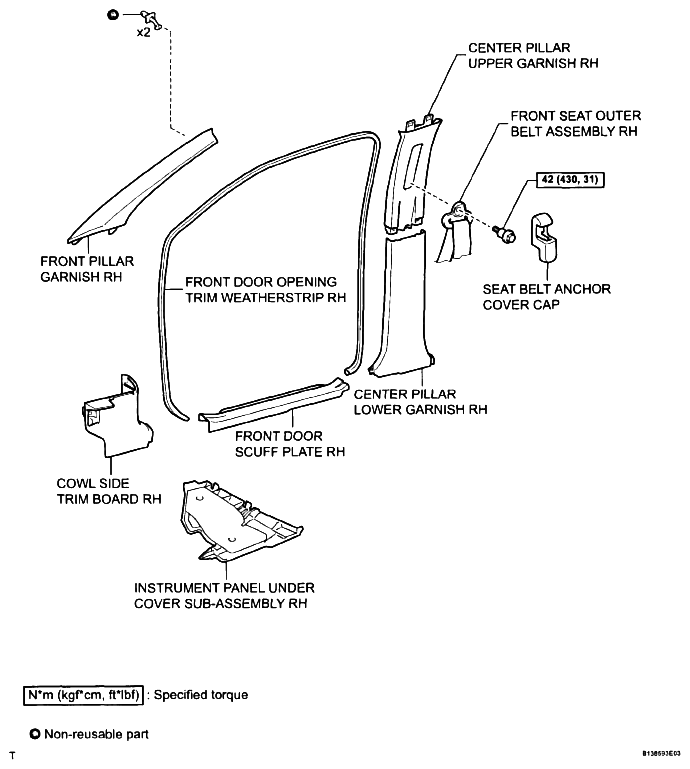

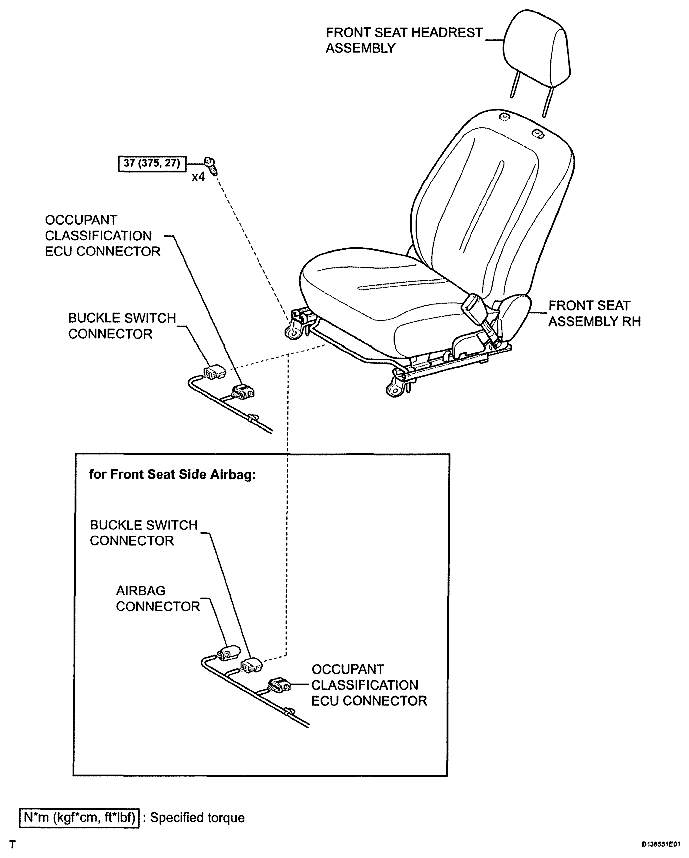

Fig 1: Curtain Shield Airbag Assembly Replacement Components With Torque Specifications (1 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

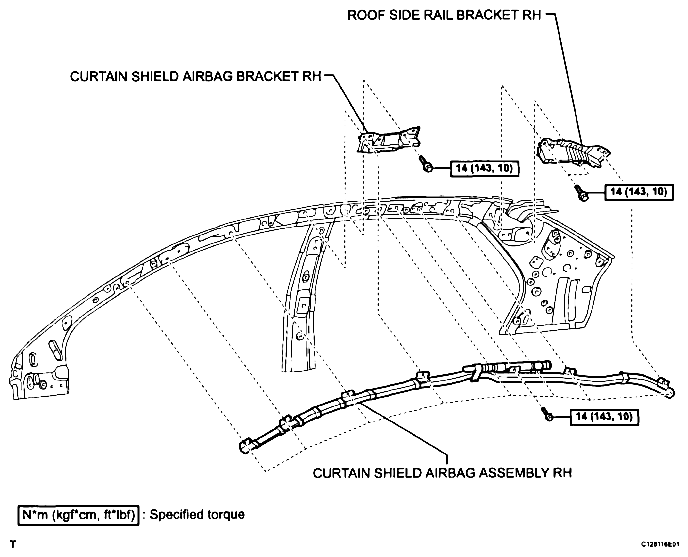

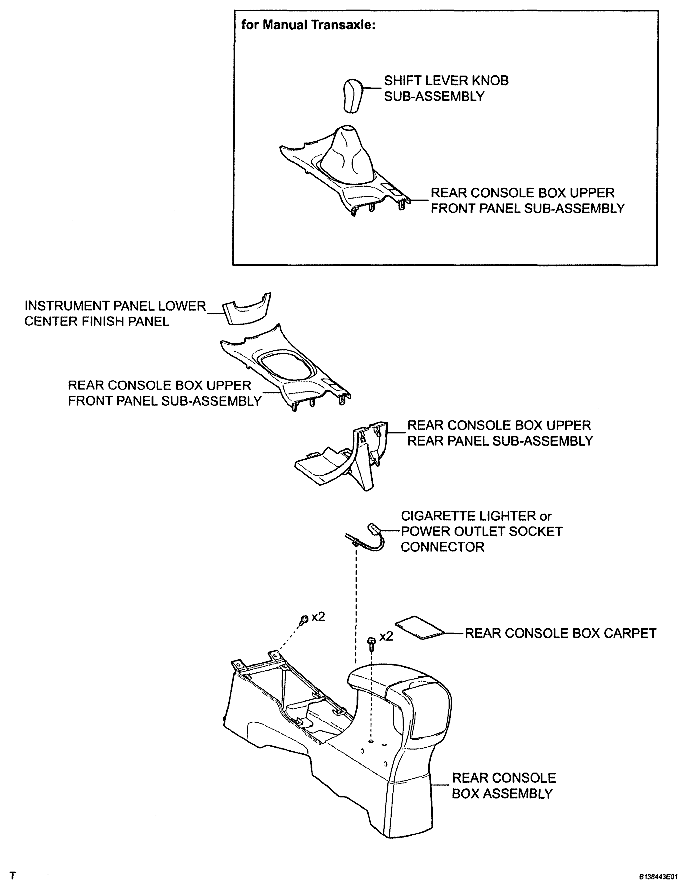

Fig 2: Curtain Shield Airbag Assembly Replacement Components With Torque Specifications (2 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

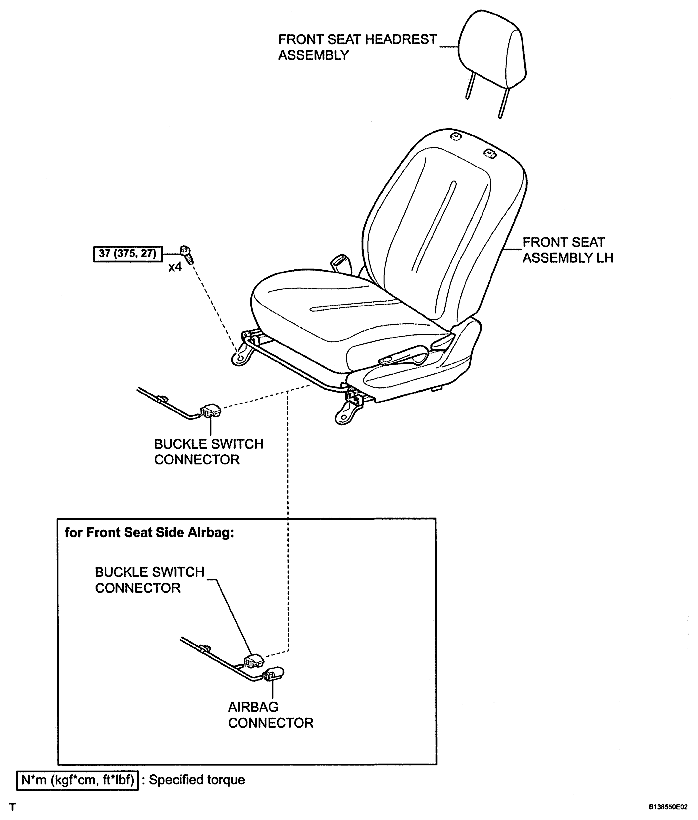

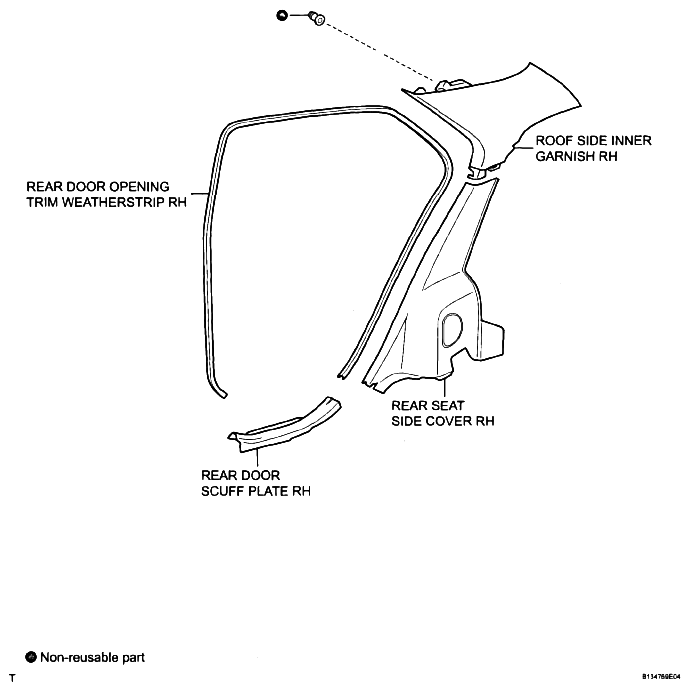

Fig 3: Curtain Shield Airbag Assembly Replacement Components With Torque Specifications (3 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

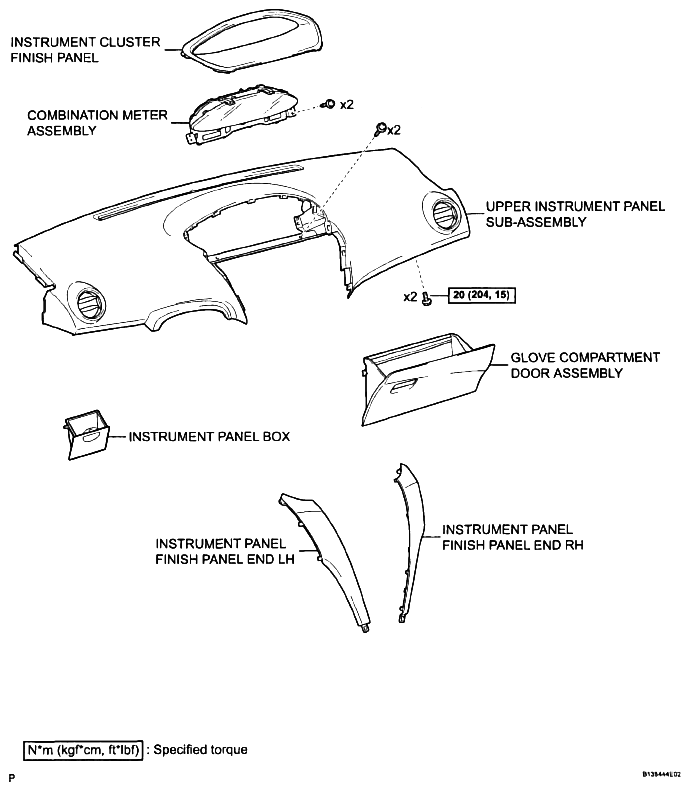

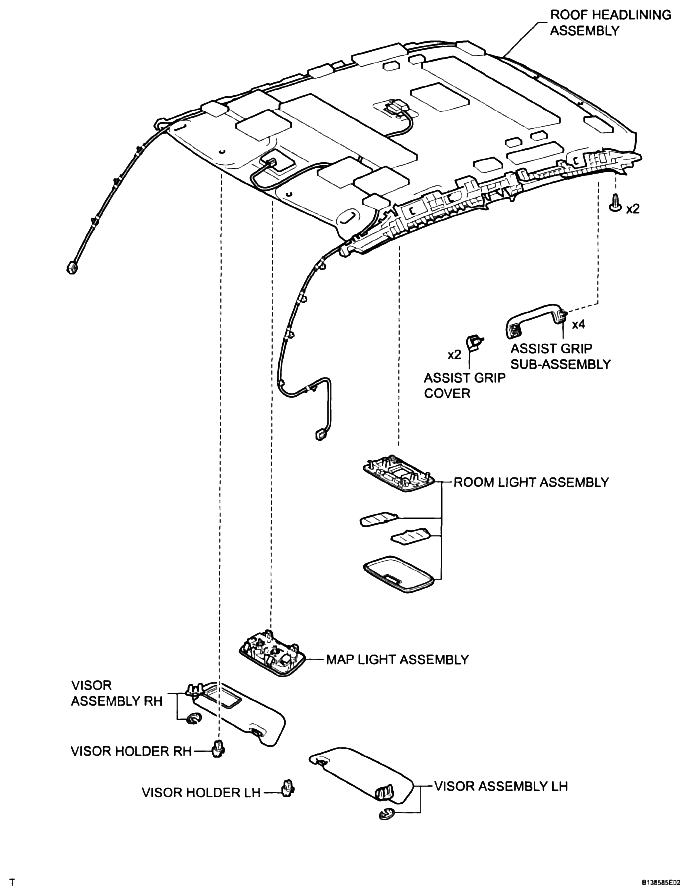

Fig 4: Curtain Shield Airbag Assembly Replacement Components With Torque Specifications (4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Curtain Shield Airbag Assembly Components Location (5 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

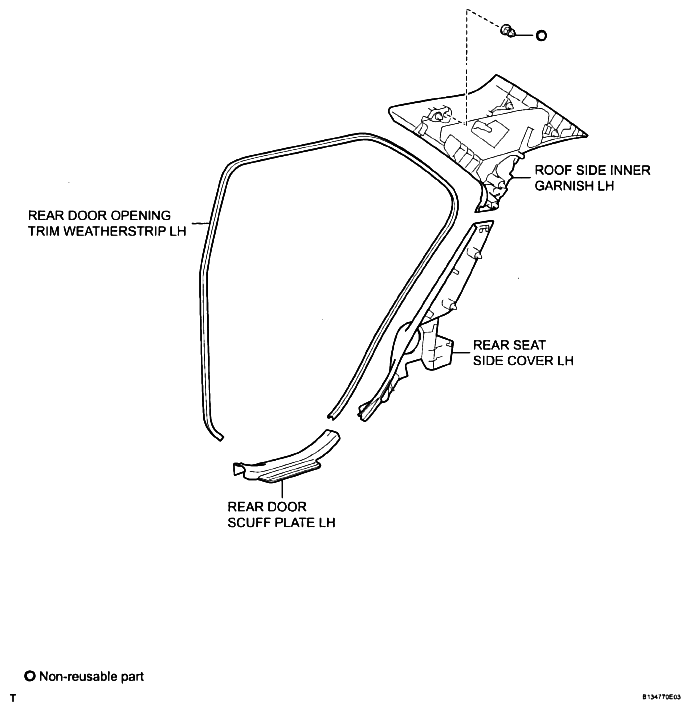

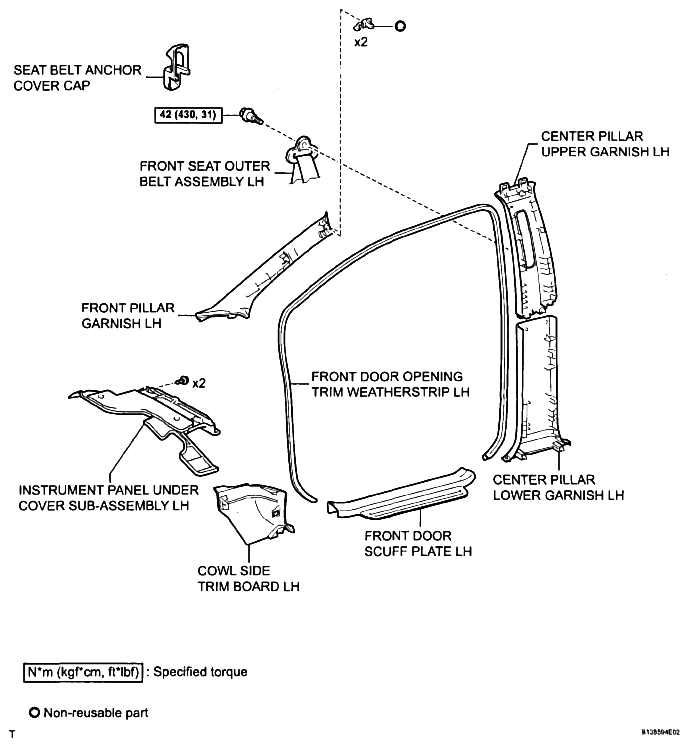

Fig 6: Curtain Shield Airbag Assembly Replacement Components With Torque Specifications (6 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

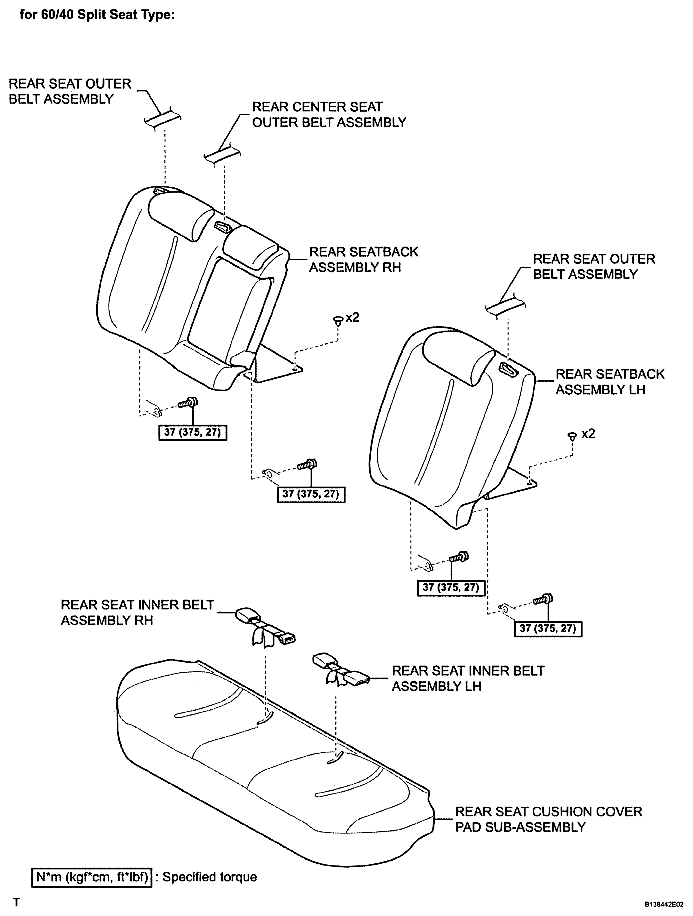

Fig 7: Curtain Shield Airbag Assembly Replacement Components With Torque Specifications (7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Identifying Curtain Shield Airbag Assembly Components Location (8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Identifying Curtain Shield Airbag Assembly Components Location (9 Of 13)

Fig 10: Identifying Curtain Shield Airbag Assembly Components Location (10 Of 13)

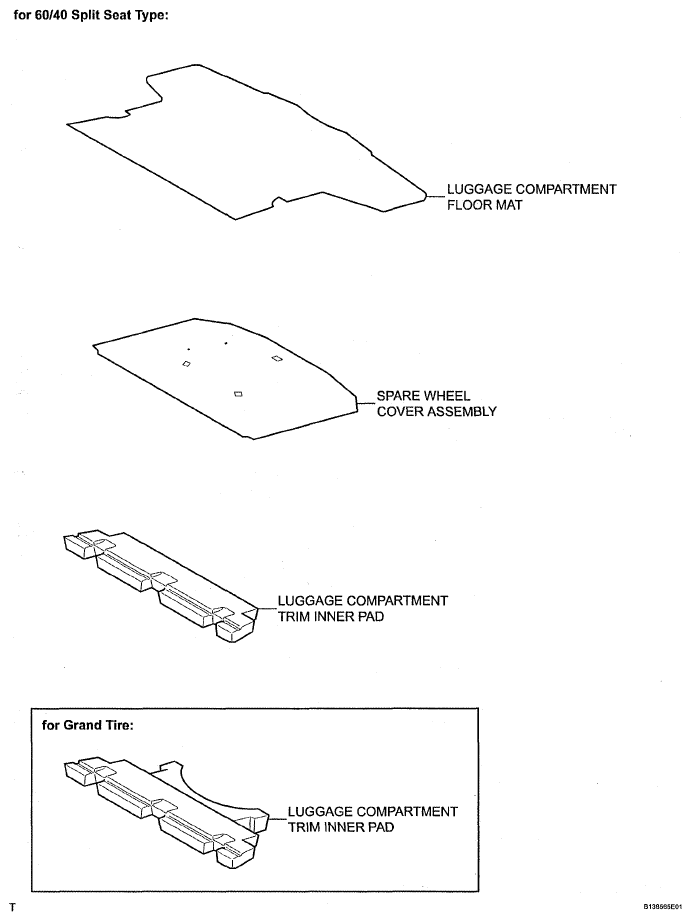

Fig 11: Curtain Shield Airbag Assembly Replacement Components With Torque Specifications (11 Of 13)

Fig 12: Identifying Curtain Shield Airbag Assembly Components Location (12 Of 13)

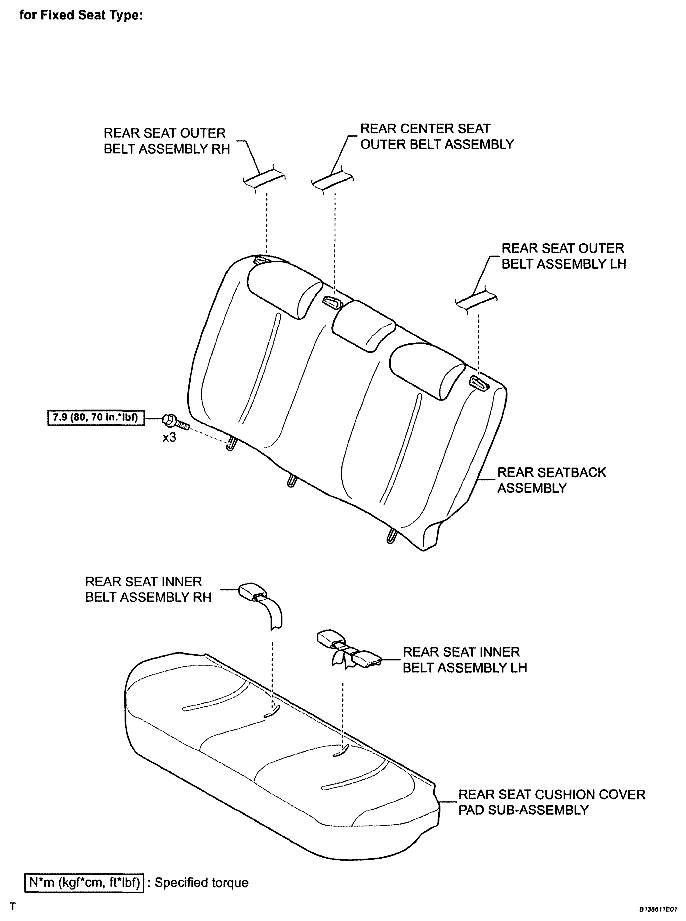

Fig 13: Curtain Shield Airbag Assembly Replacement Components With Torque Specifications (13 Of 13)
