CURTAIN SHIELD AIRBAG ASSEMBLY (for 5 Door): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

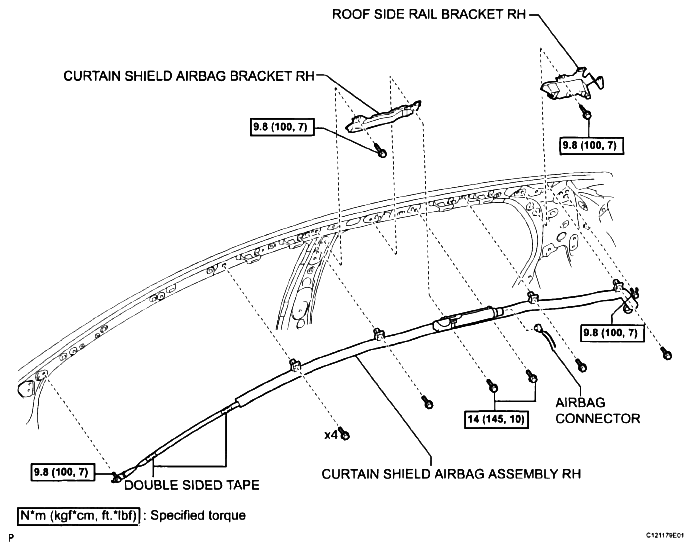

Fig 1: Identifying Curtain Shield Airbag Assembly Components (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

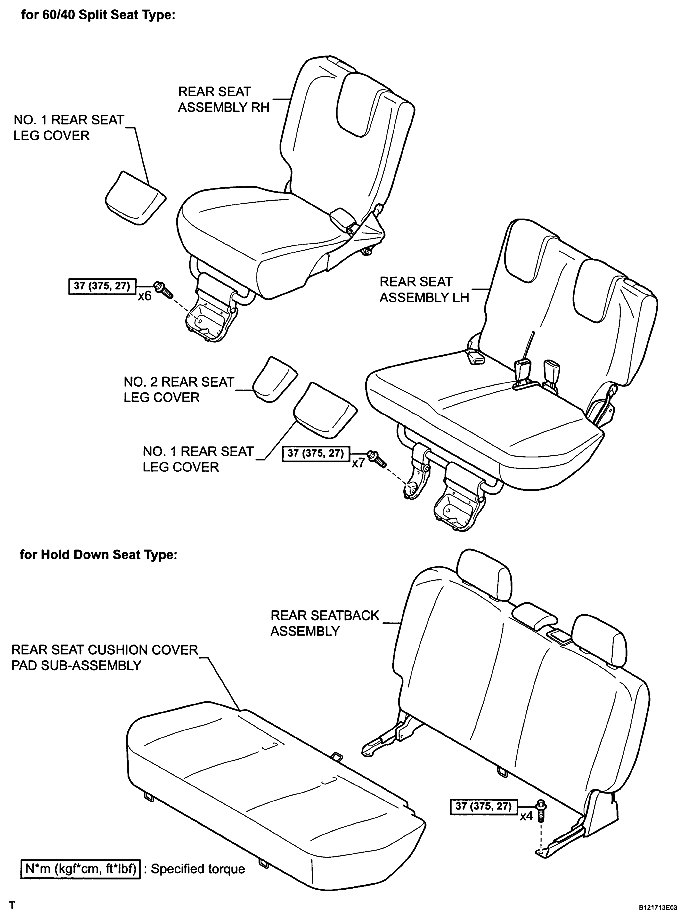

Fig 2: Curtain Shield Airbag Assembly Replacement Components With Torque Specifications (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

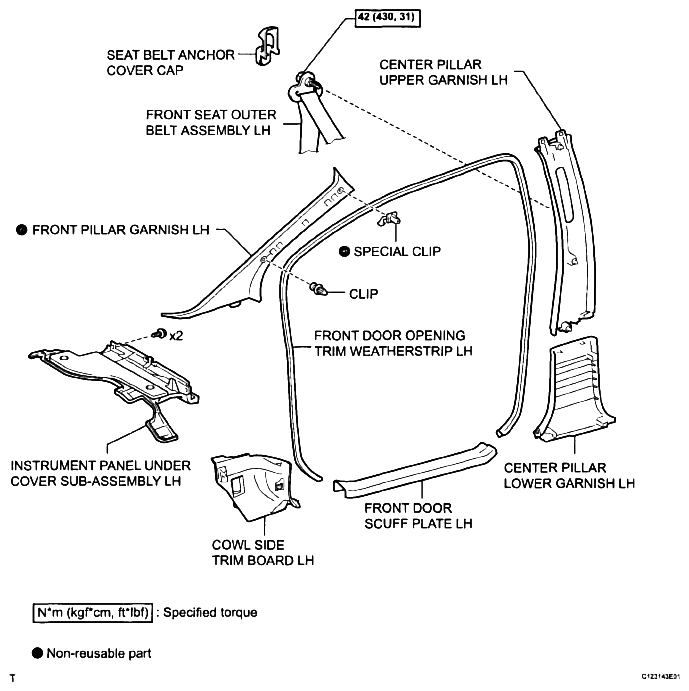

Fig 3: Curtain Shield Airbag Assembly Replacement Components With Torque Specifications (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

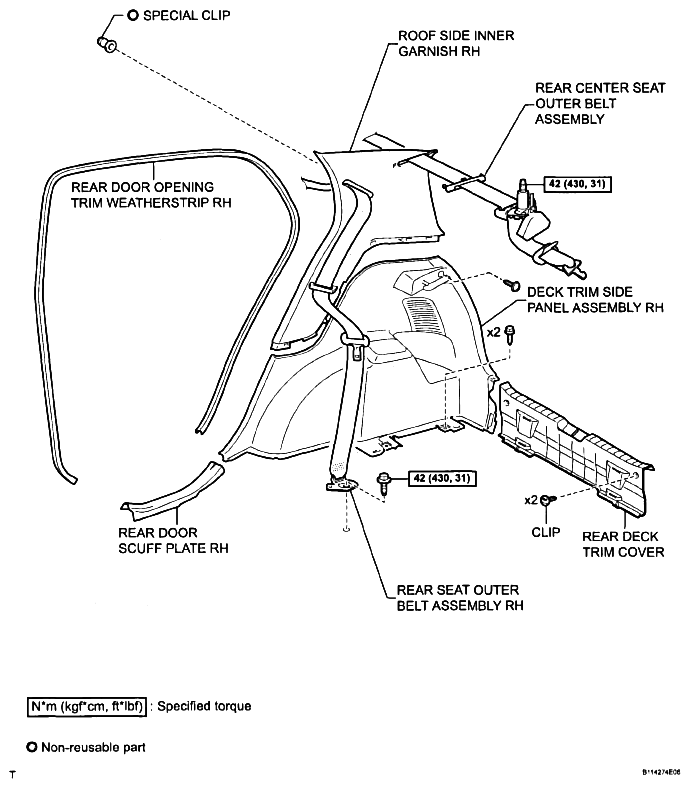

Fig 4: Curtain Shield Airbag Assembly Replacement Components With Torque Specifications (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

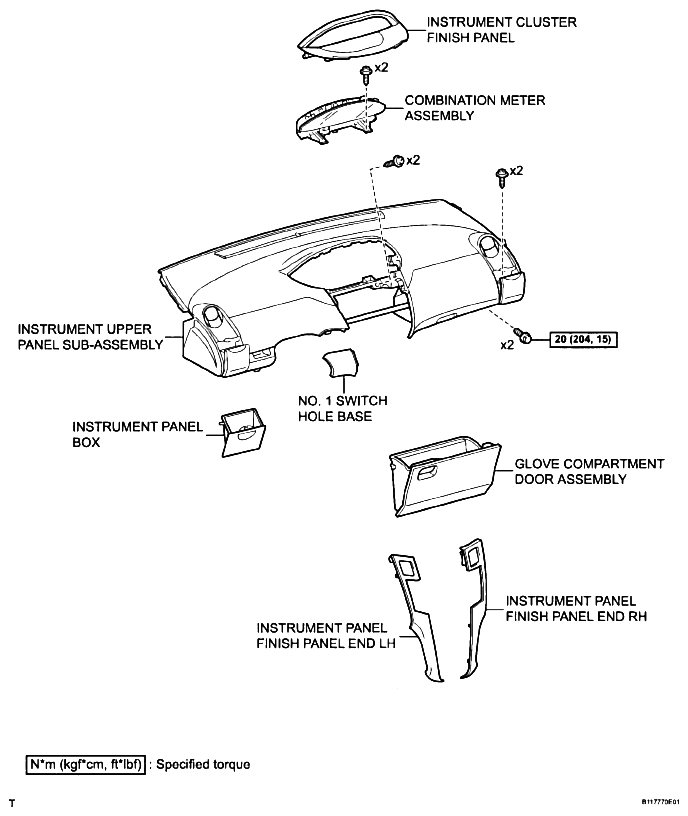

Fig 5: Curtain Shield Airbag Assembly Replacement Components With Torque Specifications (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

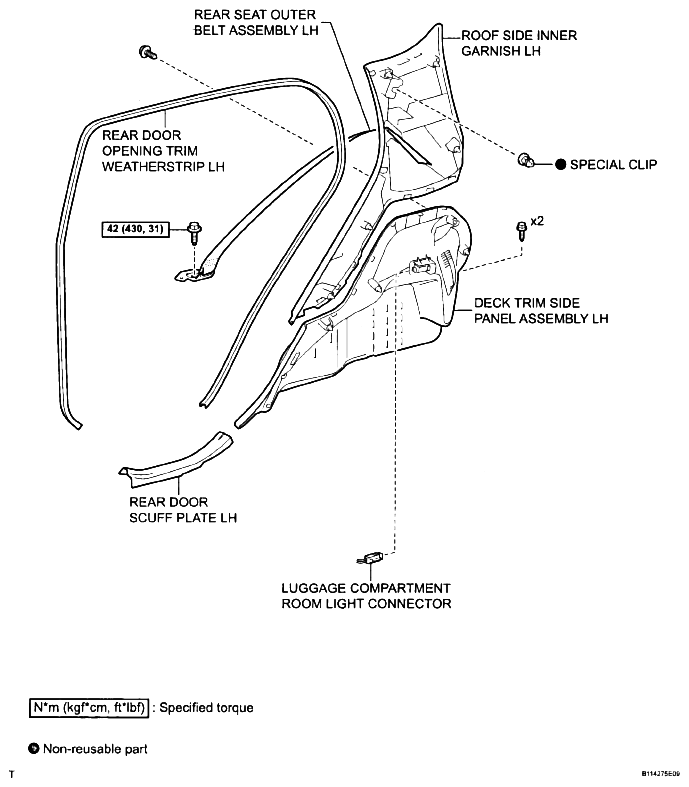

Fig 6: Curtain Shield Airbag Assembly Replacement Components With Torque Specifications (6 Of 9)

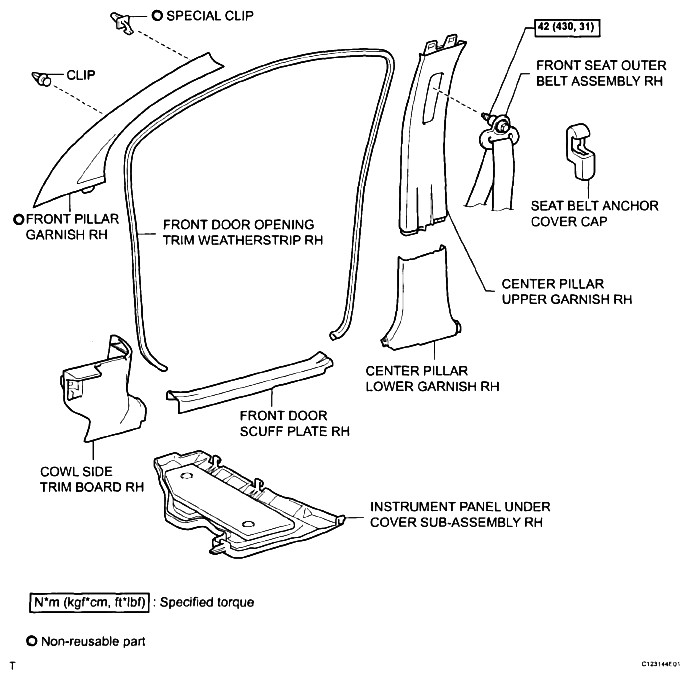

Fig 7: Curtain Shield Airbag Assembly Replacement Components With Torque Specifications (7 Of 9)

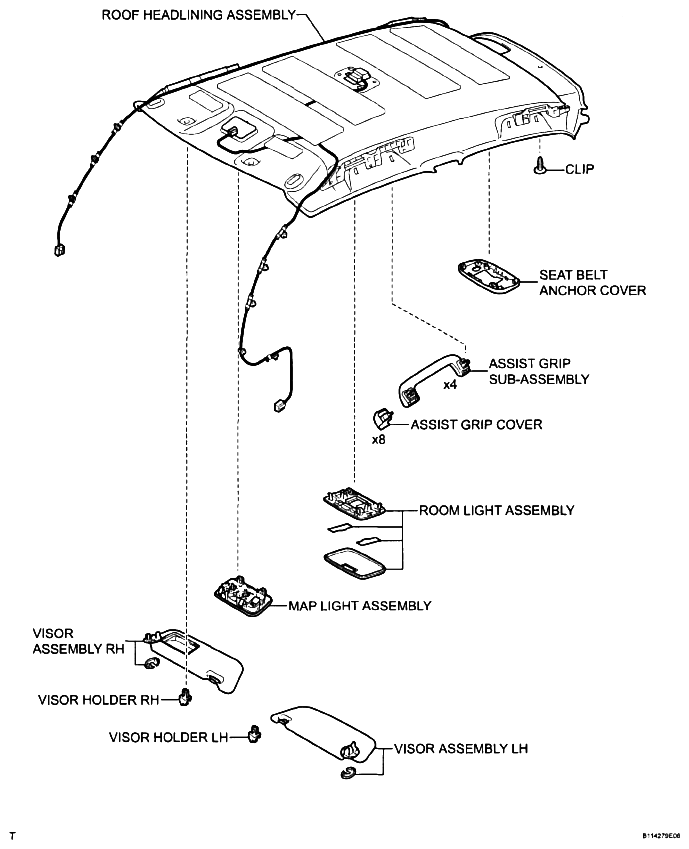

Fig 8: Identifying Curtain Shield Airbag Assembly Components (8 Of 9)

Fig 9: Curtain Shield Airbag Assembly Replacement Components With Torque Specifications (9 Of 9)
