CURTAIN SHIELD AIRBAG ASSEMBLY (for 3 Door): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

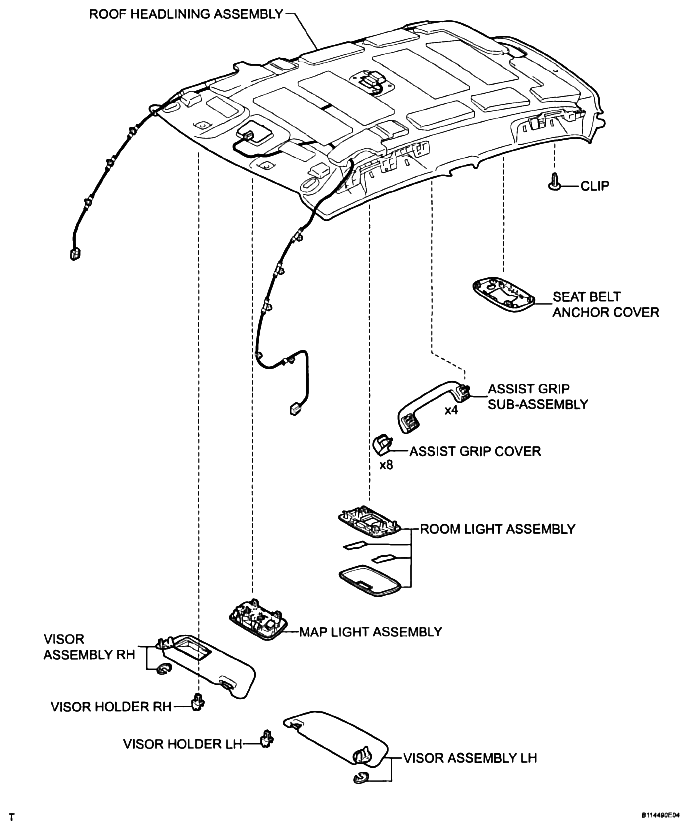

Fig 1: Identifying Curtain Shield Airbag Assembly Components (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

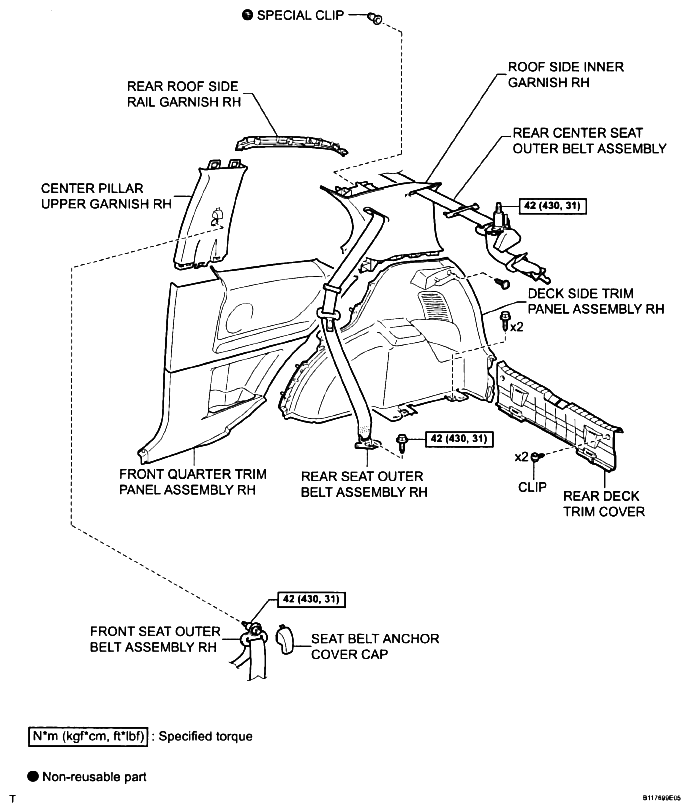

Fig 2: Rear Airbag Sensor (For 3 Door) Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

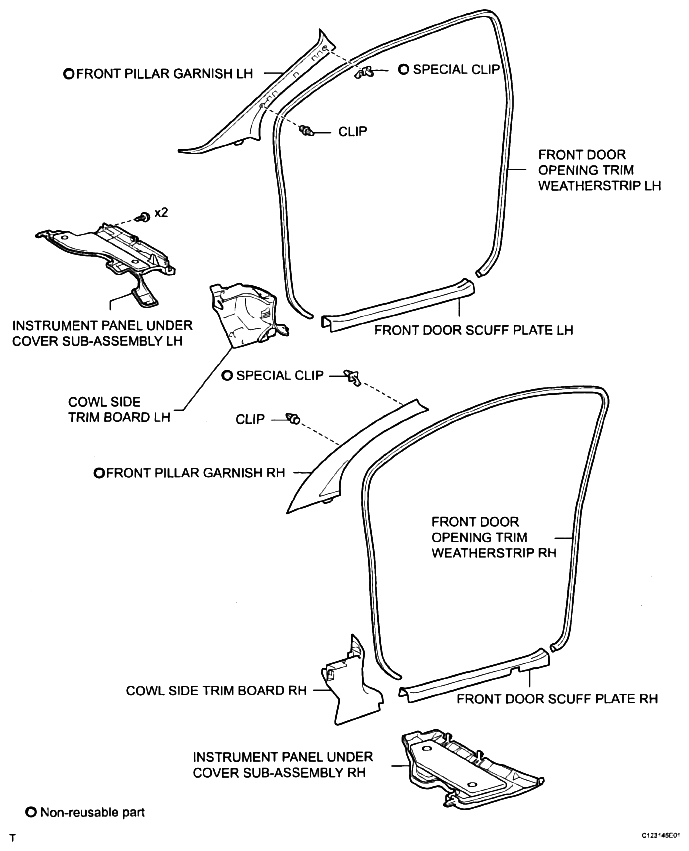

Fig 3: Identifying Curtain Shield Airbag Assembly Components (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

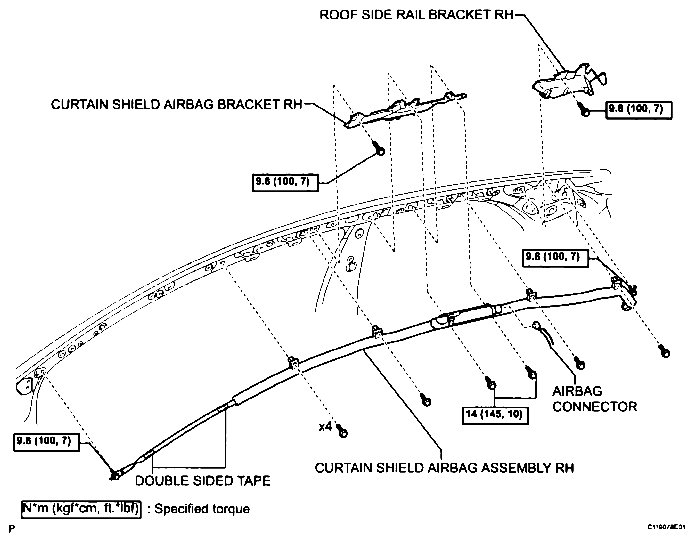

Fig 4: Curtain Shield Airbag Assembly Replacement Components With Torque Specifications (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Curtain Shield Airbag Assembly Replacement Components With Torque Specifications (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

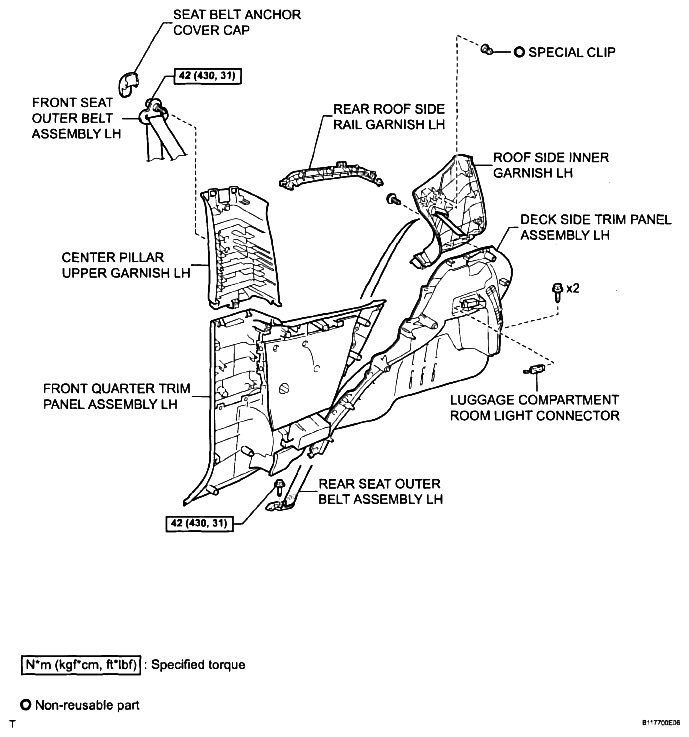

Fig 6: Curtain Shield Airbag Assembly Replacement Components With Torque Specifications (6 Of 8)

Fig 7: Identifying Curtain Shield Airbag Assembly Components (7 Of 8)

Fig 8: Curtain Shield Airbag Assembly Replacement Components With Torque Specifications (8 Of 8)
