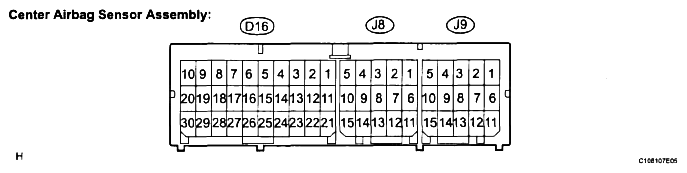

TERMINALS OF ECU
| Terminal No. | Terminal Symbol | Destination |
|---|---|---|
| D16-1 | P2+ | Front passenger airbag (Front passenger side squib 2nd step) |
| D16-2 | P2- | Front passenger airbag (Front passenger side squib 2nd step) |
| D16-3 | P- | Front passenger airbag (Front passenger side squib) |
| D16-4 | P+ | Front passenger airbag (Front passenger side squib) |
| D16-5 | D+ | Steering pad (Driver side squib) |
| D16-6 | D- | Steering pad (Driver side squib) |
| D16-7 | D2- | Steering pad (Driver side squib 2nd step) |
| D16-8 | D2+ | Steering pad (Driver side squib 2nd step) |
| D16-13 | CANH | CAN |
| D16-16 | SIL | DLC3 |
| D16-17 | P-AB | Front passenger seat belt warning light (Passenger airbag ON/OFF indicator) |
| D16-21 | IG2 | IGN fuse |
| D16-22 | CANL | CAN |
| D16-23 | PAON | Front passenger seat belt warning light (Passenger airbag ON/OFF indicator) |
| D16-25 | E1 | Ground |
| D16-26 | E2 | Ground |
| D16-27 | -SR | Front airbag sensor RH |
| D16-28 | -SL | Front airbag sensor LH |
| D16-29 | +SR | Front airbag sensor RH |
| D16-30 | +SL | Front airbag sensor LH |
| J8-1 | PD- | Front seat outer belt assembly LH (Driver side pretensioner squib) |
| J8-2 | PD+ | Front seat outer belt assembly LH (Driver side pretensioner squib) |
| J8-3 | ED | Shield |
| J8-6 | ICD- | Curtain shield airbag assembly LH (Driver side curtain shield squib) |
| J8-7 | ICD+ | Curtain shield airbag assembly LH (Driver side curtain shield squib) |
| J8-8 | BBD+ | Side airbag sensor LH |
| J8-9 | SFD+ | Front seat side airbag assembly LH (Side squib LH) |
| J8-10 | SFD- | Front seat side airbag assembly LH (Side squib LH) |
| J8-11 | DBE+ | Front seat inner belt assembly LH |
| J8-12 | DBE- | Front seat inner belt assembly LH |
| J8-13 | DSP- | Seat position sensor |
| J8-14 | DSP+ | Seat position sensor |
| J8-15 | BBD- | Side airbag sensor LH |
| J9-4 | PP+ | Front seat outer belt assembly RH (Front passenger side pretensioner squib RH) |
| J9-5 | PP- | Front seat outer belt assembly RH (Front passenger side pretensioner squib RH) |
| J9-6 | SFP- | Front seat side airbag assembly RH (Side squib RH) |
| J9-7 | SFP+ | Front seat side airbag assembly RH (Side squib RH) |
| J9-8 | BBP+ | Side airbag sensor RH |
| J9-9 | ICP+ | Curtain shield airbag assembly RH (Curtain shield squib RH) |
| J9-10 | ICP- | Curtain shield airbag assembly RH (Curtain shield squib RH) |
| J9-11 | BBP- | Side airbag sensor RH |
| J9-12 | FSP+ | Occupant Classification ECU |
| J9-13 | FSP- | Occupant Classification ECU |
