SRS Warning Light Remains ON: Wiring Diagram

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

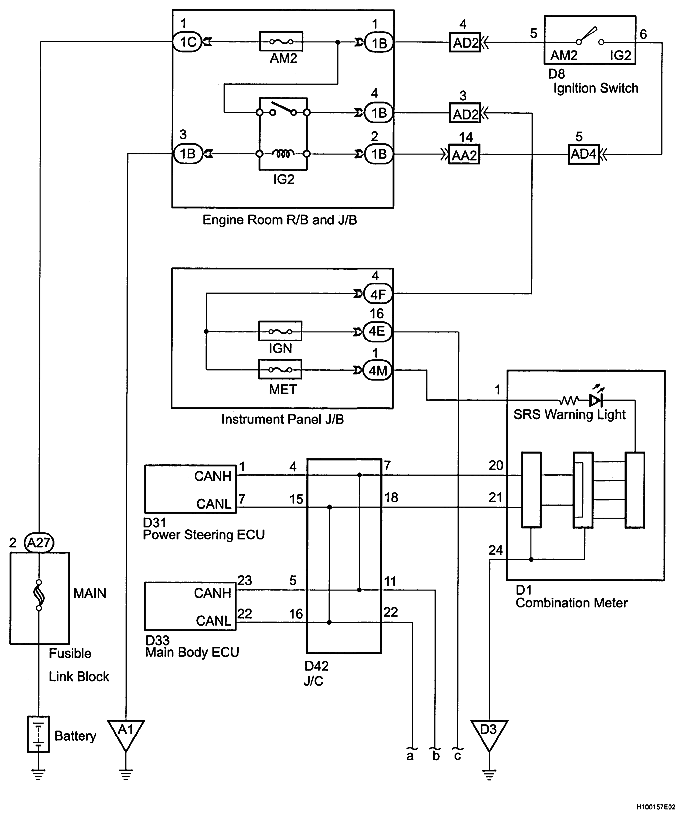

Fig 1: SRS Warning Light - Wiring Diagram (1 Of 2)
G04830142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

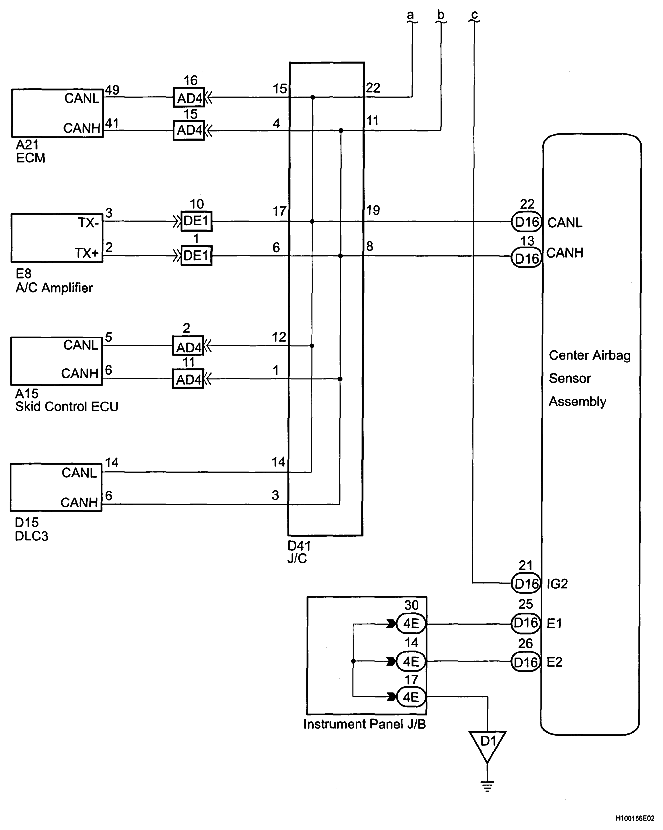

Fig 2: SRS Warning Light - Wiring Diagram (2 Of 2)
G04830143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
