Parts Location

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

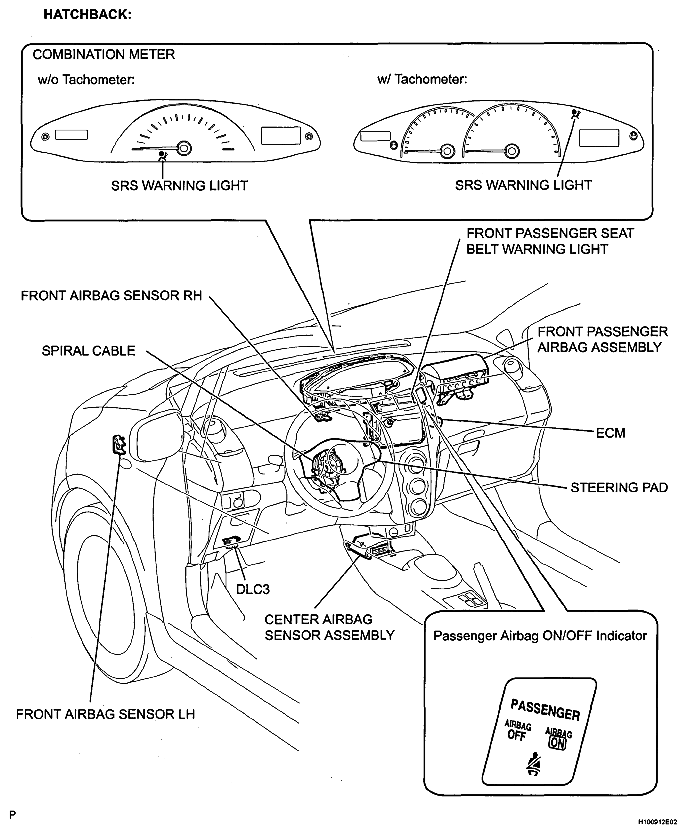

Fig 1: Identifying Parts Location Of Supplement Restraint System - Hatchback (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

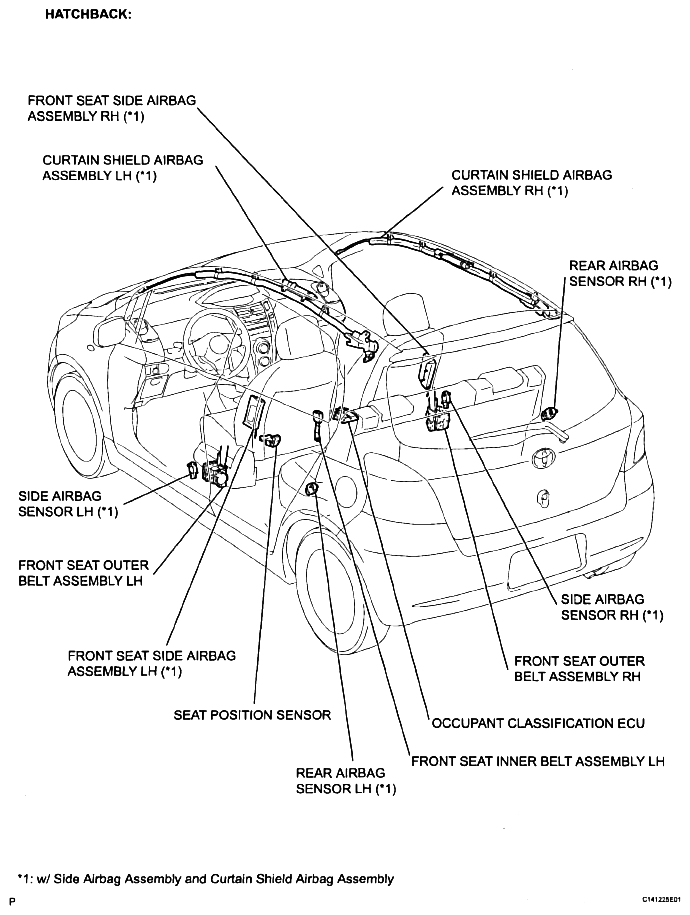

Fig 2: Identifying Parts Location Of Supplement Restraint System - Hatchback (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

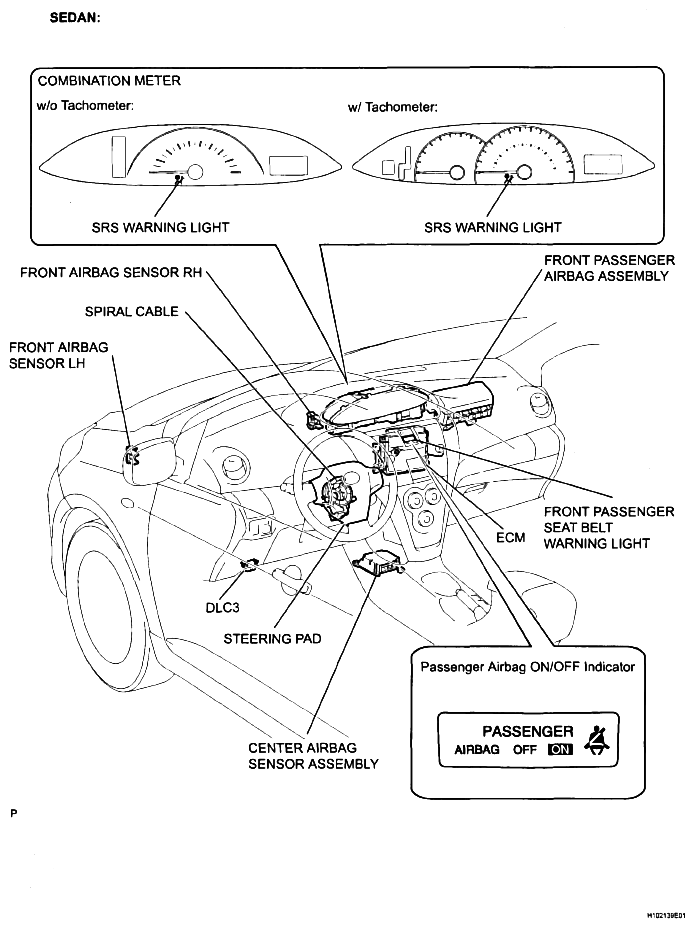

Fig 3: Identifying Parts Location Of Supplement Restraint System - Sedan (1 Of 2)

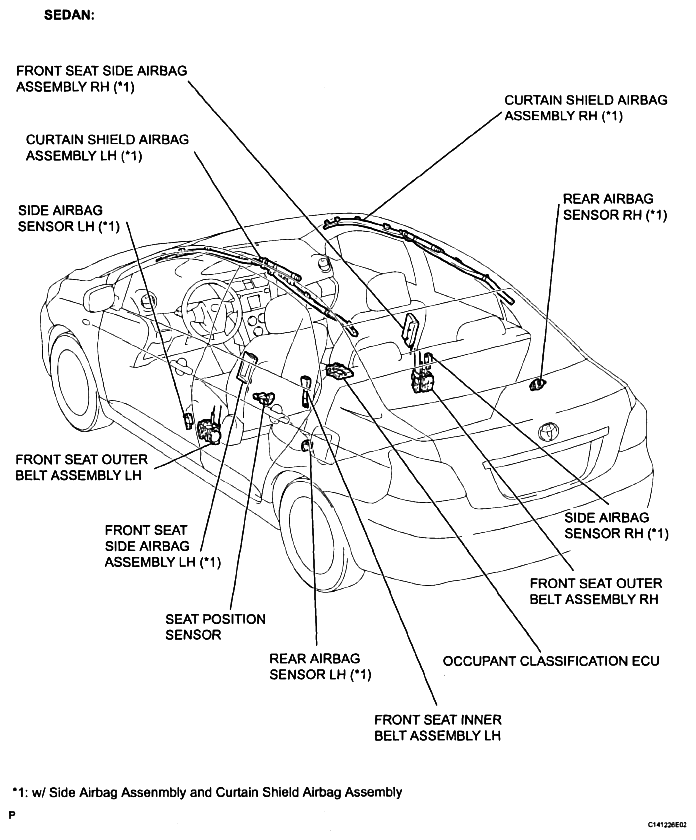

Fig 4: Identifying Parts Location Of Supplement Restraint System - Sedan (2 Of 2)
