DTC B1662/45 Indicator Light Circuit Malfunction: Wiring Diagram

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

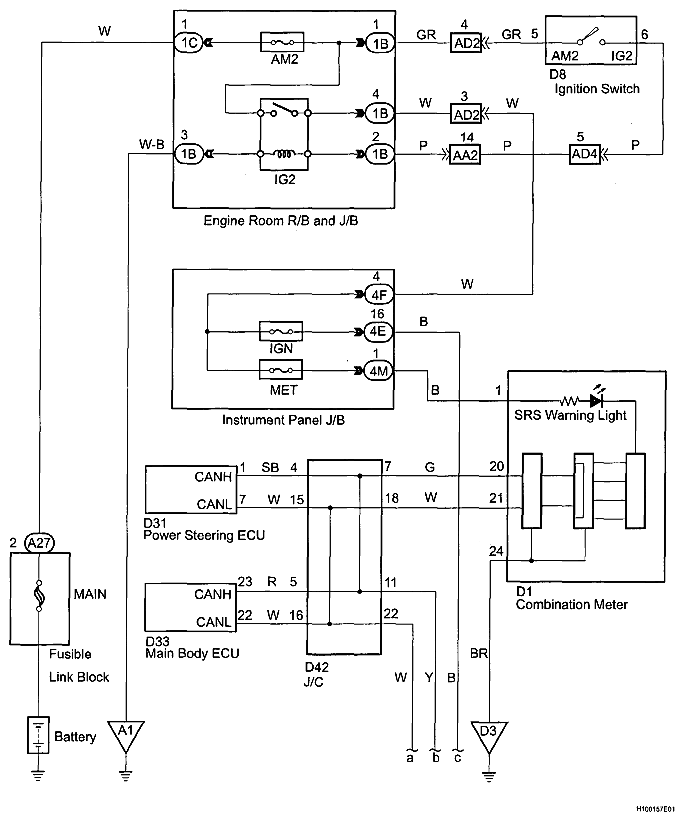

Fig 1: Indicator Light Circuit Malfunction - Wiring Diagram (1 Of 2)
G04830091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

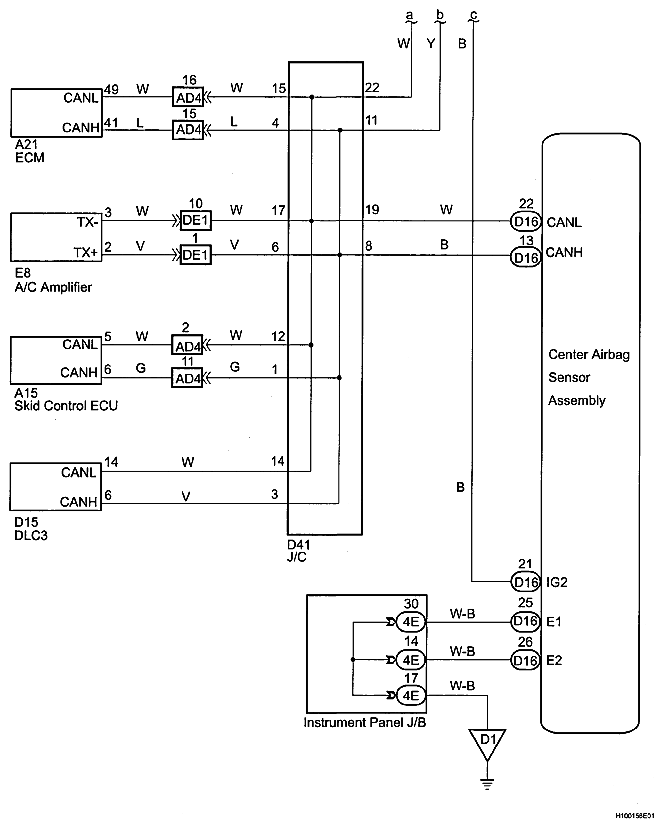

Fig 2: Indicator Light Circuit Malfunction - Wiring Diagram (2 Of 2)
G04830092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
