REAR BUMPER (for Sedan): Removal

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR BUMPER SIDE SEAL LH
1. Using a clip remover, remove the 3 clips and the rear bumper side seal.
REMOVE REAR BUMPER SIDE SEAL RH
HINT:

Use the same procedure as for the LH side.

Fig 1: Locating Clips And Rear Bumper Side Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR BUMPER COVER
1. Apply protective tape as shown in the illustration.

  Fig 2: Applying Protective Tape
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a clip remover, remove the 2 clips.
3. Remove the 2 bolts and the 2 screws.

  Fig 3: Locating Bolts And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

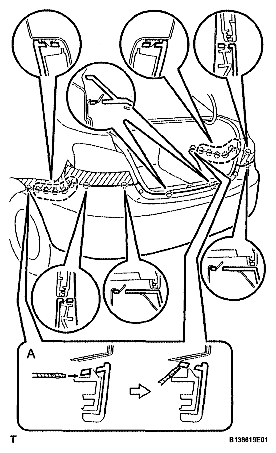

4. Insert a screwdriver into portion A shown in the illustration, then lift the rear bumper cover up using it and disengage the 2 claws.
5. Disengage the 16 claws and remove the rear bumper cover.

  Fig 4: Identifying Claws And Rear Bumper Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR BUMPER SIDE RETAINER LH
1. Using a clip remover, remove the clip.
2. Remove the screw.
3. Disengage the 3 claws and remove the rear bumper side retainer.
REMOVE REAR BUMPER SIDE RETAINER RH
HINT:

Use the same procedure as for the LH side.

Fig 5: Locating Claws And Rear Bumper Side Retainer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR BUMPER SIDE SUPPORT LH
1. Remove the screw.
2. Disengage the 2 claws and remove the rear bumper side support.
REMOVE REAR BUMPER SIDE SUPPORT RH
HINT:

Use the same procedure as for the LH side.

Fig 6: Locating Claws And Rear Bumper Side Support
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR BUMPER CENTER SHIELD BRACKET
HINT:

Use the same procedure to remove all the rear bumper center shield brackets.
1. Disengage the 4 claws and remove the rear bumper center shield bracket.

  Fig 7: Identifying Claws And Rear Bumper Center Shield Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR BUMPER REINFORCEMENT
1. Remove the 4 nuts and rear bumper reinforcement.

  Fig 8: Locating Nuts And Rear Bumper Reinforcement
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR BUMPER ARM SUB-ASSEMBLY LH
1. Remove the 3 bolts and the rear bumper arm.
REMOVE REAR BUMPER ARM SUB-ASSEMBLY RH
HINT:

Use the same procedure as for the LH side

Fig 9: Locating Bolts And Rear Bumper Arm
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
