REAR BUMPER (for Sedan): Installation

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL REAR BUMPER ARM SUB-ASSEMBLY LH
1. Install the rear bumper arm with the 3 bolts.
  Torque: 19 N*m (195 kgf*cm, 14 ft.*lbf)
INSTALL REAR BUMPER ARM SUB-ASSEMBLY RH
HINT:

Use the same procedure as for the LH side.

Fig 1: Locating Bolts And Rear Bumper Arm
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR BUMPER REINFORCEMENT
1. Install the rear bumper reinforcement with the 4 nuts.
  Torque: 19 N*m (195 kgf*cm, 14 ft.*lbf)

  Fig 2: Locating Nuts And Rear Bumper Reinforcement
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR BUMPER CENTER SHIELD BRACKET
HINT:

Use the same procedure to install all the rear bumper center shield brackets.
1. Engage the 4 claws and install the rear bumper center shield bracket.

  Fig 3: Identifying Claws And Rear Bumper Center Shield Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR BUMPER SIDE SUPPORT LH
1. Engage the 2 claws and install the rear bumper side support.
2. Tighten the screw.
INSTALL REAR BUMPER SIDE SUPPORT RH
HINT:

Use the same procedure as for the LH side.

Fig 4: Locating Claws And Rear Bumper Side Support
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR BUMPER SIDE RETAINER LH
1. Engage the 3 claws and install the rear bumper side retainer.
2. Tighten the screw.
3. Install the clip.
INSTALL REAR BUMPER SIDE RETAINER RH
HINT:

Use the same procedure as for the LH side.

Fig 5: Locating Claws And Rear Bumper Side Retainer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR BUMPER COVER
1. Engage the 18 claws and install the rear bumper cover.

  Fig 6: Identifying Claws And Rear Bumper Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Tighten the 2 bolts and the 2 screws.
3. Install the 2 clips.

  Fig 7: Locating Bolts And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the protective tape.

  Fig 8: Applying Protective Tape
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR BUMPER SIDE SEAL LH
1. Install the rear bumper side seal with the 3 clips.
INSTALL REAR BUMPER SIDE SEAL RH
HINT:

Use the same procedure as for the LH side.

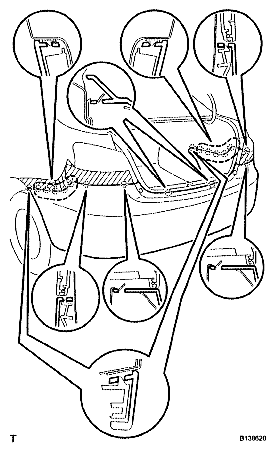

Fig 9: Locating Clips And Rear Bumper Side Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
