REAR BUMPER (for Sedan): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

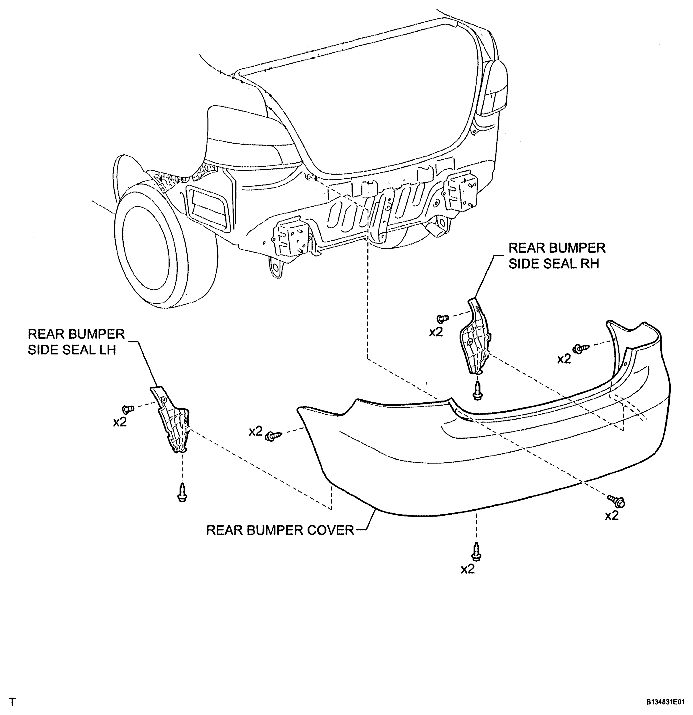

Fig 1: Identifying Rear Bumper Components (1 Of 2)
G04835145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

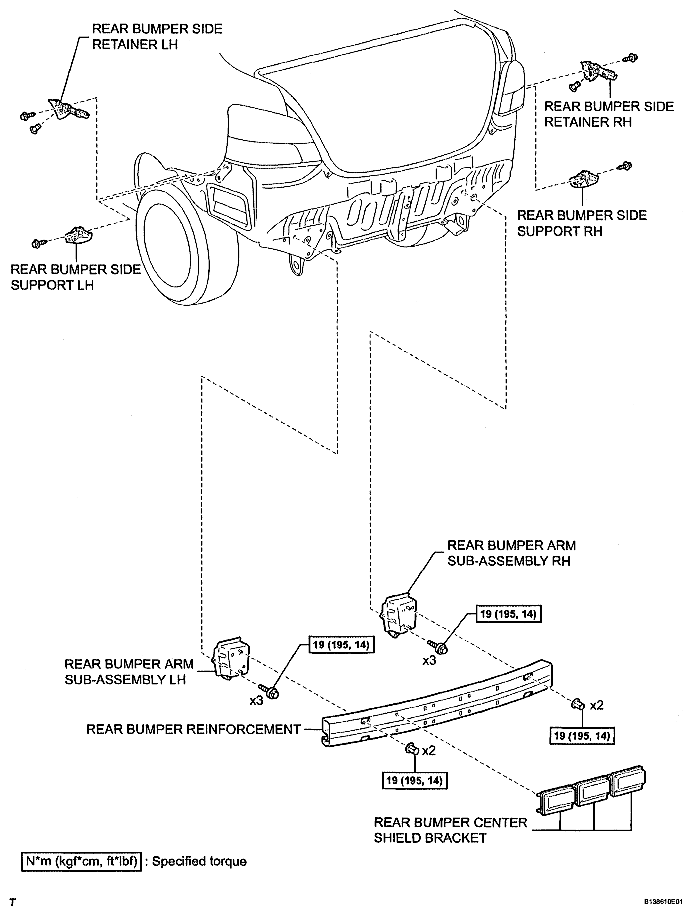

Fig 2: Rear Bumper Replacement Components With Torque Specifications (2 Of 2)
G04835146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
