FRONT DOOR BELT MOLDING (for Sedan): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Front Door Belt Molding Components (1 Of 2)

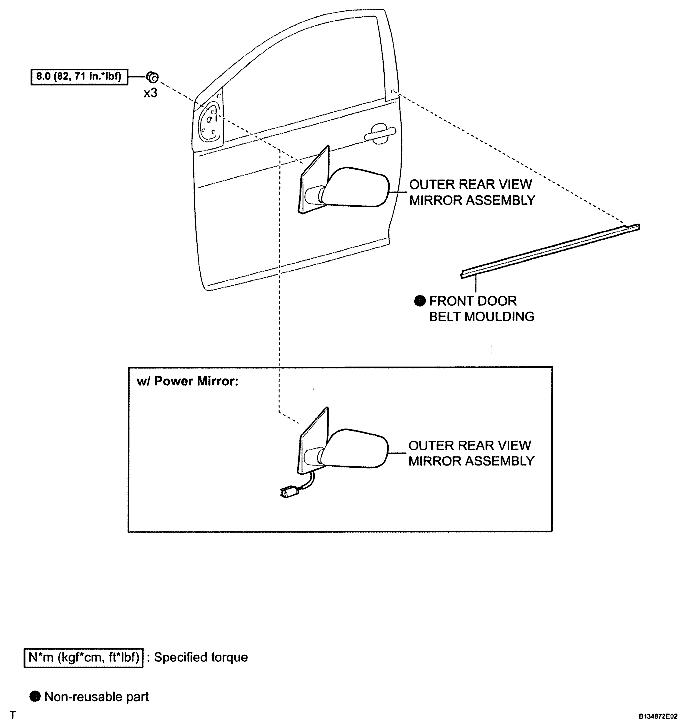

Fig 2: Front Door Belt Molding Replacement Components With Torque Specifications (2 Of 2)
