FRONT DOOR BELT MOLDING (for Hatchback): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

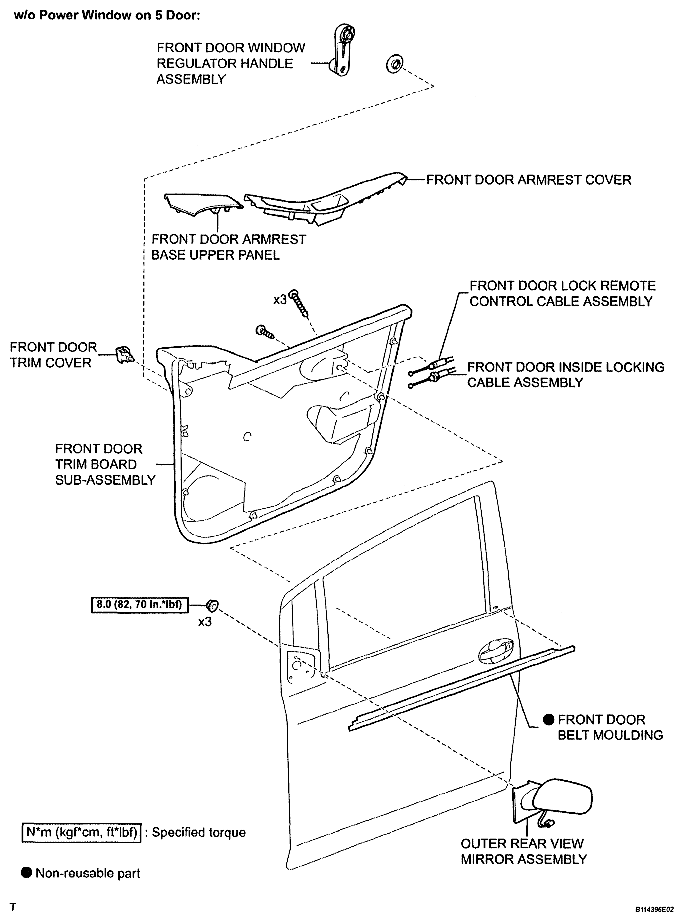

Fig 1: Front Door Belt Molding Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

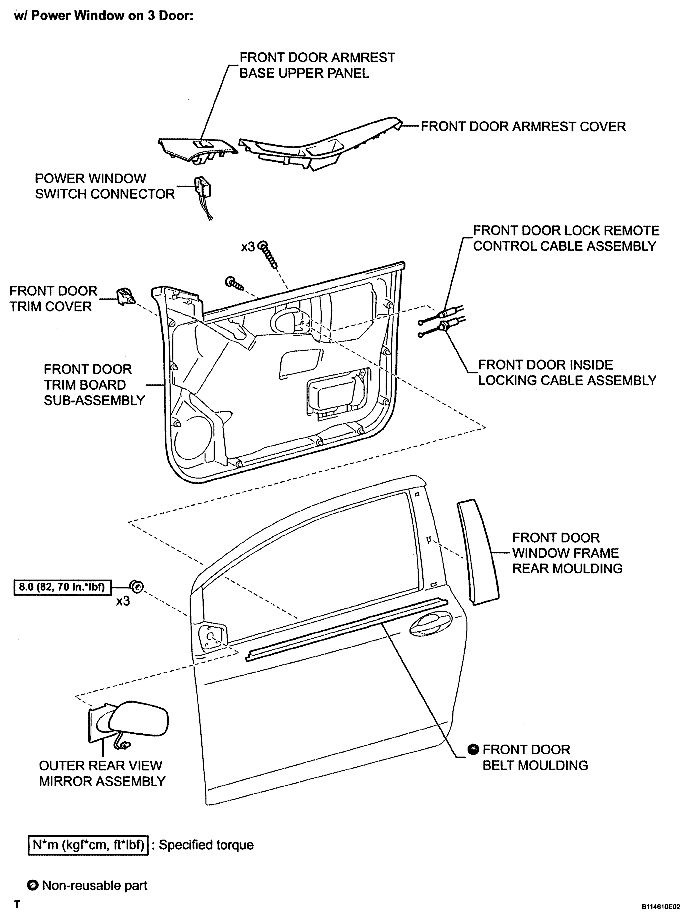

Fig 2: Front Door Belt Molding Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Front Door Belt Molding Replacement Components With Torque Specifications (3 Of 4)

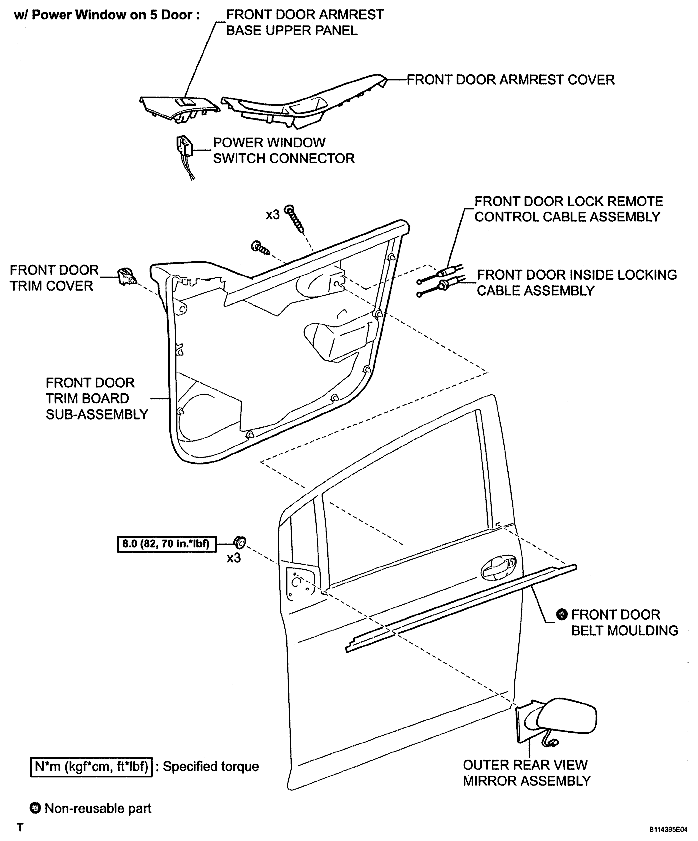

Fig 4: Front Door Belt Molding Replacement Components With Torque Specifications (4 Of 4)
