OUTER REAR VIEW MIRROR (for Hatchback): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

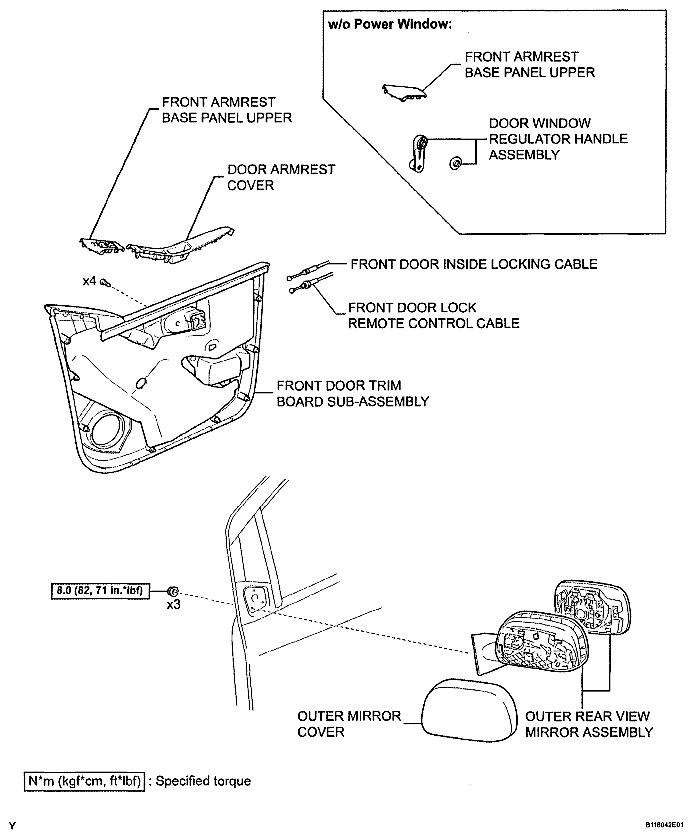

Fig 1: Outer Rear View Mirror Replacement Components (For Hatchback) With Torque Specifications
G04833973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
