UPPER INSTRUMENT PANEL (for Hatchback): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

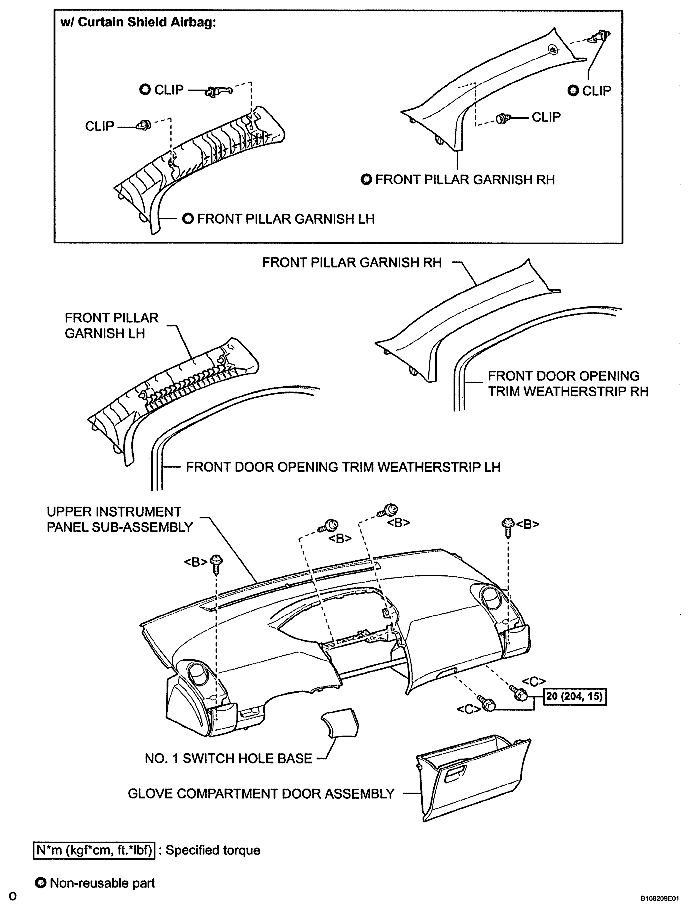

Fig 1: Identifying Upper Instrument Panel Components (For Hatchback) (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Upper Instrument Panel With Torque Specifications (For Hatchback) Replacement Components (2 Of 3)

Fig 3: Identifying Upper Instrument Panel Components (For Hatchback) (3 Of 3)
