REAR CONSOLE BOX (for Sedan): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

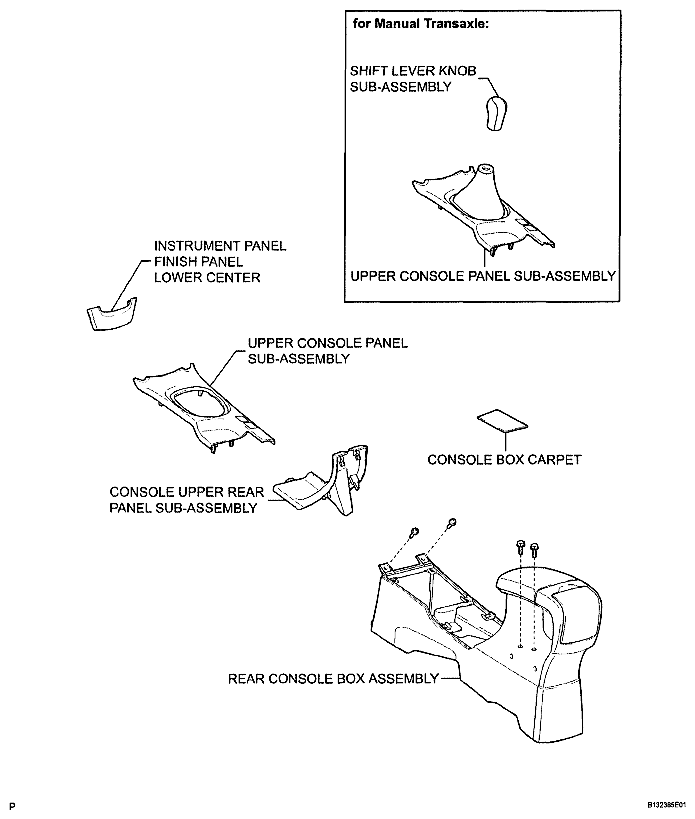

Fig 1: Identifying Rear Console Box Components (Sedan) (1 Of 2)
G04834175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

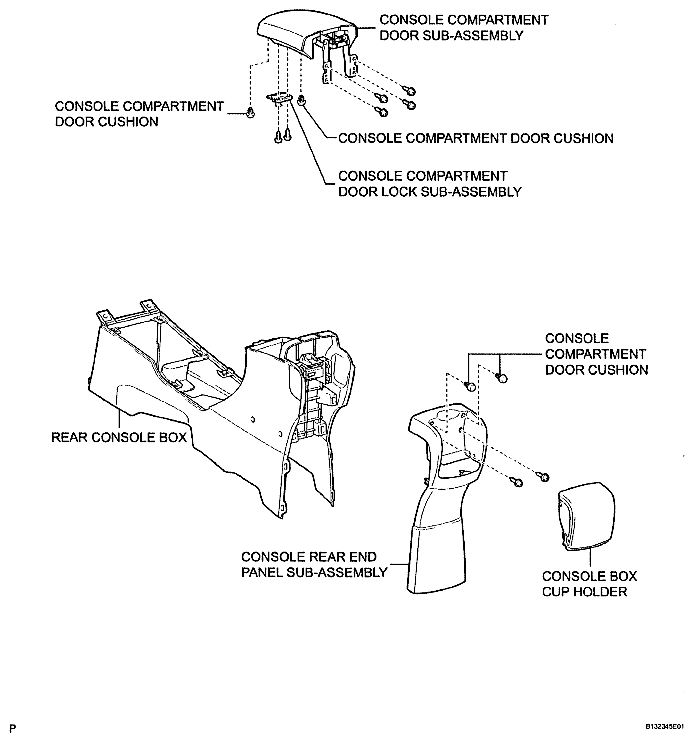

Fig 2: Identifying Rear Console Box Components (Sedan) (2 Of 2)
G04834176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
