LOWER INSTRUMENT PANEL (for Hatchback): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

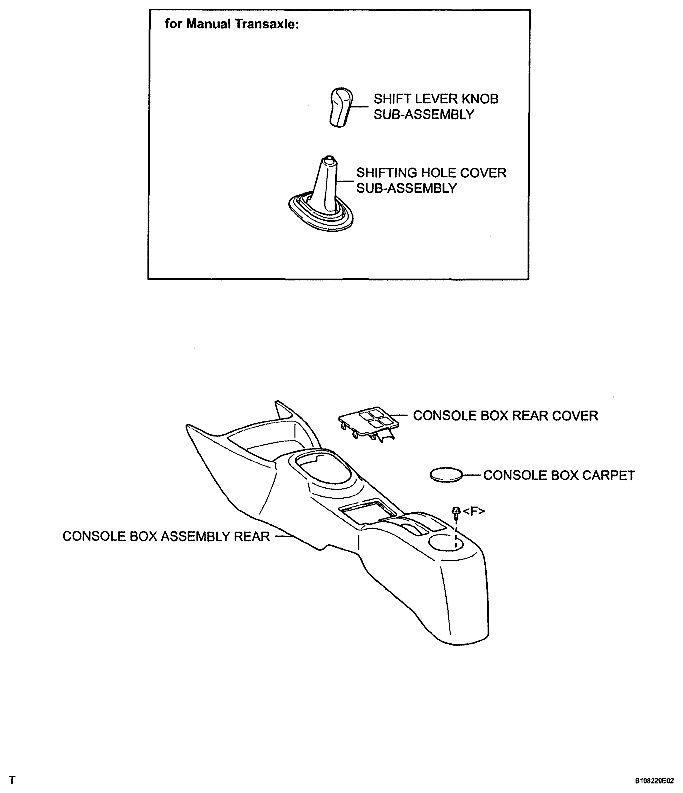

Fig 1: Identifying Lower Instrument Panel Components (Hatchback) (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

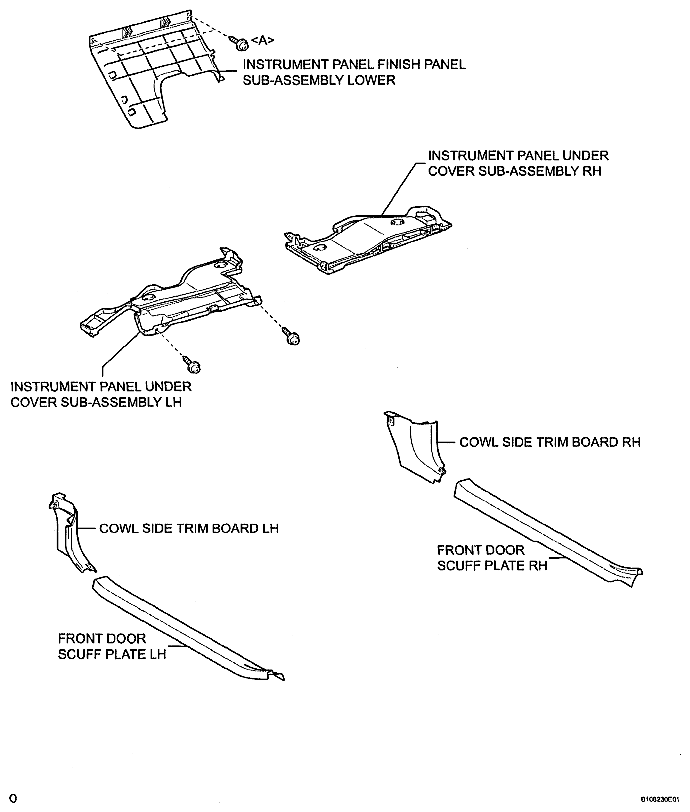

Fig 2: Identifying Lower Instrument Panel Components (Hatchback) (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

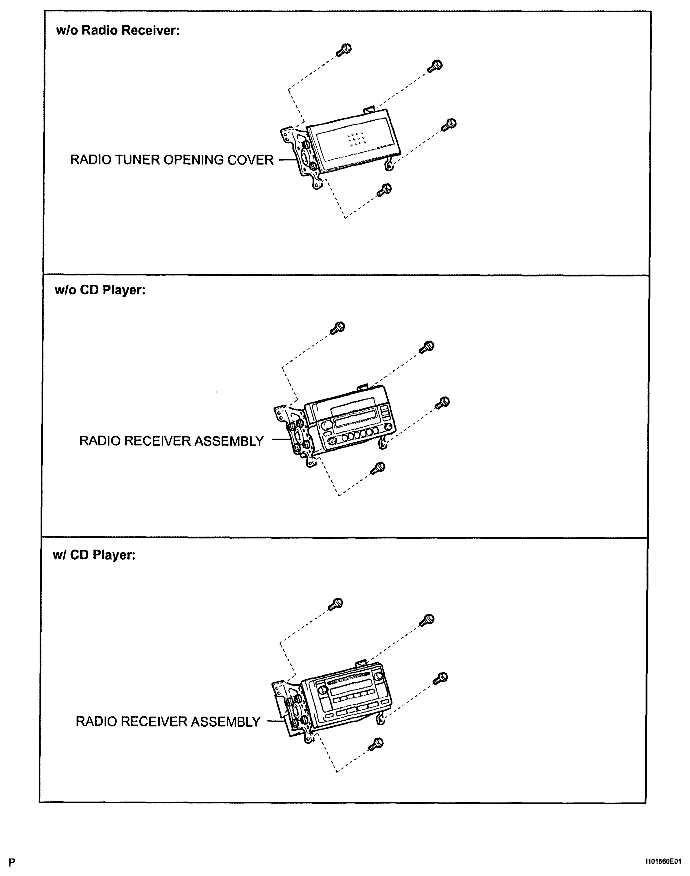

Fig 3: Upper Instrument Panel With Torque Specifications (For Hatchback) Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

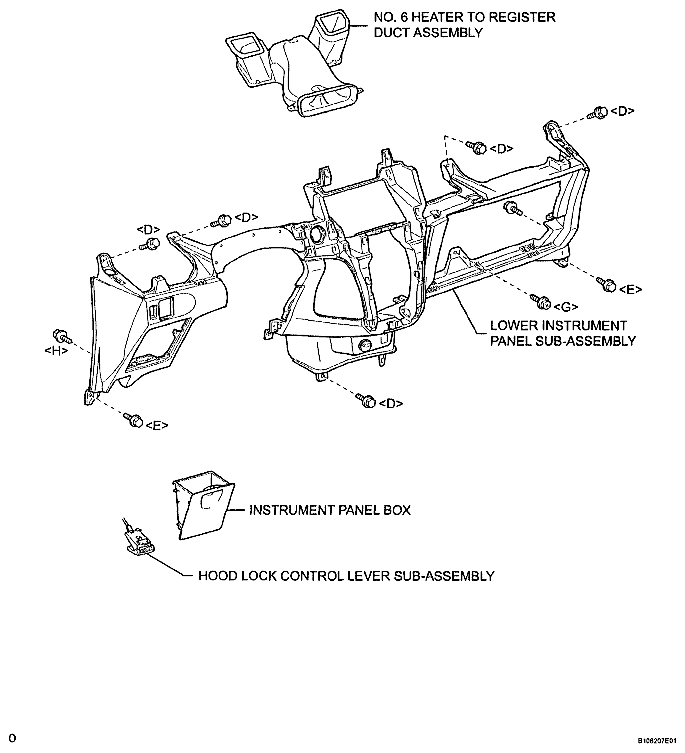

Fig 4: Identifying Lower Instrument Panel Components (Hatchback) (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

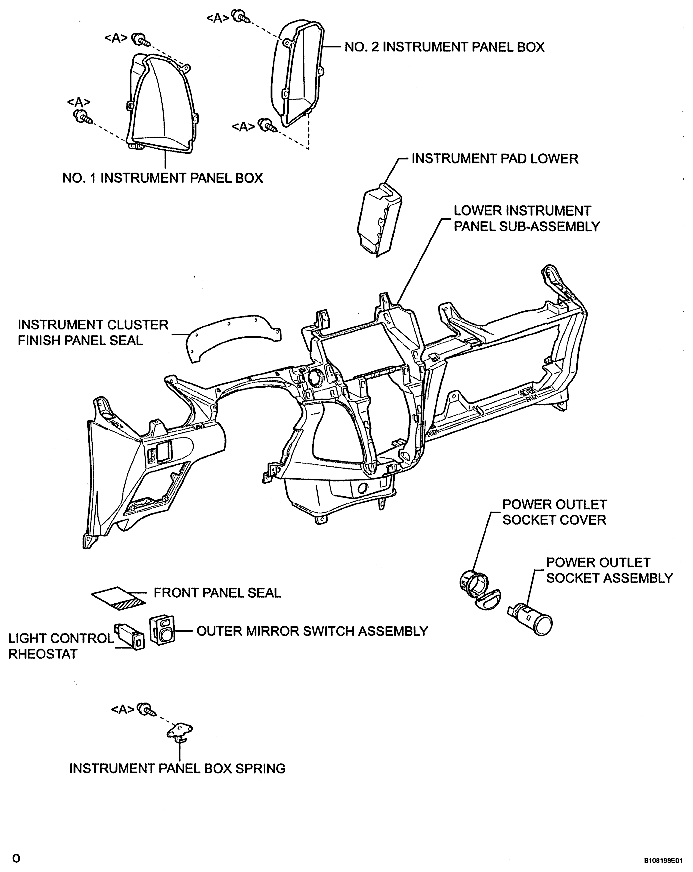

Fig 5: Identifying Lower Instrument Panel Components (Hatchback) (5 Of 7)

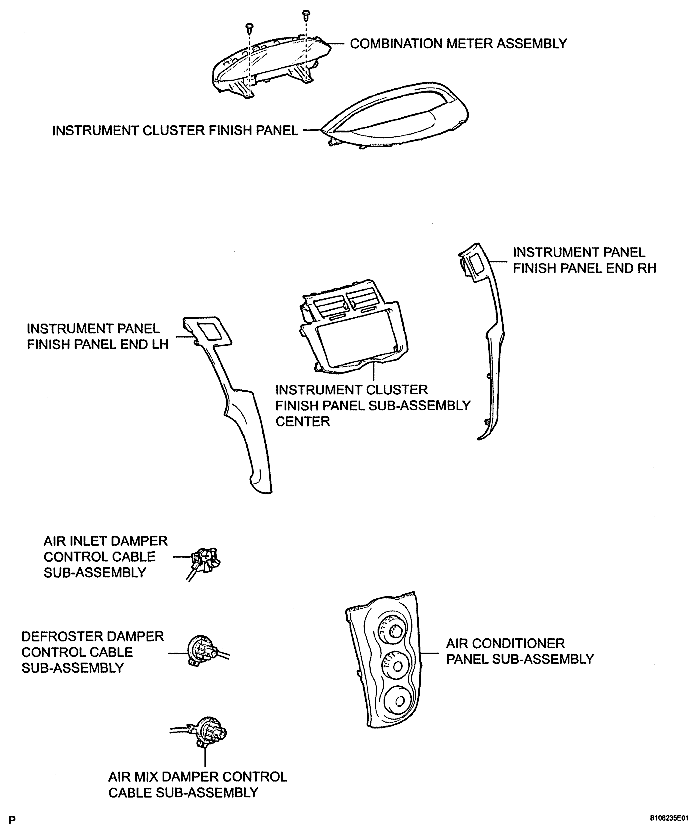

Fig 6: Identifying Lower Instrument Panel Components (Hatchback) (6 Of 7)

Fig 7: Identifying Lower Instrument Panel Components (Hatchback) (7 Of 7)
