REAR DOOR (for Sedan): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

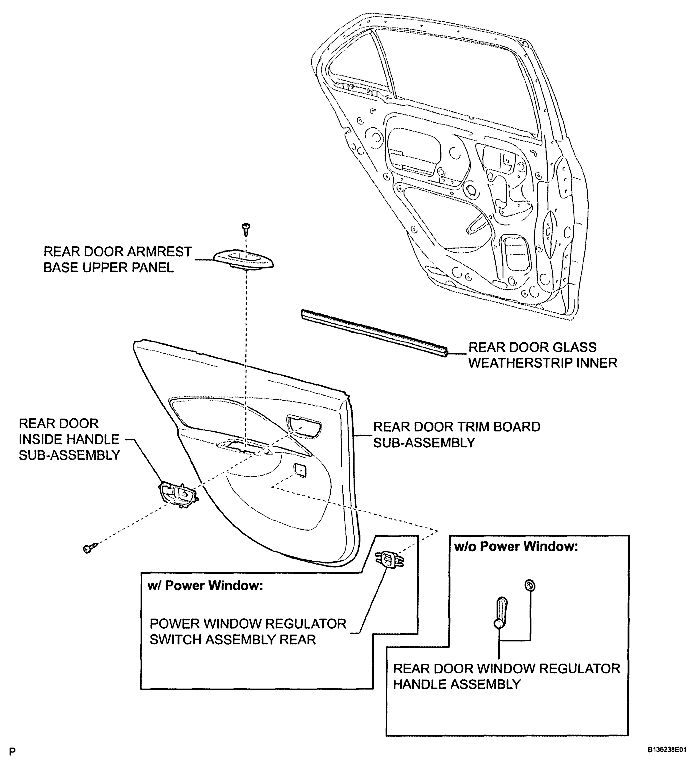

Fig 1: Identifying Rear Door Components - For Sedan (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

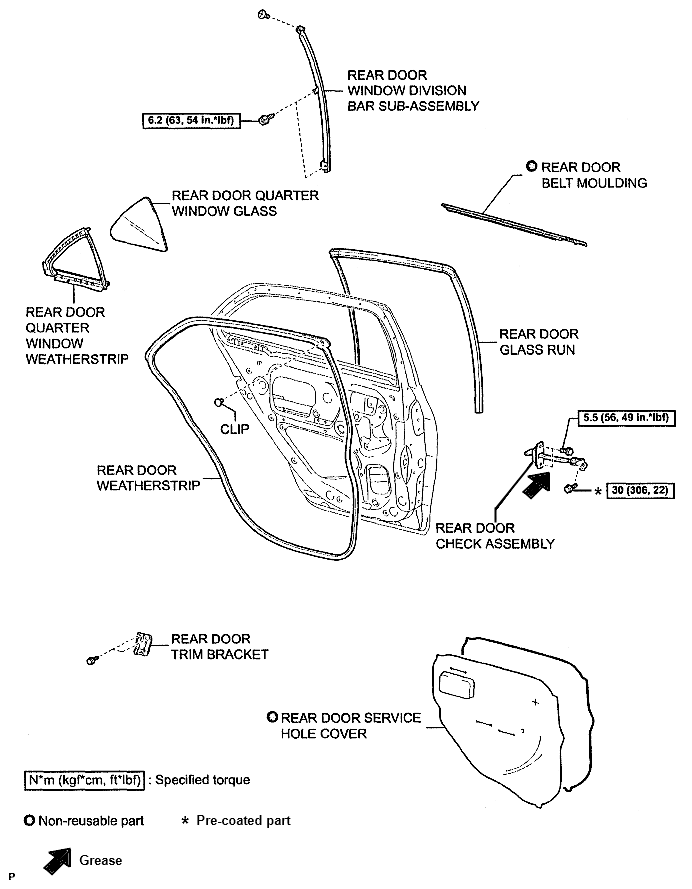

Fig 2: Rear Door Replacement Components - For Sedan (2 Of 3) With Torque Specifications

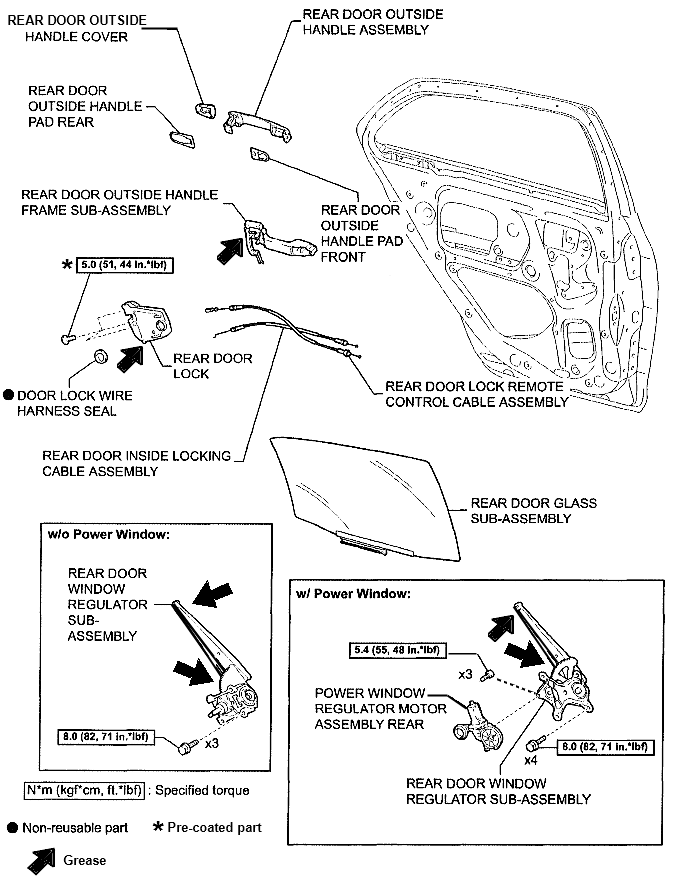

Fig 3: Rear Door Replacement Components - For Sedan (3 Of 3) With Torque Specifications
