REAR DOOR (for Sedan): Adjustment

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Before adjusting the door position on vehicles equipped with side airbags and curtain shield airbags, be sure to disconnect the battery. After the adjustment, inspect the SRS warning light, the side airbag system and the curtain shield airbag system for normal operation. Then initialize both airbag systems.
Use the same procedure for the RH and LH sides.
The procedures described below are for the LH side.
Centering bolts are used to mount the door hinge onto the vehicle body and door. The door cannot be adjusted with the centering bolts on. Substitute standard bolts (with washers) for the centering bolts when making adjustments.
For bolts without torque specifications, check the standard bolt table (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

Fig 1: Identifying Centering Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT REAR DOOR

Check that the clearance measurements are within the standard ranges.

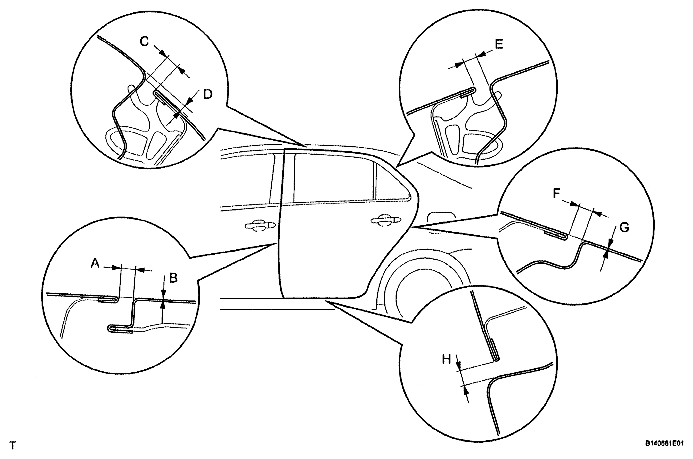

Fig 2: Identifying Rear Door Clearance

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard

AREA MEASUREMENT TABLE

Area	Measurement
A	3.3 to 6.3 mm (0.130 to 0.248 in.)
B	-1.5 to 1.5 mm (-0.059 to 0.059 in.)
C	3.2 to 6.2 mm (0.126 to 0.244 in.)
D	1.3 to 4.3 mm (0.051 to 0.169 in.)
E	2.5 to 5.5 mm (0.098 to 0.217 in.)
F	2.5 to 5.5 mm (0.098 to 0.217 in.)
G	-1.5 to 1.5 mm (-0.059 to 0.059 in.)
H	4.2 to 7.2 mm (0.165 to 0.283 in.)

ADJUST REAR DOOR
1. Disconnect the cable from the negative battery terminal.
  Wait for at least 90 seconds after disconnecting the cable to prevent the airbag from working.
2. Adjust the door horizontally and vertically by loosening the body side hinge bolts.
3. Tighten the body side hinge bolts after the adjustment.
  Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

  Fig 3: Adjusting Body Side Hinge
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Adjust the door horizontally and vertically by loosening the door side hinge bolts.
5. Tighten the door side hinge bolts after the adjustment.
  Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

  Fig 4: Adjusting Door Side Hinge
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Using "Torx" socket wrench T40, adjust the striker position by slightly loosening the striker mounting screws and hitting the striker with a plastic-faced hammer.
7. Using "Torx" socket wrench T40, tighten the striker mounting screws after the adjustment.
  Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)
8. Connect the cable to the negative battery terminal.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  Fig 5: Adjusting Striker
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
