FRONT DOOR (for Sedan): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

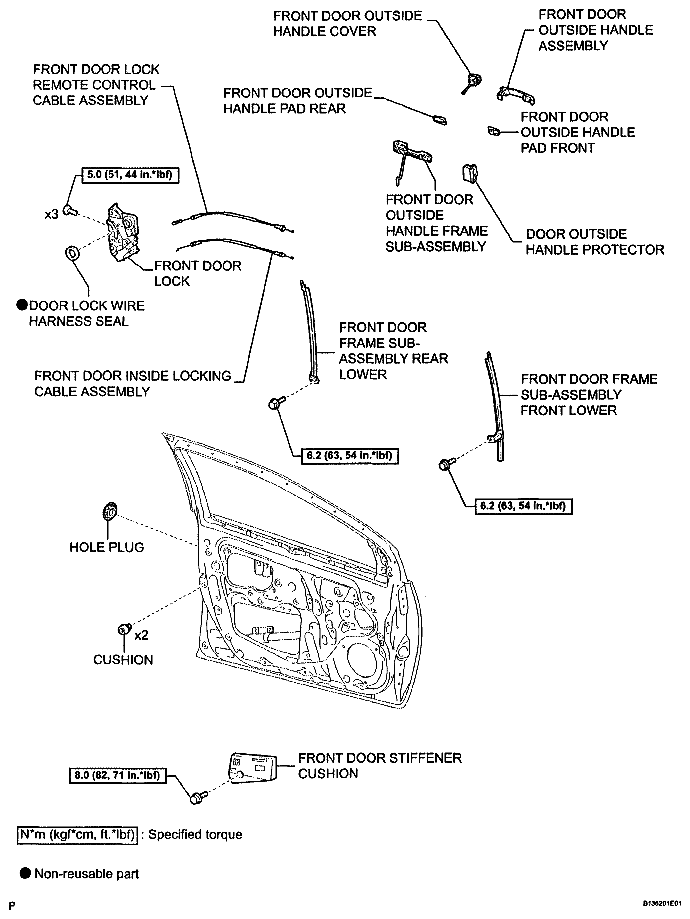

Fig 1: Identifying Front Door Components - For Sedan (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

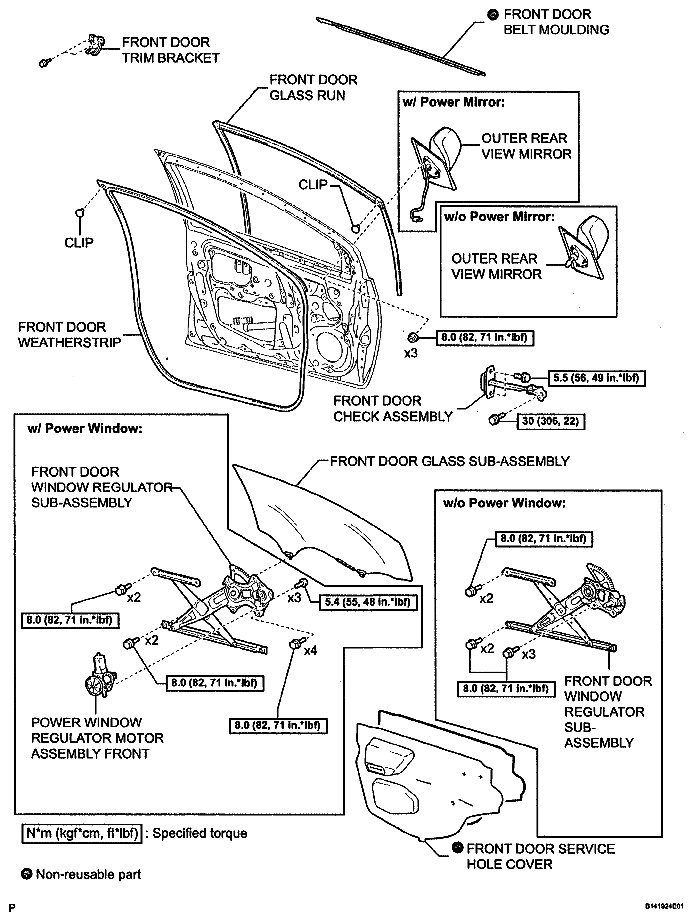

Fig 2: Identifying Front Door Components - For Sedan (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

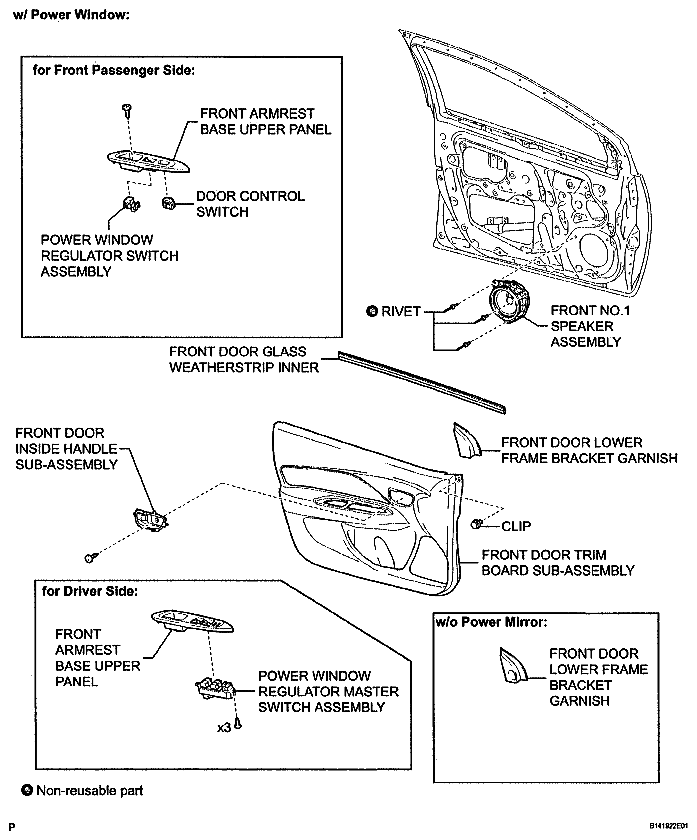

Fig 3: Front Door Replacement Components - For Sedan (3 Of 4) With Torque Specifications

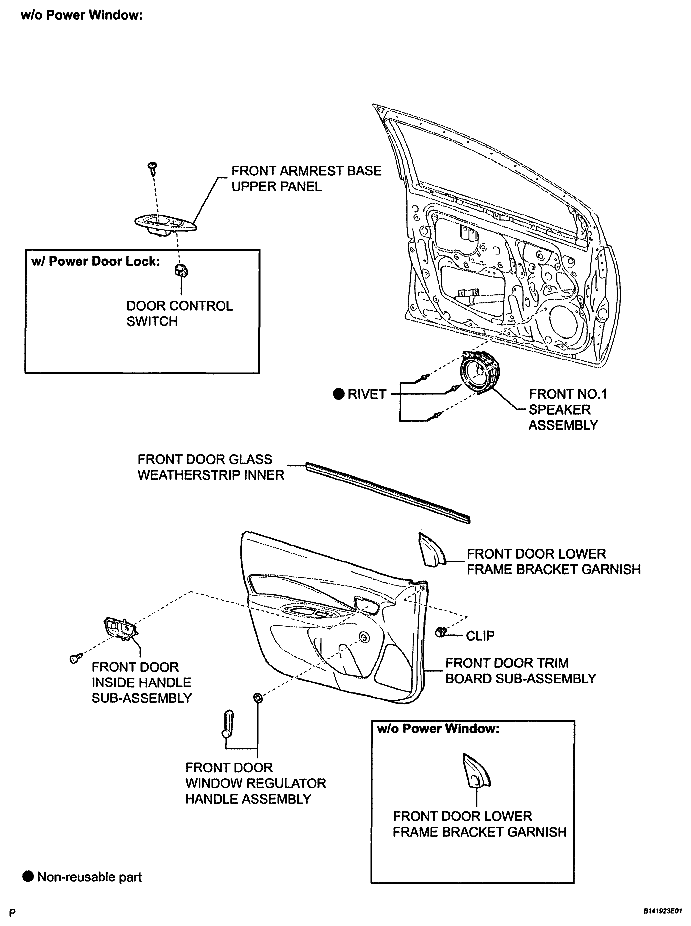

Fig 4: Front Door Replacement Components - For Sedan (4 Of 4) With Torque Specifications
