BACK DOOR (for Hatchback): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

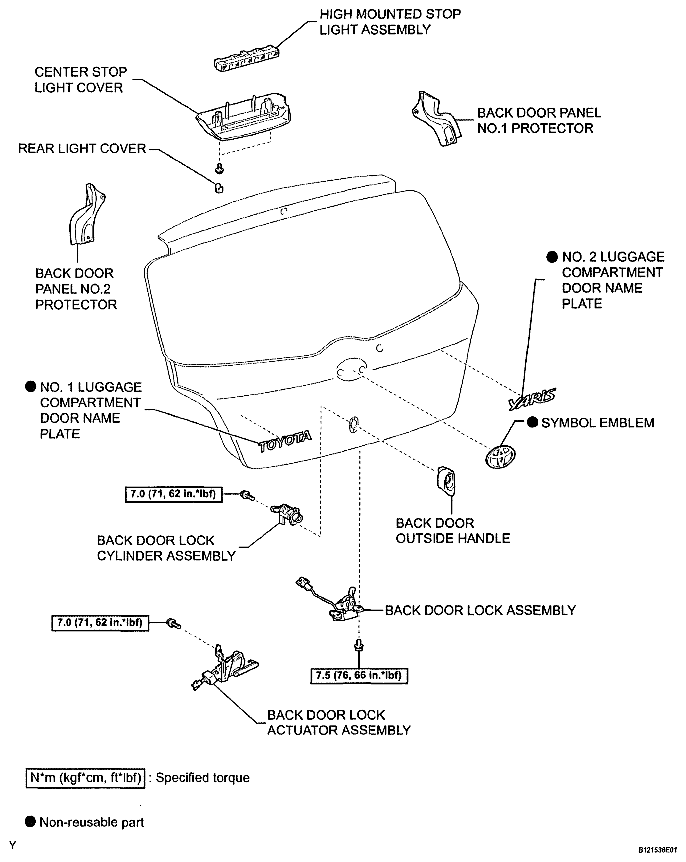

Fig 1: Back Door Replacement Components - For Hatchback (1 Of 3) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

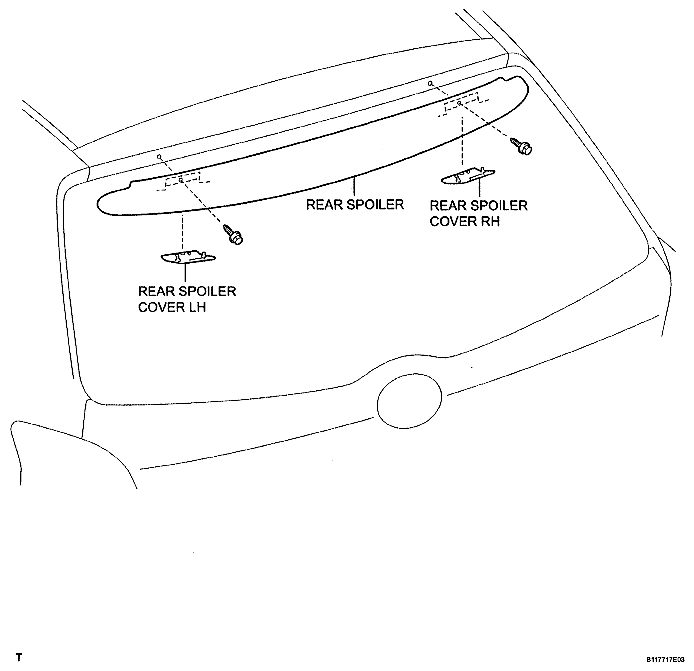

Fig 2: Back Door Replacement Components - For Hatchback (2 Of 3) With Torque Specifications

Fig 3: Identifying Back Door Components - For Hatchback (3 Of 3)
