BACK DOOR (for Hatchback): Adjustment

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Centering bolts are used to mount the door hinge onto the vehicle body and door. The door cannot be adjusted with the centering bolts on. Substitute standard bolts (with washers) for the centering bolts when making adjustments.
For bolts without torque specifications, check the standard bolt table (See SPECIFIED TORQUE FOR STANDARD BOLTS ).

Fig 1: Identifying Centering Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT BACK DOOR

Check that the clearance measurements are within the standard ranges.

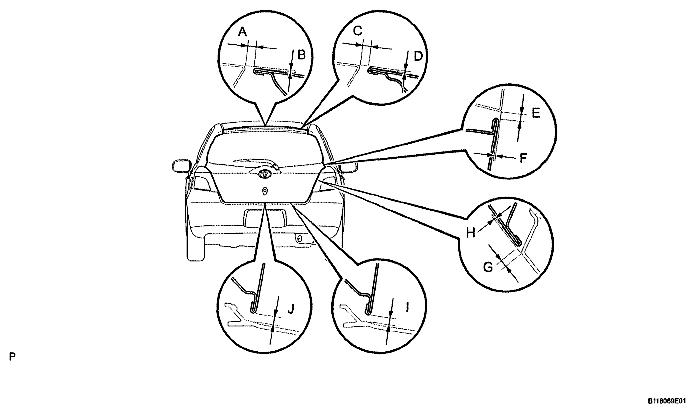

Fig 2: Identifying Back Door Clearance

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard

AREA MEASUREMENT TABLE

Area	Measurement
A	4.5 to 7.5 mm (0.177 to 0.295 in.)
B	-0.5 to 2.5 mm (-0.020 to 0.098 in.)
C	4.5 to 7.5 mm (0.177 to 0.295 in.)
D	-0.6 to 2.4 mm (-0.024 to 0.094 in.)
E	3.6 to 6.6 mm (0.142 to 0.260 in.)
F	-1.5 to 1.5 mm (-0.059 to 0.059 in.)
G	3.05 to 7.05 mm (0.120 to 0.278 in.)
H	-1.5 to 1.5 mm (-0.059 to 0.059 in.)
I	4.05 to 8.05 mm (0.159 to 0.317 in.)
J	4.15 to 8.15 mm (0.163 to 0.321 in.)

ADJUST BACK DOOR
1. Adjust the door position.
  1. Horizontally and vertically adjust the door by loosening the door side hinge bolts.
    Torque: 12 N*m (122 kgf*cm, 8.9 ft.*lbf)

    Fig 3: Adjusting Door Side Hinge
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Adjust the striker position.
  1. Adjust the striker position by slightly loosening the striker mounting bolts and hitting the striker with a plastic hammer.
  2. Tighten the striker mounting bolts after the adjustment.
    Torque: 12 N*m (122 kgf*cm, 8.9 in.*lbf)
