Parts Location

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

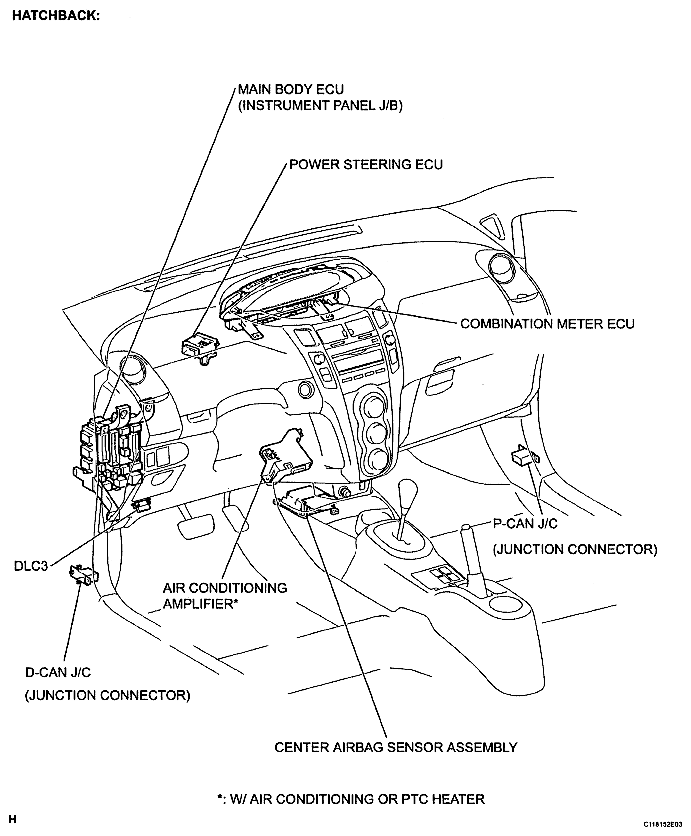

Fig 1: Identifying CAN Communication System Parts Location - Hatchback

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

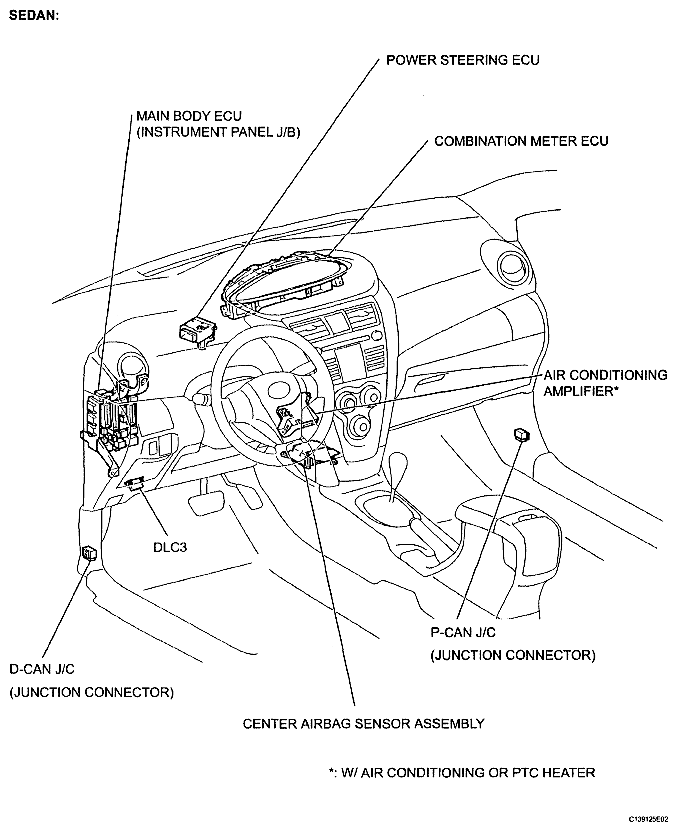

Fig 2: Identifying CAN Communication System Parts Location - Sedan

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

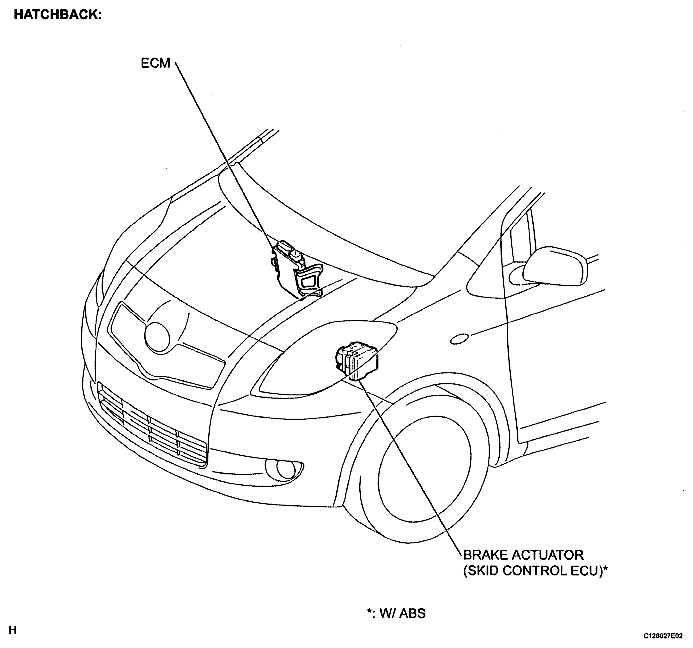

Fig 3: Identifying CAN Communication System Parts Location - Hatchback

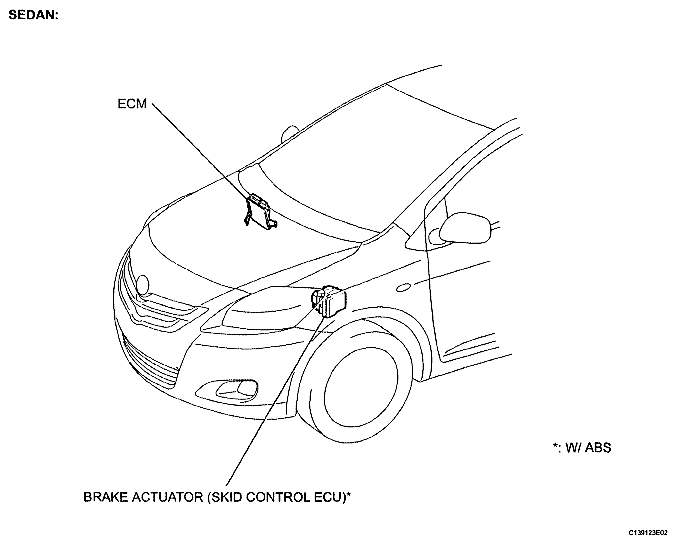

Fig 4: Identifying CAN Communication System Parts Location - Sedan
