Taillight Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

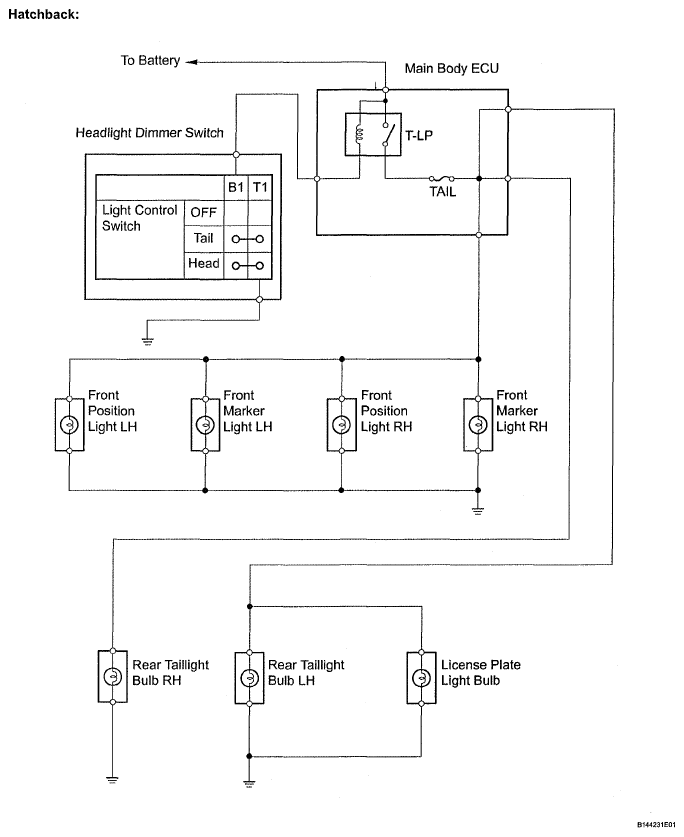

Fig 1: Taillight Circuit Diagram (Hatchback)
G04832707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

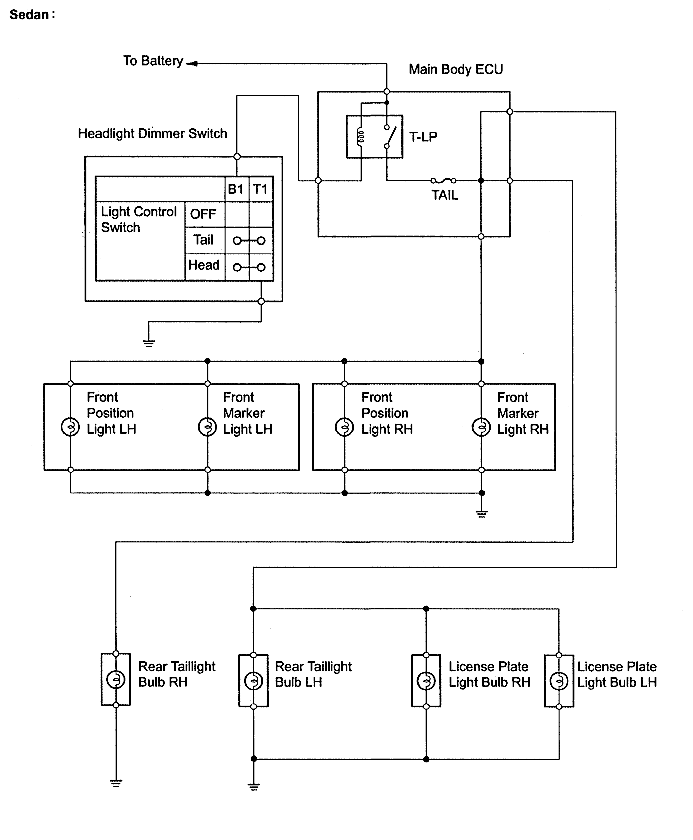

Fig 2: Taillight Circuit Diagram (Sedan W/Front Fog Light)
G04832708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

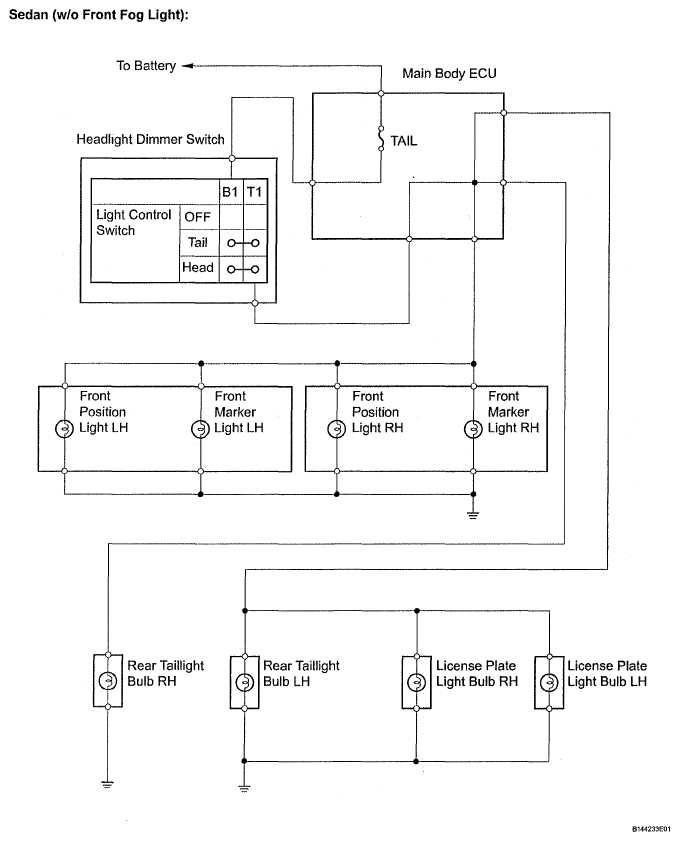

Fig 3: Taillight Circuit Diagram (Sedan W/O Front Fog Light)
G04832709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
