HEADLIGHT ASSEMBLY (for Hatchback): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

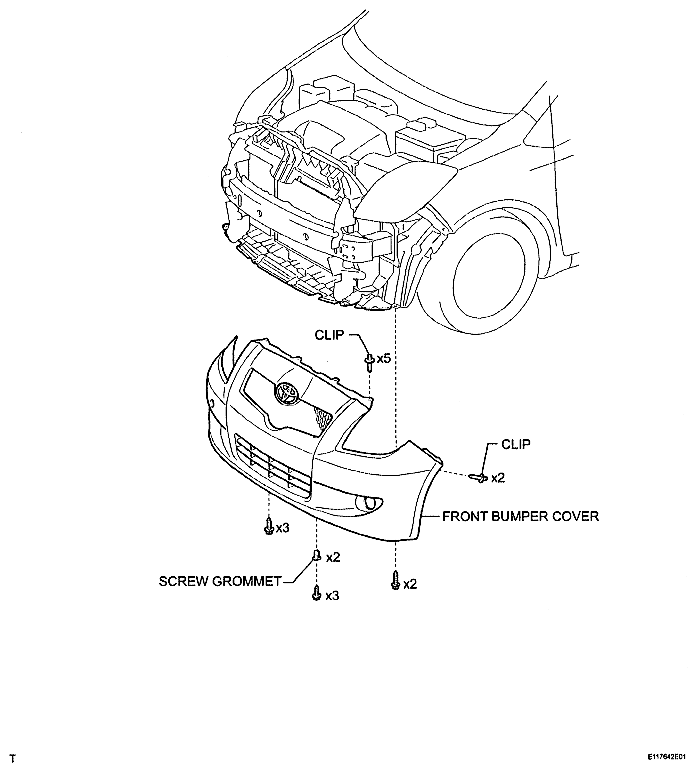

Fig 1: Identifying Headlight Assembly Components (1 Of 2)
G04832775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

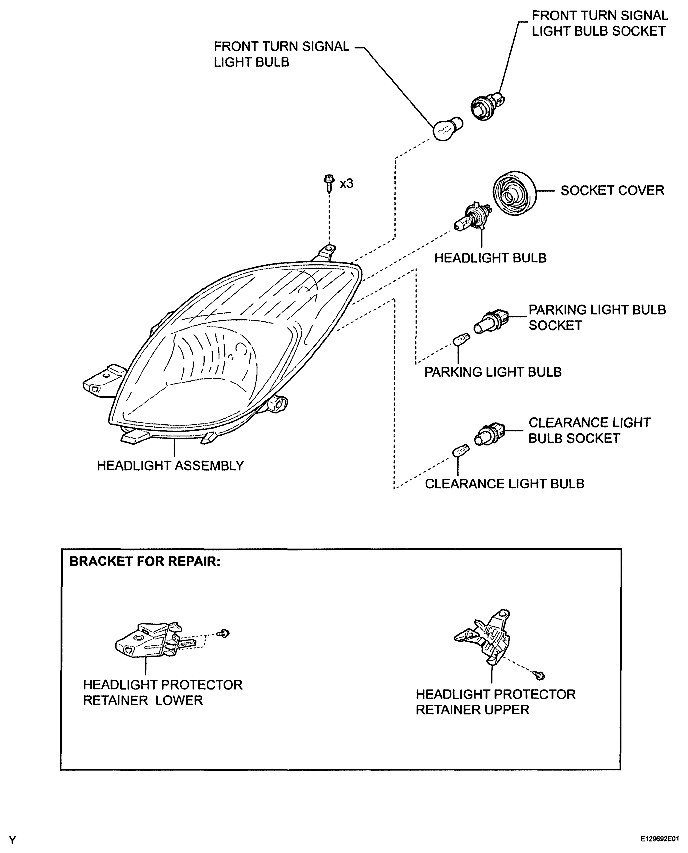

Fig 2: Identifying Headlight Assembly Components (2 Of 2)
G04832776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
