HAZARD WARNING SWITCH (for Sedan): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

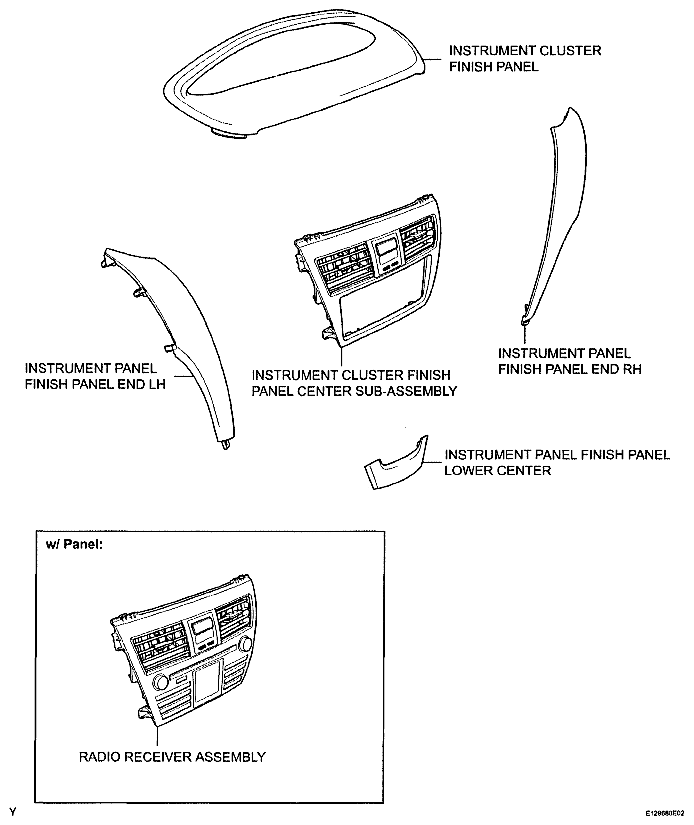

Fig 1: Identifying Hazard Warning Switch Components (1 Of 2)
G04832942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

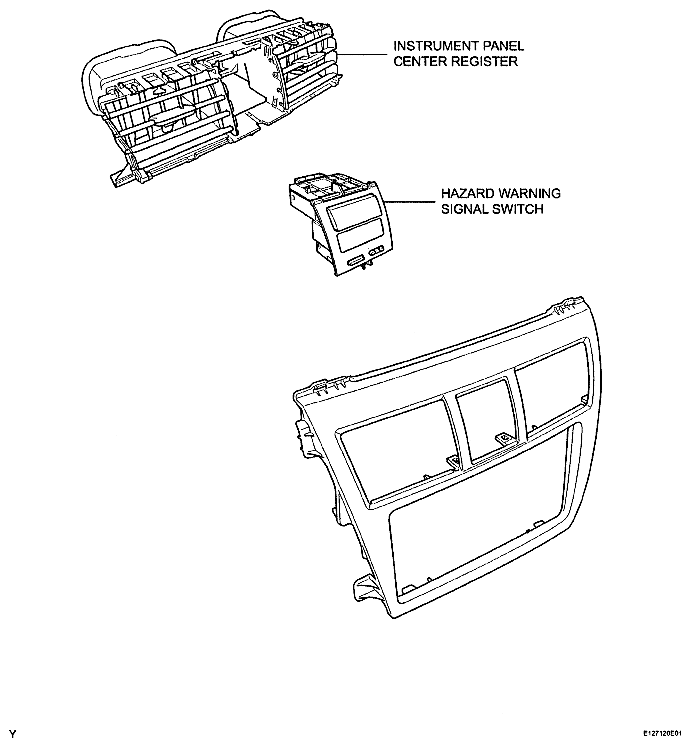

Fig 2: Identifying Hazard Warning Switch Components (2 Of 2)
G04832943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
