FOG LIGHT RELAY (for Sedan): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

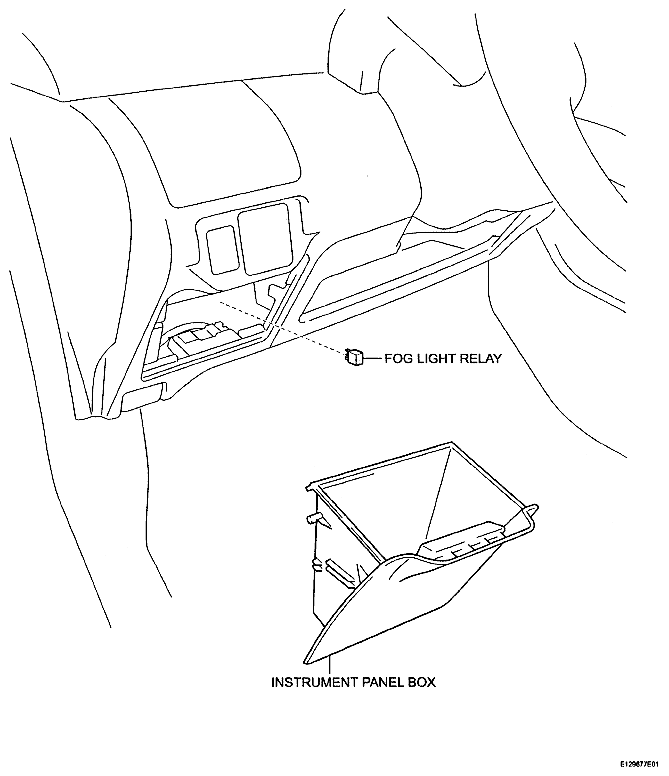

Fig 1: Identifying Fog Light Relay Components
G04833004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
