System Diagram

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

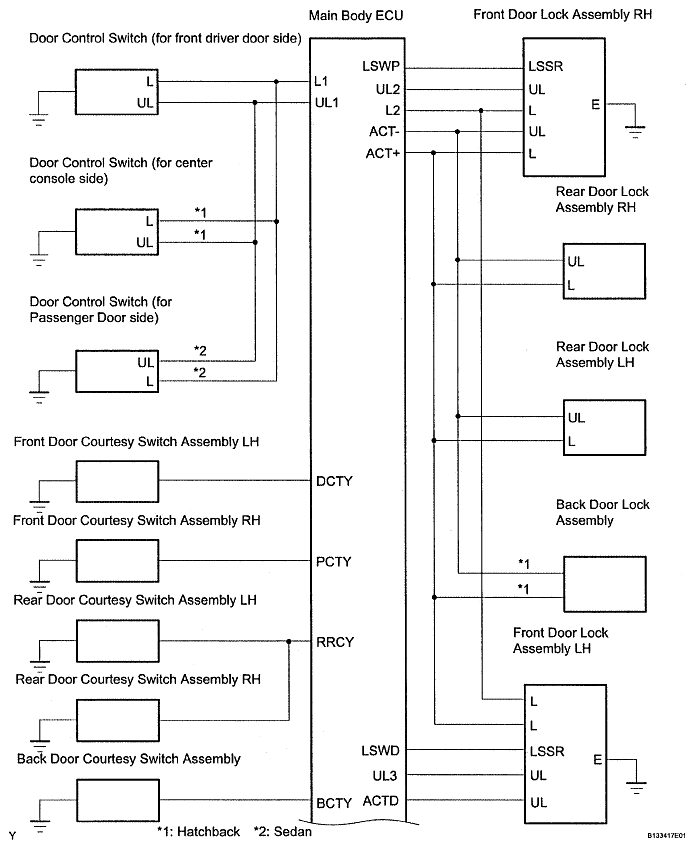

Fig 1: Power Door Lock - System Diagram (1 Of 2)
G04833146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Power Door Lock - System Diagram (2 Of 2)
G04833147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
