Parts Location

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

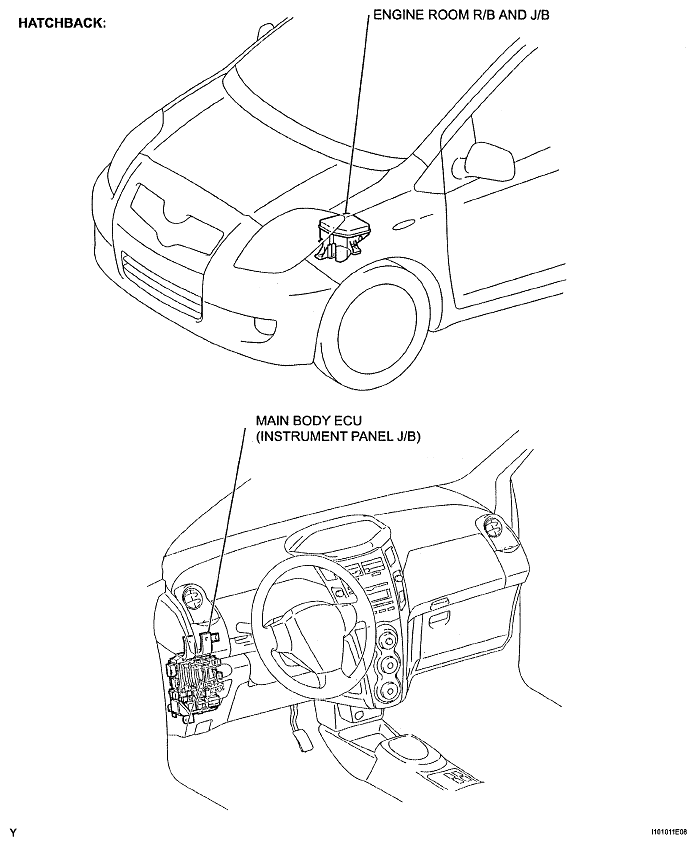

Fig 1: Identifying Power Door Lock Control System Components Location (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

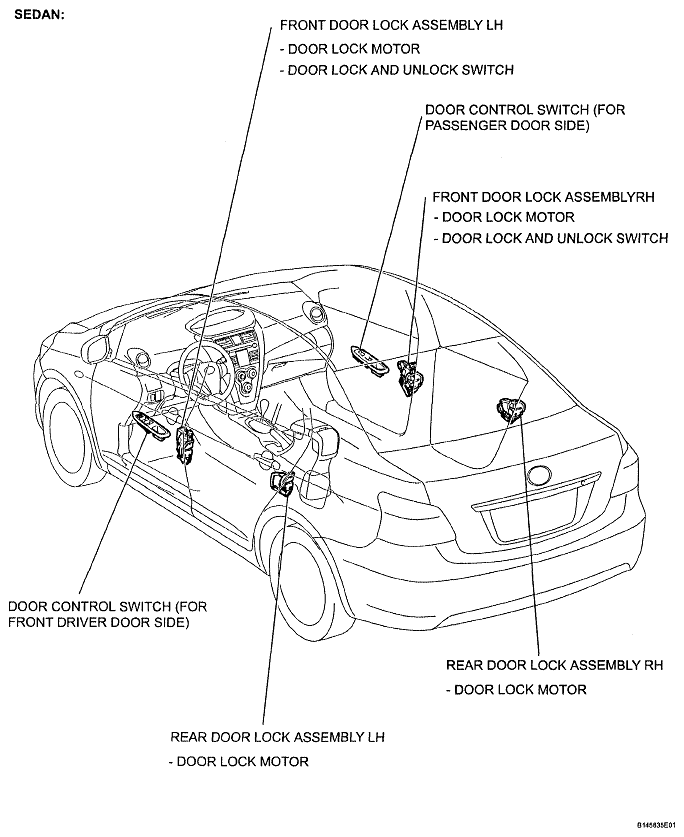

Fig 2: Identifying Power Door Lock Control System Components Location (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

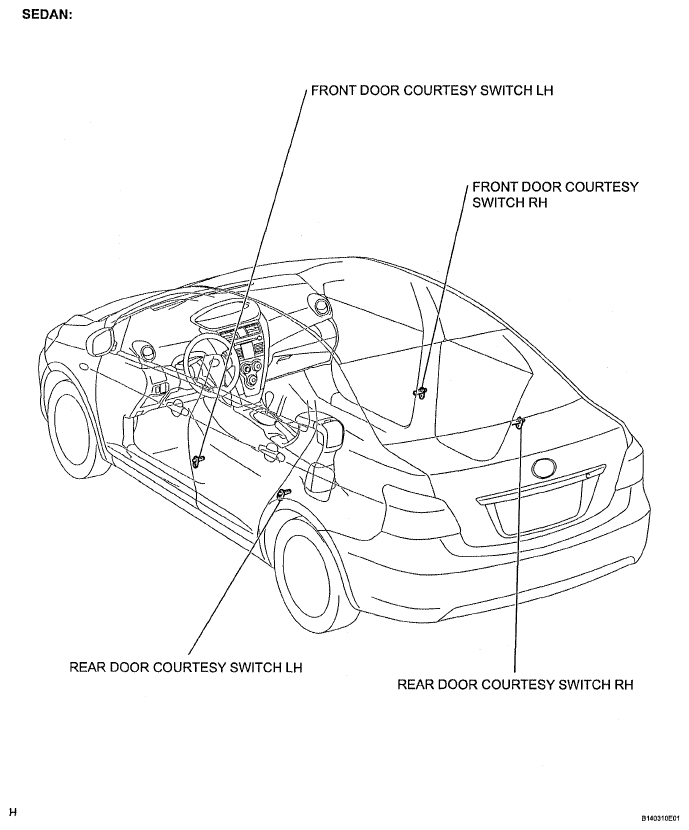

Fig 3: Identifying Power Door Lock Control System Components Location (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

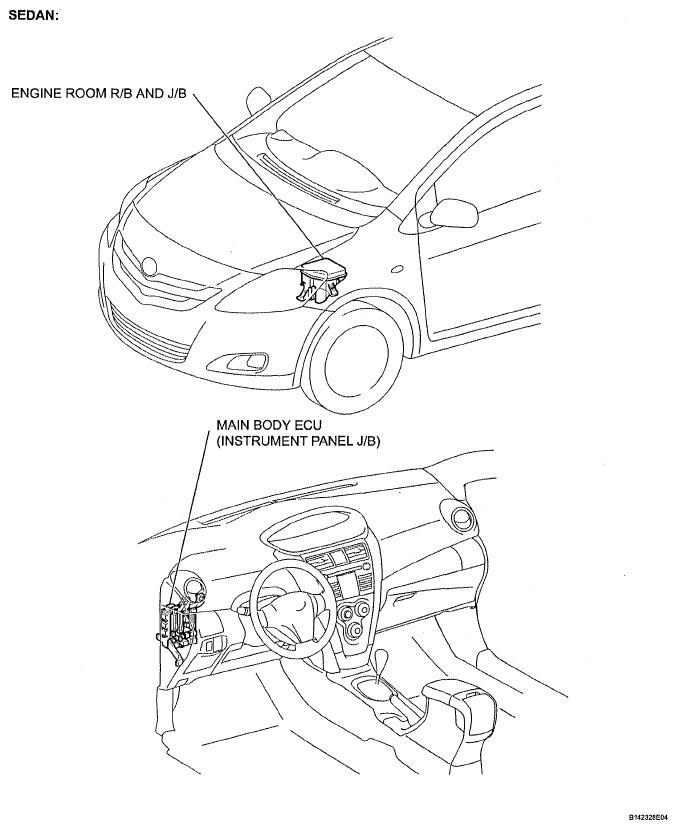

Fig 4: Identifying Power Door Lock Control System Components Location (4 Of 6)

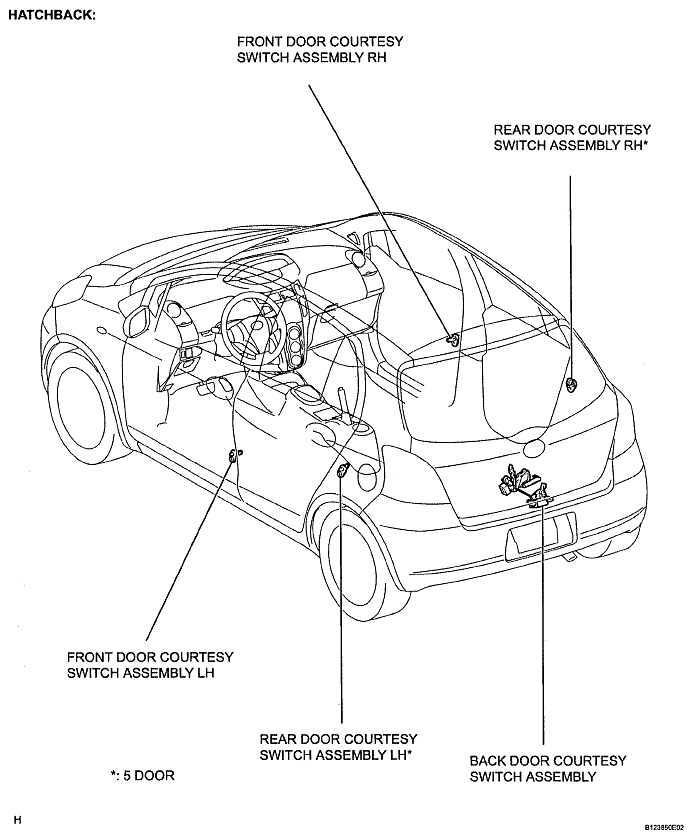

Fig 5: Identifying Power Door Lock Control System Components Location (5 Of 6)

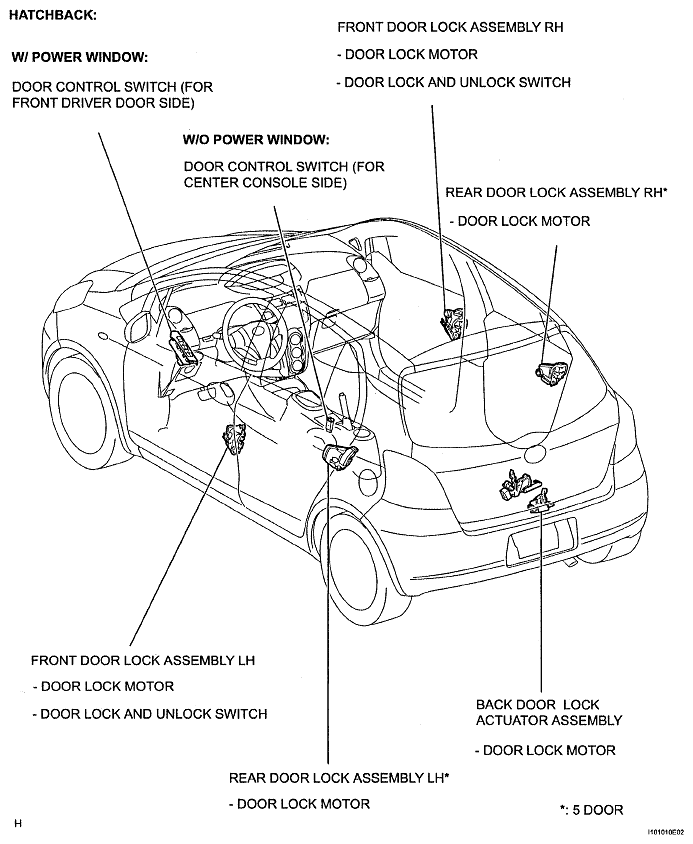

Fig 6: Identifying Power Door Lock Control System Components Location (6 Of 6)
