CHECK COMBINATION METER ASSEMBLY

Using the tester probes, touch the terminals from the back of the vehicle wire harness connectors, and measure the voltages and resistances of each terminal.

Fig 1: Identifying Terminals Of ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard:

CONNECTOR TERMINAL VOLTAGE REFERENCE CHART

Symbols (Terminal No.)	Wiring Color	Terminal Description	Condition	Specified Condition
IG2 (D1-1)-Body ground	B - Body ground	Ignition switch signal	Ignition switch OFF --> ON	Below 1 V --> 11 to 14 V
ECUB (D1-2)-Body ground	L - Body ground	Battery	Always	11 to 14 V
CANH (D1-20)-Body ground	G - Body ground	CAN communication line	Ignition switch ON	Pulse generation
CANL (D1-21)-Body ground	W - Body ground	CAN communication line	Ignition switch ON	Pulse generation
ET (D1-24) - Body ground	BR - Body ground	Ground	Always	Below 1 Ω

CHECK MAIN BODY ECU

Using the tester probes, touch the terminals from the back of the vehicle wire harness connectors, and measure the voltages and resistances of each terminal.

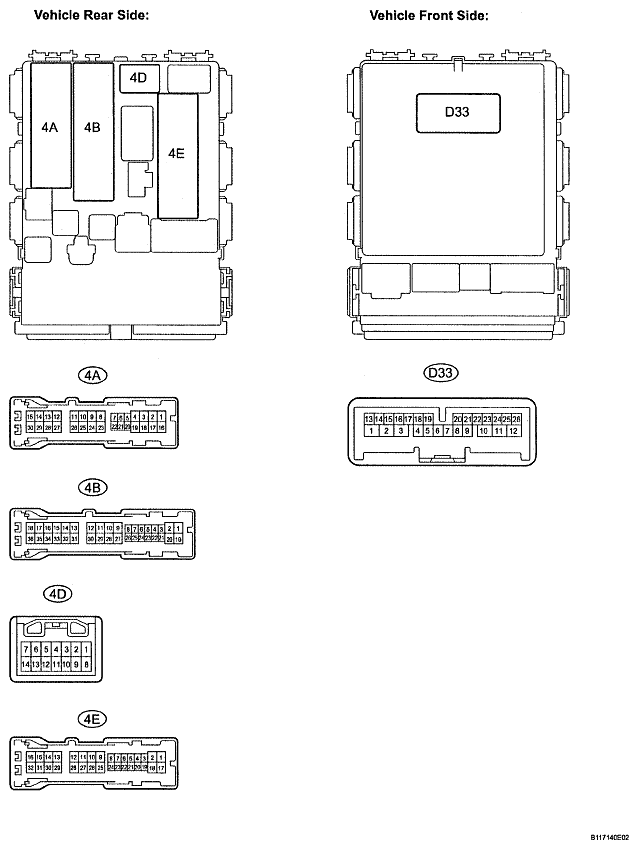

Fig 2: Identifying Main Body ECU Connector Terminal

Standard:

CONNECTOR TERMINAL VOLTAGE SPECIFICATIONS

Symbols (Terminal No.)	Wiring Color	Terminal Description	Condition	Specified Condition
KSW (4D-7) - Body ground	Y - Body ground	Key unlock warning switch input	Key inserted --> Key removed from ignition key cylinder	Below 1 V --> 11 to 14 V
GND1 (4E-17)-Body ground	W-B - Body ground	Ground	Always	Below 1 Ω
BECU (4B-30) - Body ground	L - Body ground	Battery	Always	11 to 14 V
DCTY (4A-21)-Body ground	R - Body ground	Driver door courtesy switch input	Driver door closed --> open	11 to 14 V --> Below 1 V
CANL (D33-22) - Body ground	W - Body ground	CAN communication line	Ignition switch ON	Pulse generation
CANH (D33-23) - Body ground	R - Body ground	CAN communication line	Ignition switch ON	Pulse generation
