FRONT DOOR LOCK (for Sedan): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

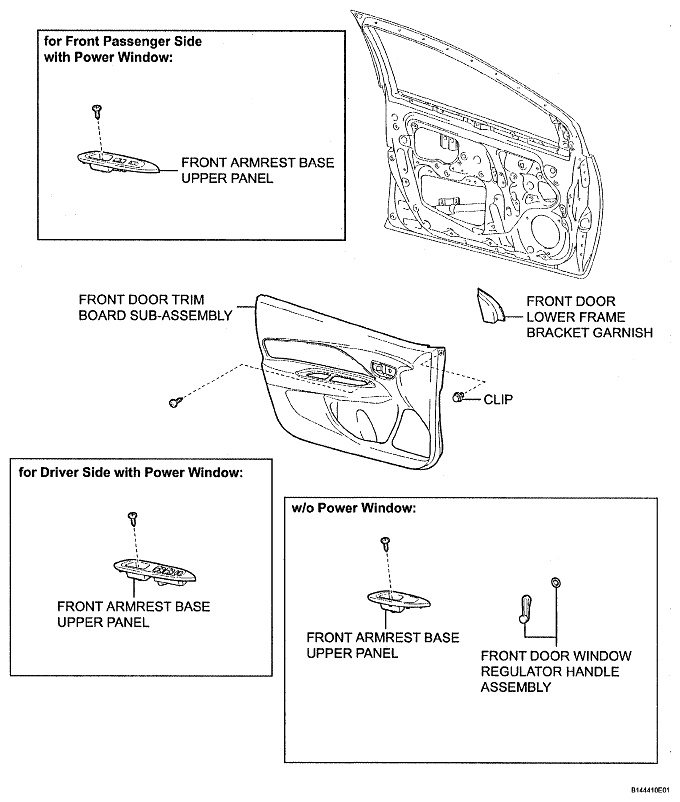

Fig 1: Identifying Front Door Lock (For Sedan) Components Location (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Front Door Lock (For Sedan) Replacement Components With Torque Specifications (2 Of 3)

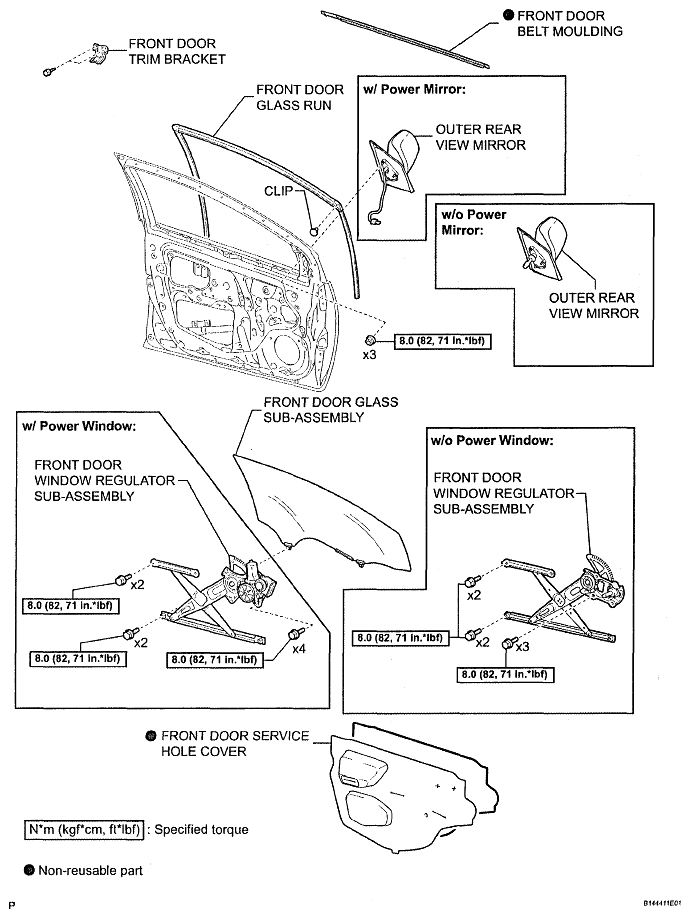

Fig 3: Front Door Lock (For Sedan) Replacement Components With Torque Specifications (3 Of 3)
