DOOR CONTROL SWITCH (for Hatchback Driver Door Side): Inspection
WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

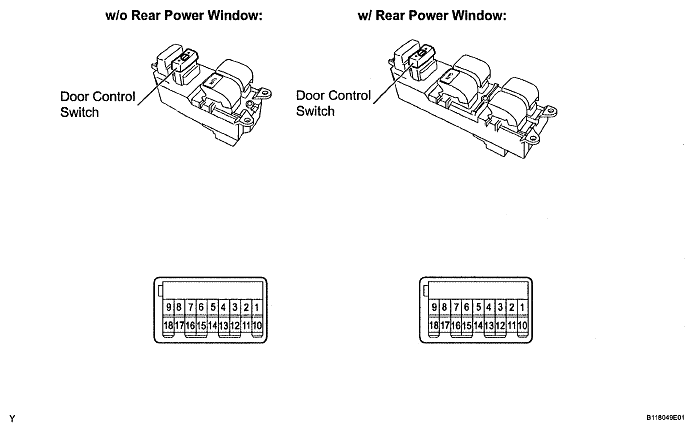

- Check the resistance of the door lock switch.
- Using an ohmmeter, measure the resistance and check the results in accordance with the value(s) in the table below.
Standard Resistance:
w/ Rear power window
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Switch Condition Specified Condition 1-2 Locked Below 1 Ω - OFF 10 kΩ or higher 1-9 Unlocked Below 1 Ω If the result is not as specified, replace the power window regulator master switch.
Standard Resistance:
w/o Rear power window
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Switch Condition Specified Condition 1-7 Locked Below 1 Ω - OFF 10 kΩ or higher 7-9 Unlocked Below 1 Ω If the result is not as specified, replace the power window regulator master switch.
- Using an ohmmeter, measure the resistance and check the results in accordance with the value(s) in the table below.
- Check the resistance of the door lock switch.
