Section 184 (Starting System (2GR-FE)): Starter: Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE BATTERY CLAMP SUB-ASSEMBLY
    1. Loosen the bolt and nut, and remove the battery clamp.
  3. REMOVE BATTERY INSULATOR
  4. REMOVE BATTERY
  5. REMOVE BATTERY TRAY
  6. REMOVE FRONT BATTERY CARRIER
    1. Disconnect the 2 clamps of the engine wire.
    2. Remove the 4 bolts and front battery carrier.

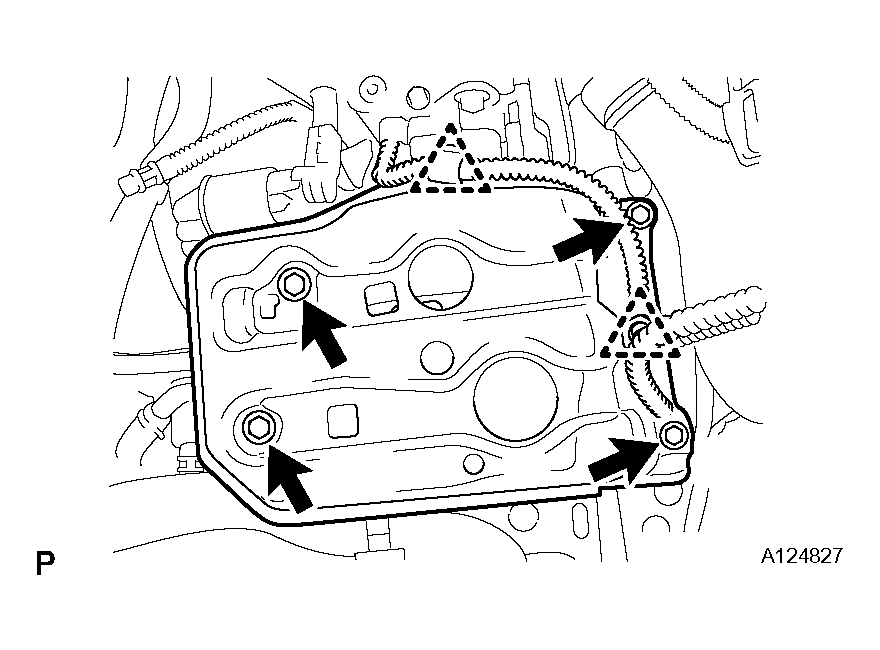

      Fig 1: Removing Front Battery Carrier
      G04486070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE BATTERY BRACKET REINFORCEMENT
    1. Remove the 2 bolts and battery bracket reinforcement.

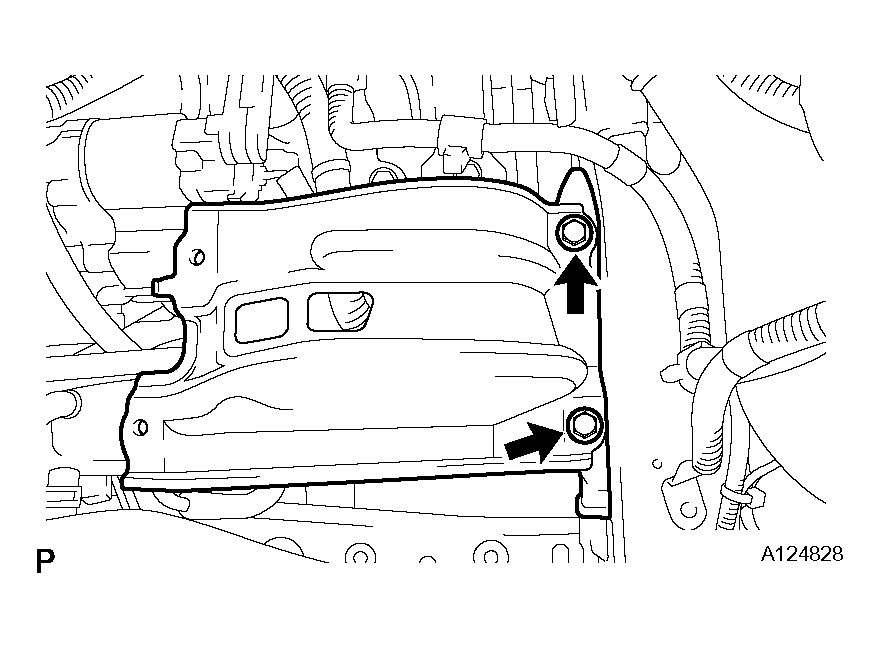

      Fig 2: Removing Battery Bracket Reinforcement
      G04486071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE STARTER ASSEMBLY
    1. Disconnect the starter connector.
    2. Open the terminal cap, remove the nut and disconnect the starter wire.

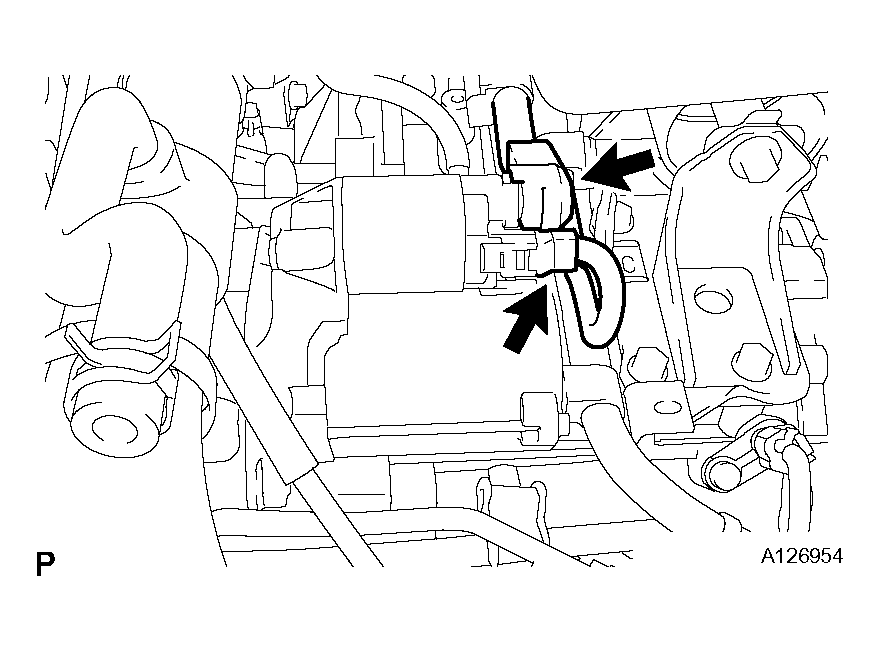

      Fig 3: Disconnecting Starter Connectors
      G04486072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and starter.

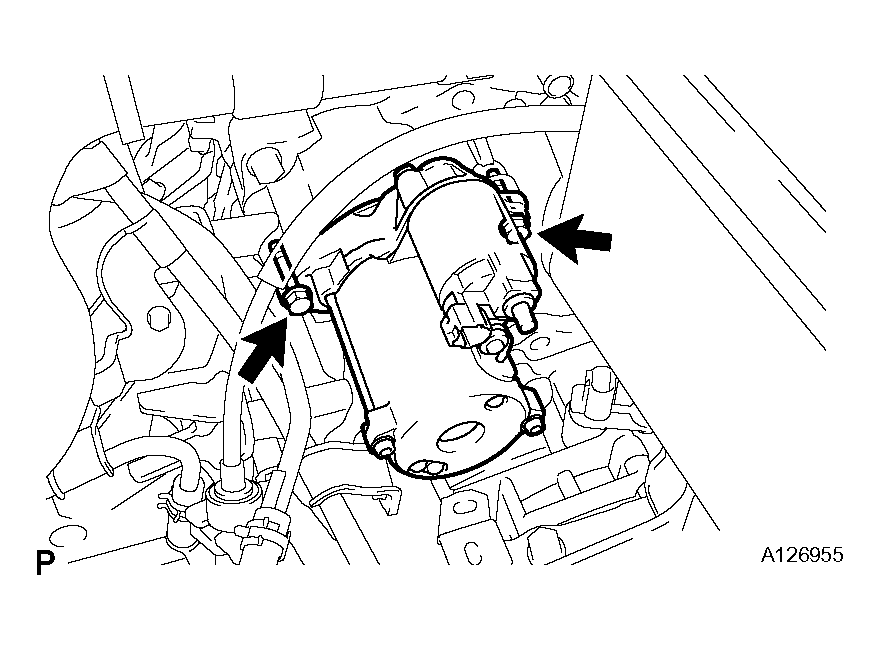

      Fig 4: Removing Starter
      G04486073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
