Section 184 (Starting System (2GR-FE)): Starter: Installation

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL STARTER ASSEMBLY
1. Install the starter with the 2 bolts.
  Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

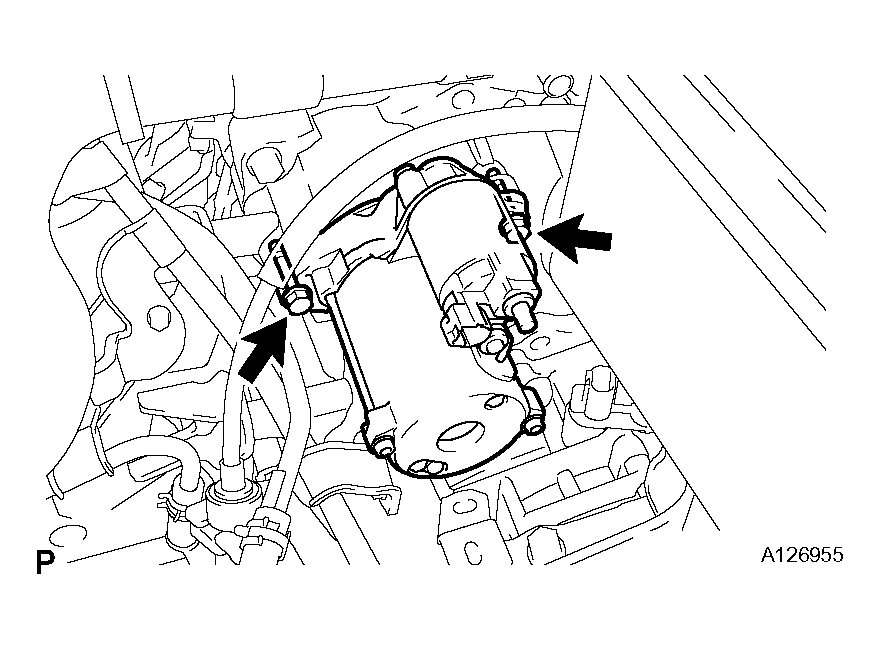

  Fig 1: Installing Starter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the starter connector.
3. Install the terminal nut and cover the nut with the cap.
  Torque: 9.8 N*m (100 kgf*cm, 88 in.*lbf)

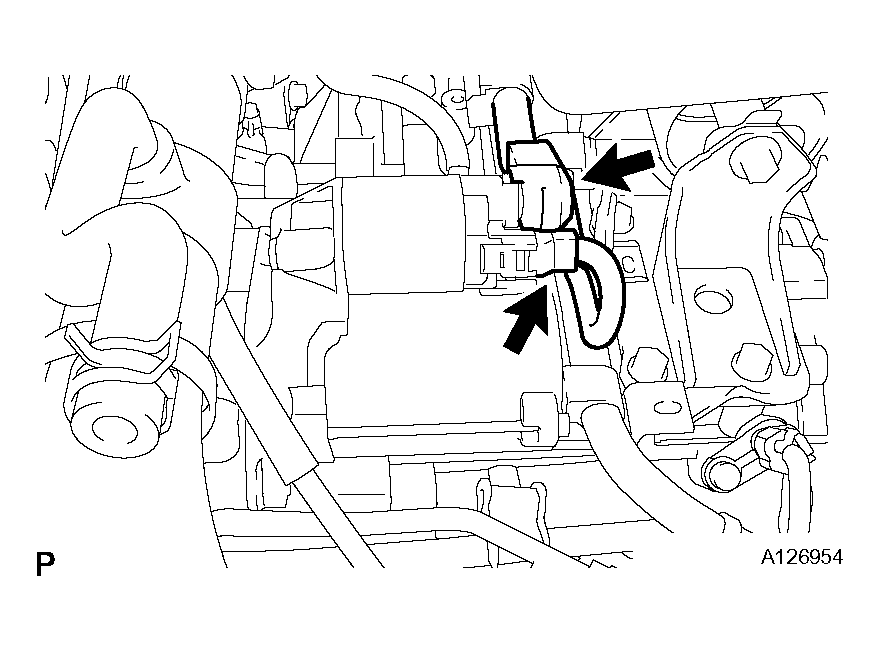

  Fig 2: Connecting Starter Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BATTERY BRACKET REINFORCEMENT
1. Install the battery bracket reinforcement with the 2 bolts.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

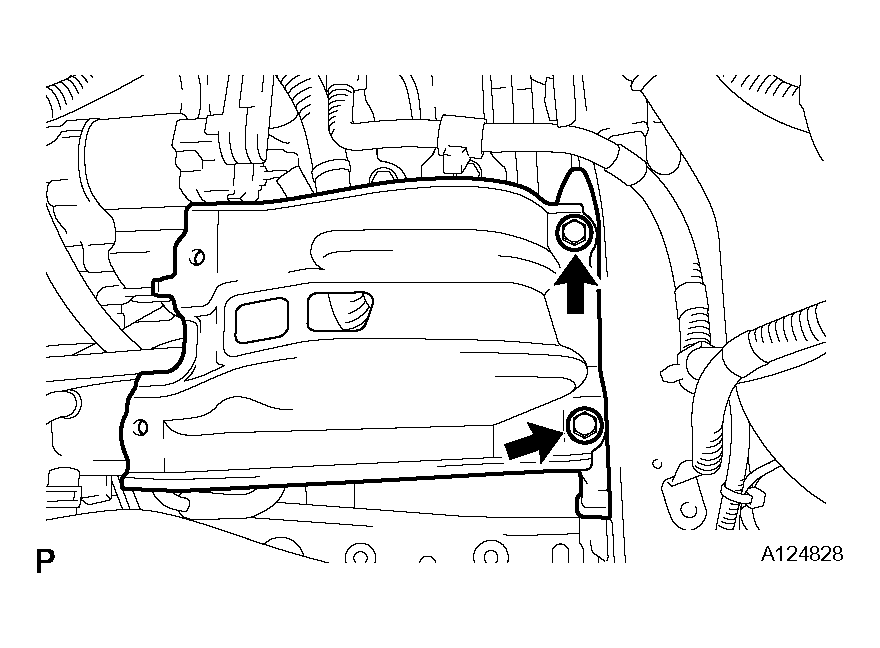

  Fig 3: Installing Battery Bracket Reinforcement
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT BATTERY CARRIER
1. Install the front battery carrier with the 4 bolts.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

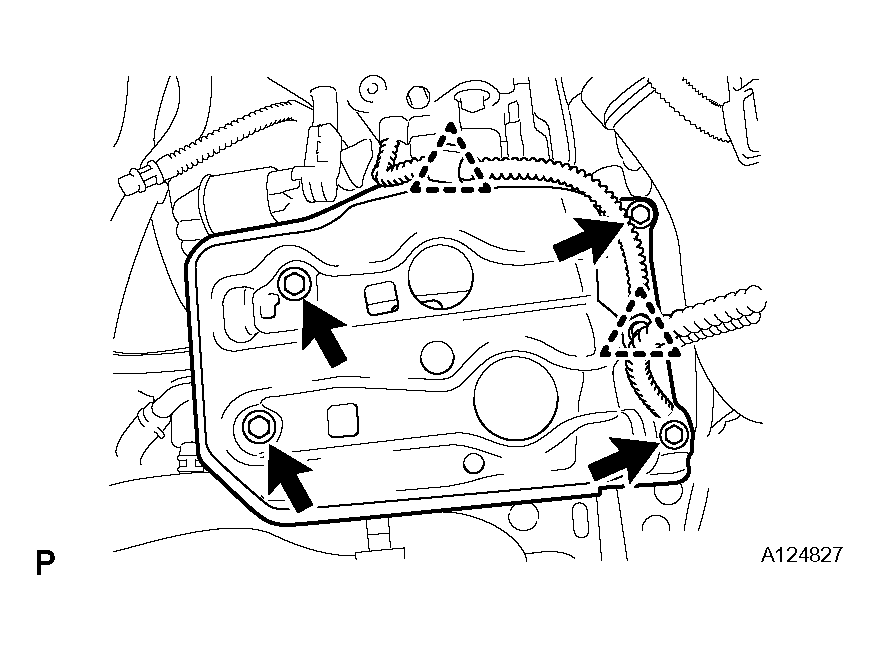

  Fig 4: Installing Battery Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 2 clamps of the engine wire.
INSTALL BATTERY TRAY
INSTALL BATTERY
INSTALL BATTERY INSULATOR
INSTALL BATTERY CLAMP SUB-ASSEMBLY
1. Install the battery clamp by tightening the bolt and nut.
  Torque:

  5.0 N*m (51 kgf*cm, 44 in.*lbf) for nut

  8.5 N*m (87 kgf*cm, 75 in.*lbf) for bolt
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
