Ignition Switch: Installation

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL IGNITION SWITCH ASSEMBLY

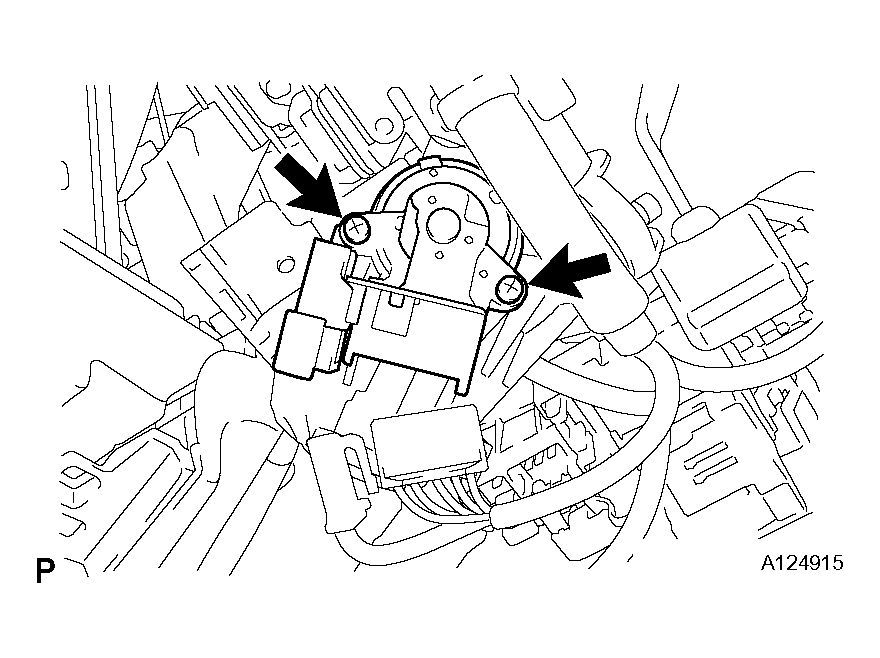

1. Install the ignition switch with the 2 screws.

  Fig 1: Installing Ignition Switch Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

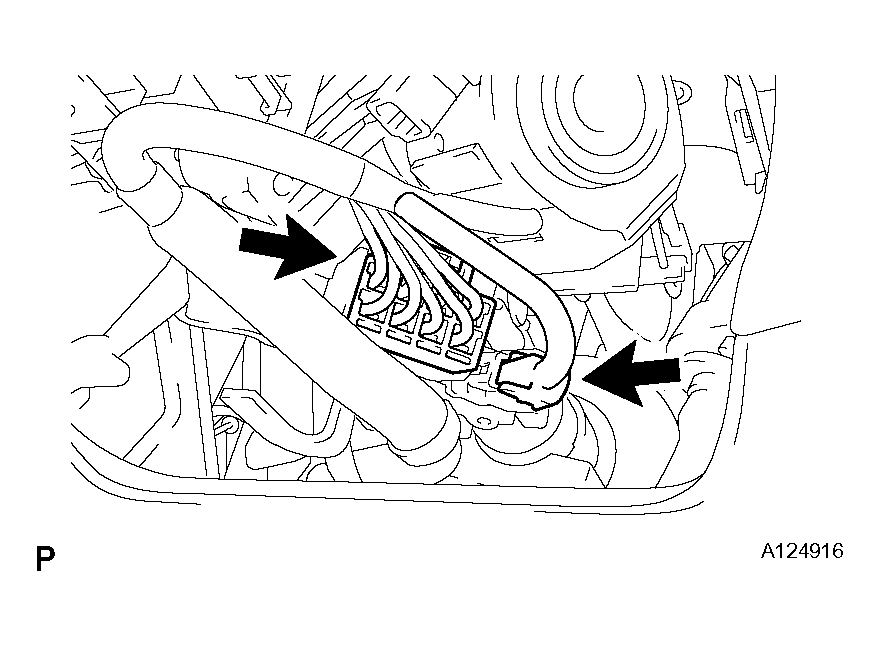

2. Connect the ignition key cylinder light connector.
3. Connect the ignition switch connector.

  Fig 2: Installing Ignition Switch Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING COLUMN COVER LOWER
1. Install the steering column cover lower.

  Fig 3: Installing Lower Steering Column Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
