Inspection Procedure

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FOR DTC
1. Delete the DTC (see DIAGNOSIS SYSTEM ).
2. Recheck for DTC.
  OK: B2799 output does not reoccur.
OK: NORMAL

NG: GO TO NEXT STEP.

CHECK WIRE HARNESS (TRANSPONDER KEY ECU - ECM)

Disconnect the E46 ECU connector.
Disconnect the A9 ECM connector.

Measure the resistance of the wire harness side connectors.

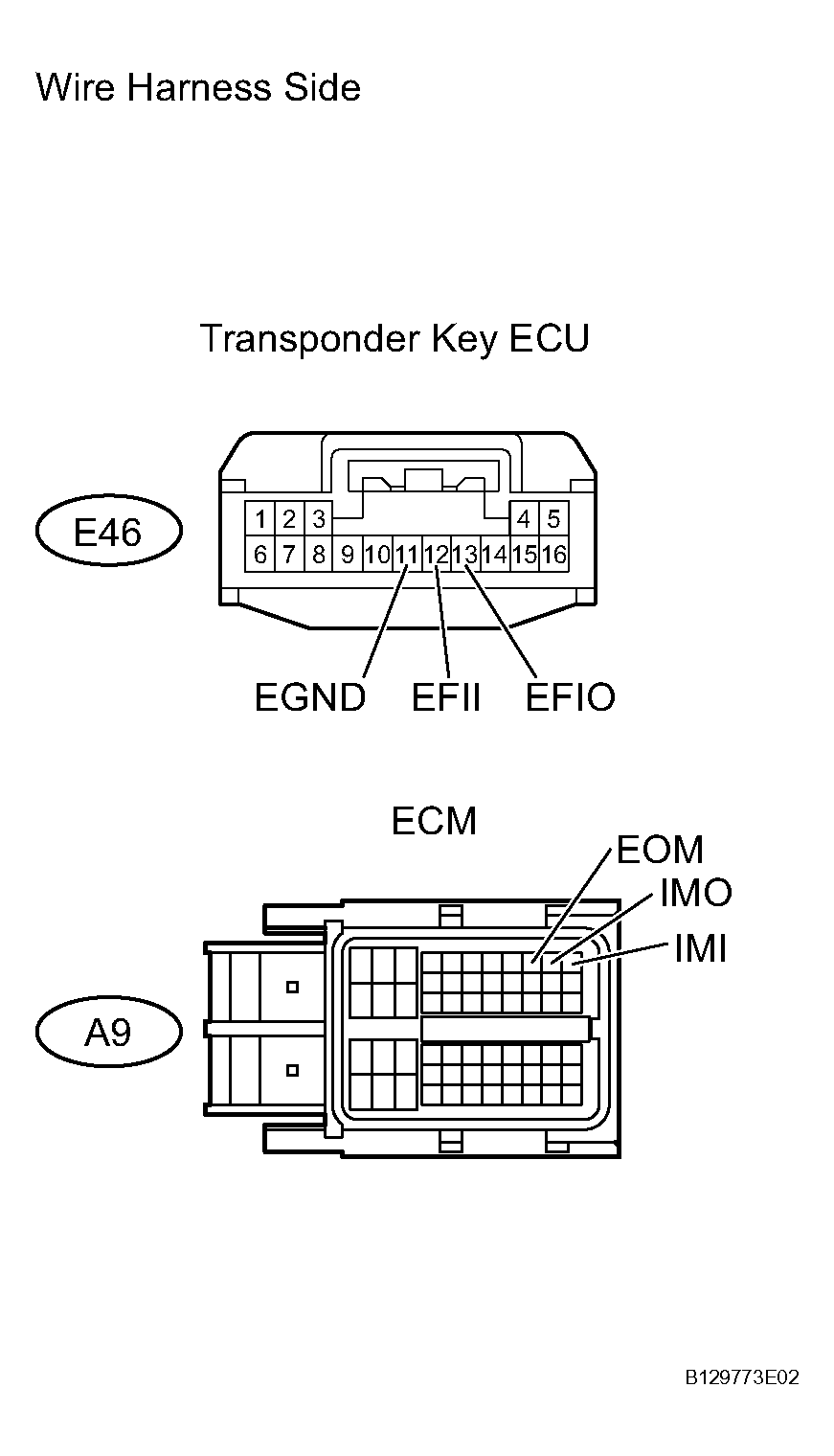

Fig 1: Disconnecting E46 ECU & A9 ECM Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard resistance

WIRE HARNESS (TRANSPONDER KEY ECU - ECM)

Tester Connection	Specified Condition
E46-13 (EFIO) - A9-11 (IMI)	Below 1 Ω
E46-12 (EFII) - A9-10 (IMO)
E46-11 (EGND) - A9-9 (EOM)
E46-13 (EFIO) or A9-11 (IMI) - Body ground	10 kΩ or higher
E46-12 (EFII) or A9-10 (IMO) - Body ground	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: GO TO NEXT STEP.

CHECK TRANSPONDER KEY ECU (OPERATION)
1. Temporarily replace the transponder key ECU with a new or normally functioning one.
2. Check that then engine starts normally.
  OK: Engine starts normally.
NG: REPLACE ECM

OK: END (TRANSPONDER KEY ECU IS DEFECTIVE)
