Roof Rack: Components

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

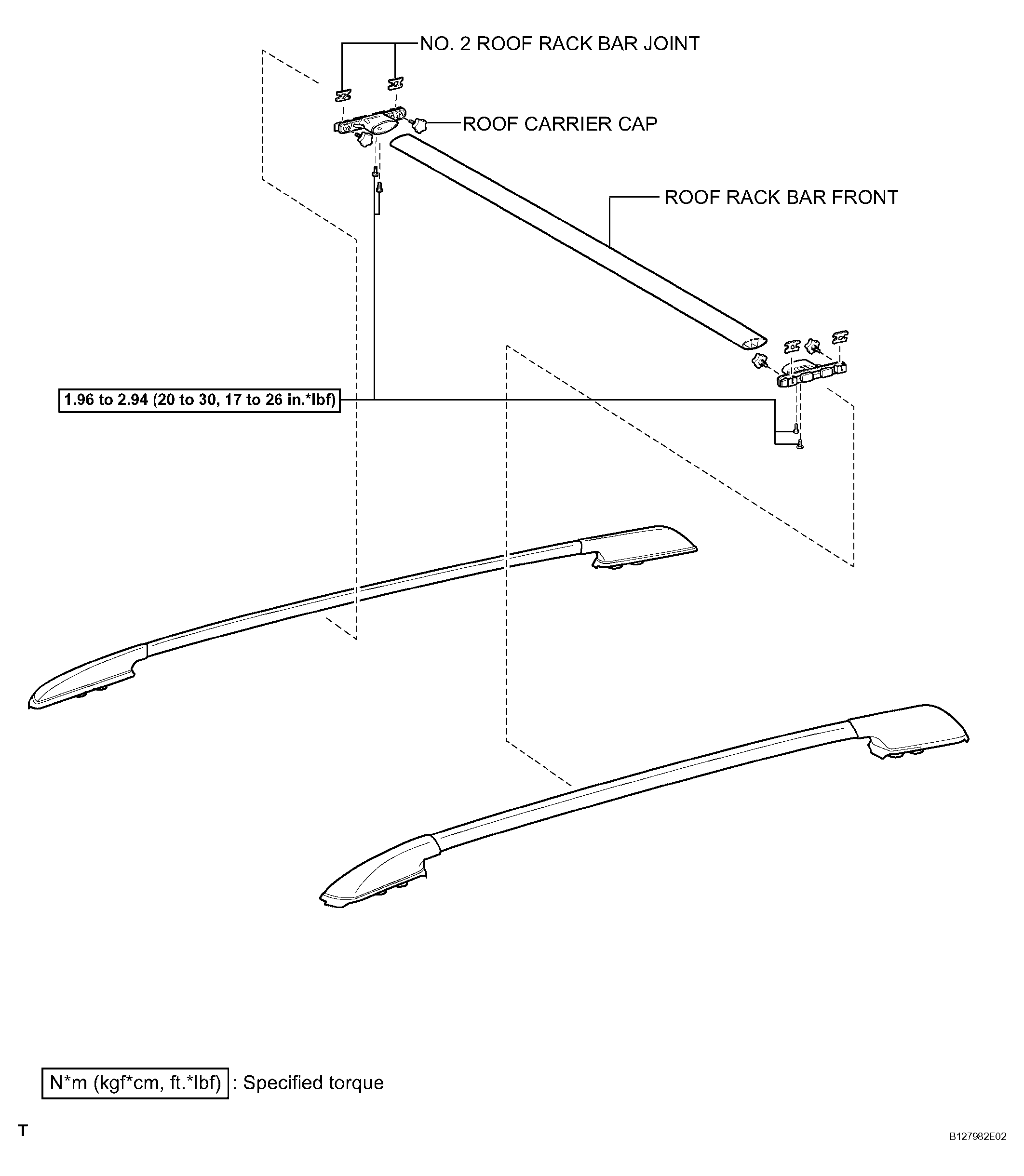

Fig 1: Roof Rack Replacement Components & Torque Specification (1 Of 2)
G04492286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

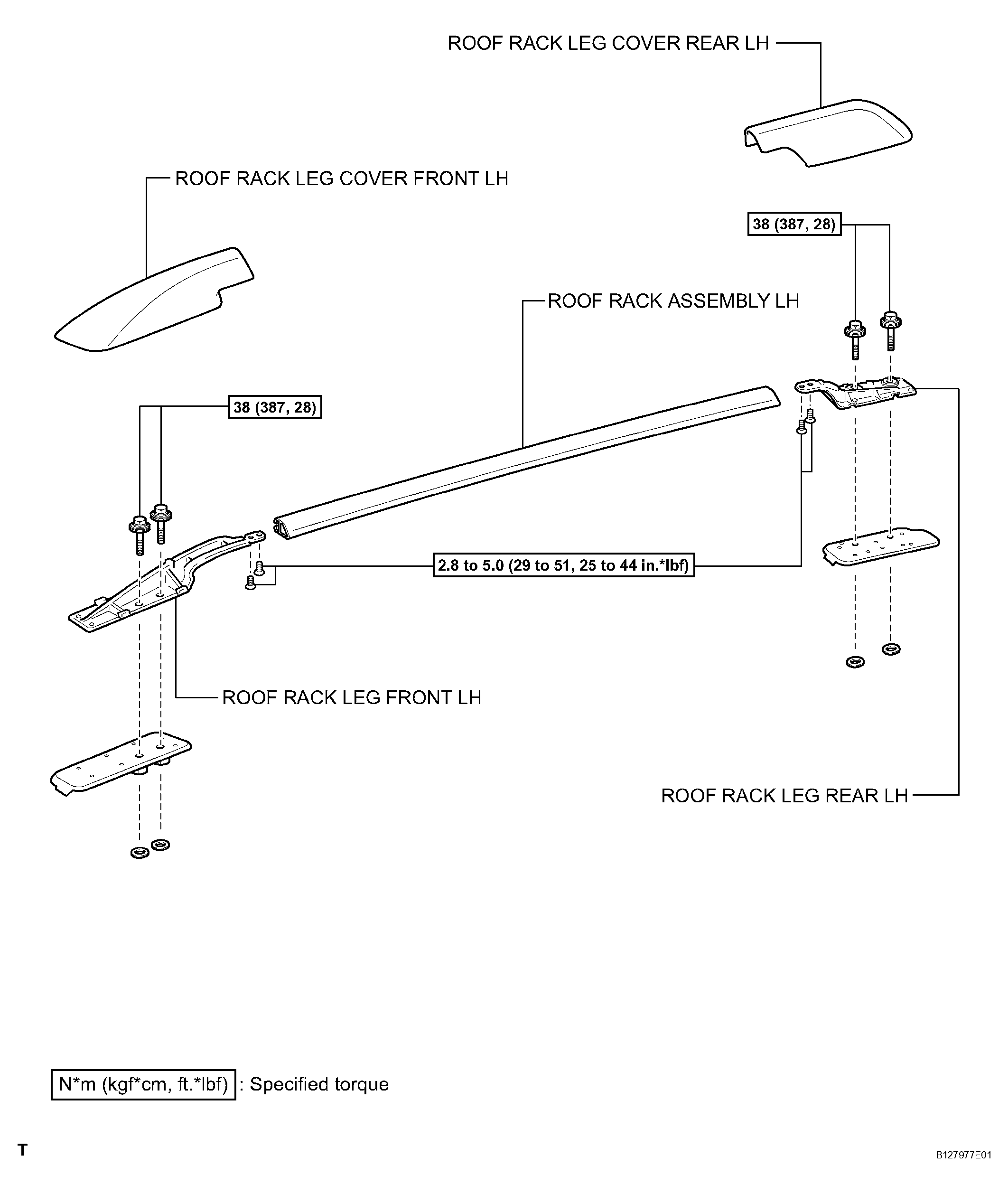

Fig 2: Roof Rack Replacement Components With Torque Specifications (2 Of 2)
G04492287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
