Rear Door Belt Moulding: Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE REAR DOOR ARMREST BASE PANEL UPPER LH (See DISASSEMBLY )
REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH (See DISASSEMBLY )
REMOVE REAR DOOR BELT MOULDING ASSEMBLY LH
1. Put protective tape under the belt moulding.
2. Using a moulding remover, detach the claws to remove the belt moulding as shown in the illustration.
  HINT:

  Tape the remover tip before use.

  NOTE: Be careful when removing the belt moulding as there are claws attached to the front and rear ends of the belt moulding.

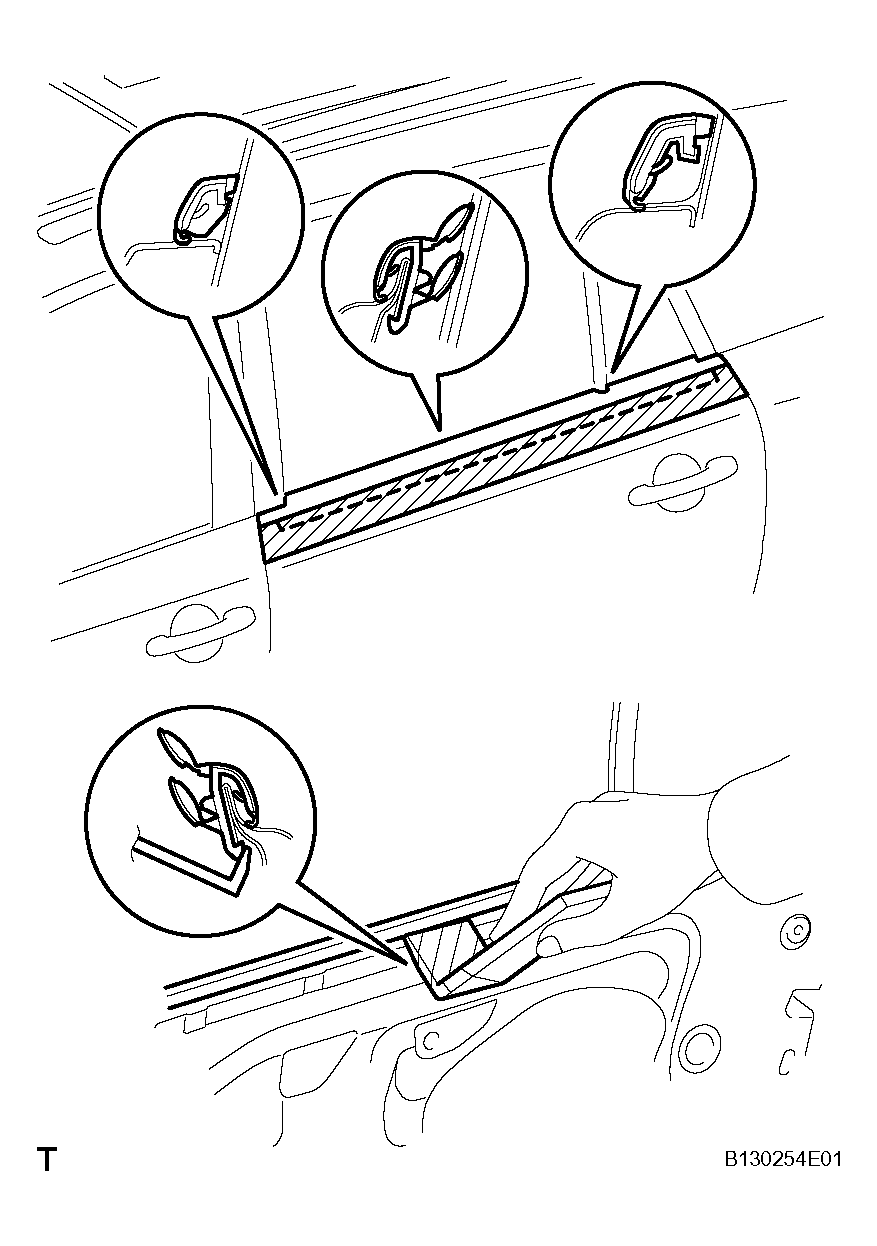

  Fig 1: Removal/Installation Of Rear Door Belt Moulding Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
